Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

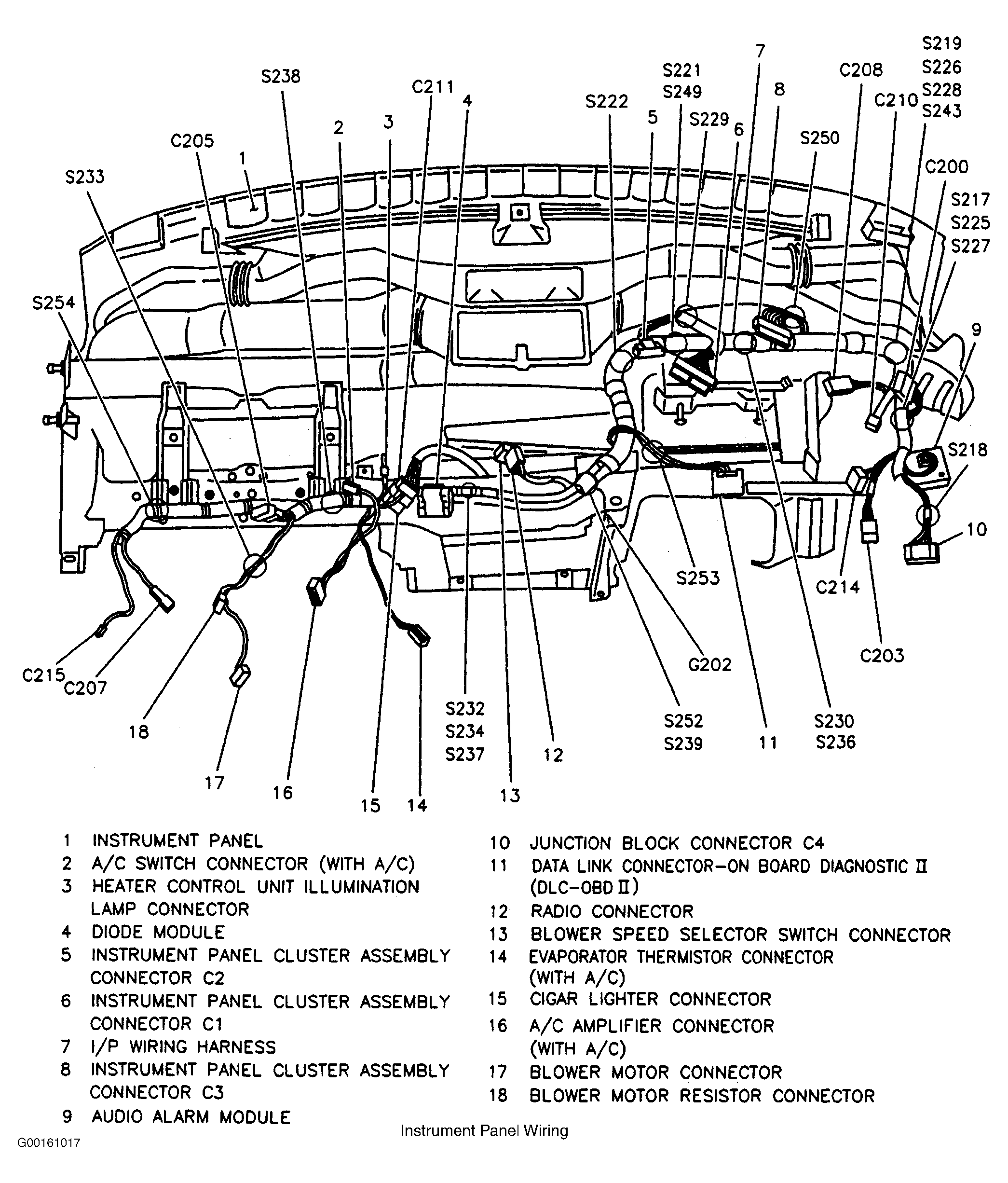

| Data Link Connector (DLC) | Below Driver Side Of Instrument Panel, Near Center Console. See Fig 1 |

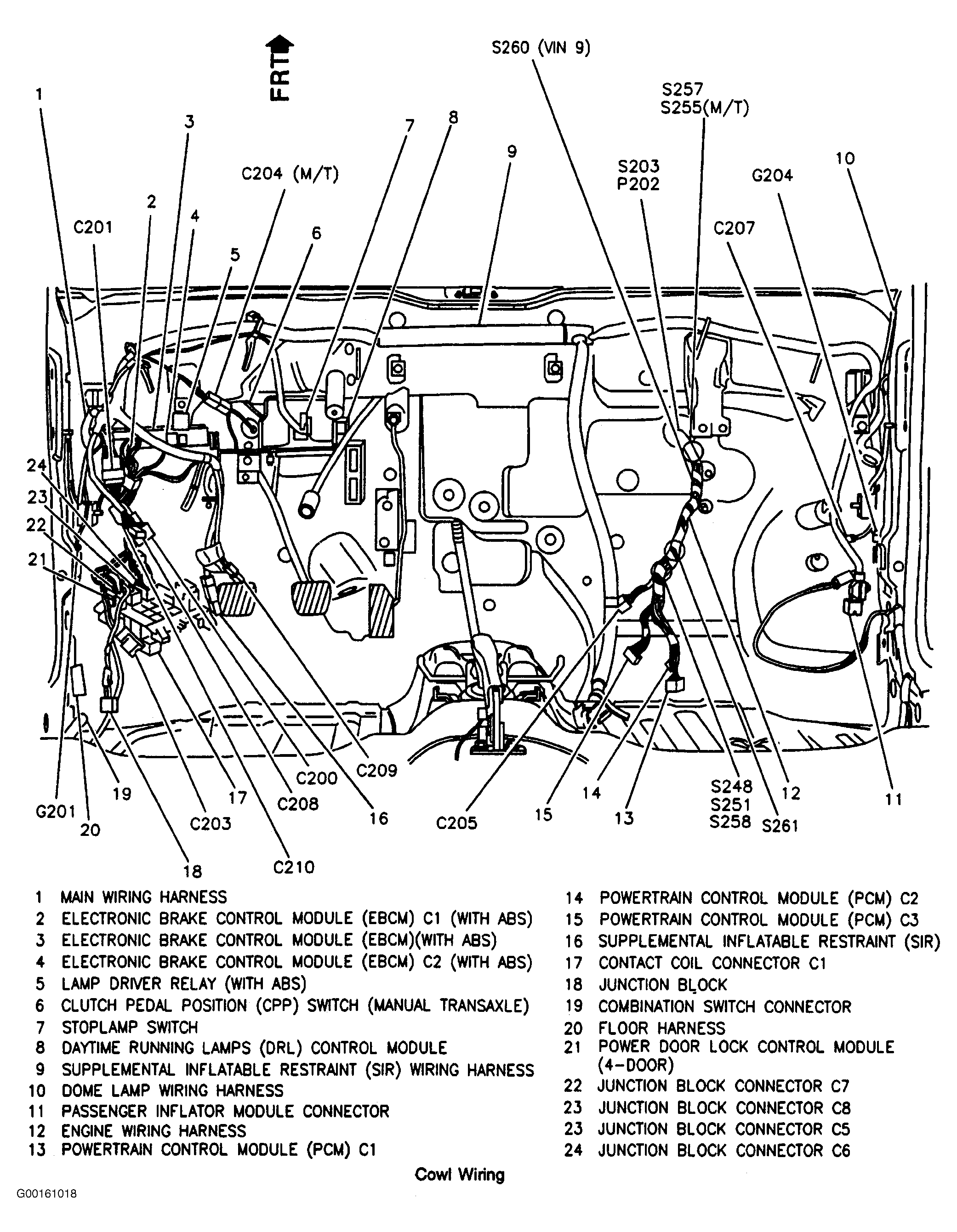

| Electronic Brake Control Module (EBCM) | Behind Driver Side Of Instrument Panel, Above Junction Block. See Fig 2 |
| Junction Block | Driver Side Of Instrument Panel. See Fig 2 |

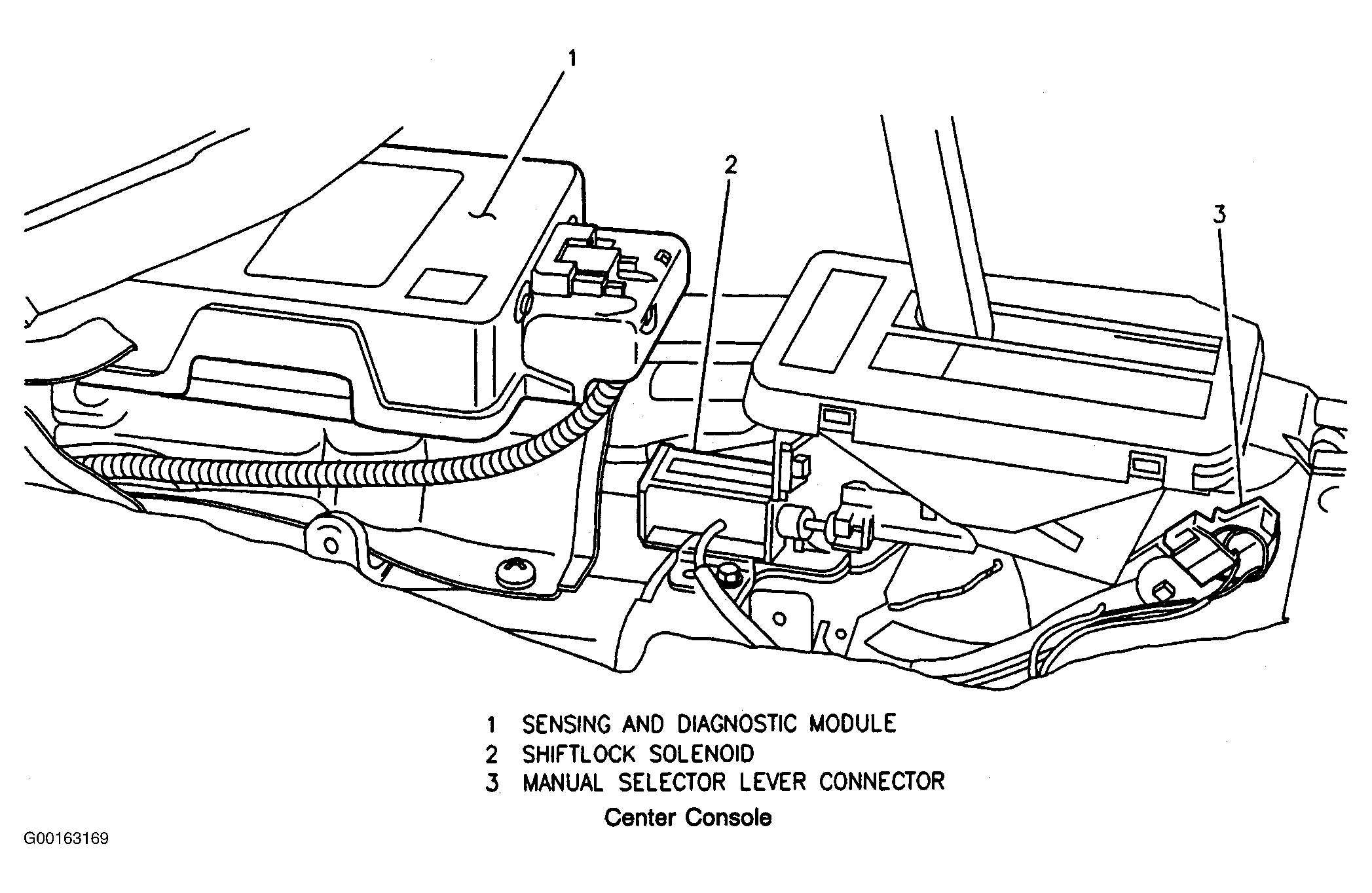

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Center Of Console. See Fig 3 |
| Powertrain Control Module (PCM) | Passenger Side Of Instrument Panel, Near Glove Box |

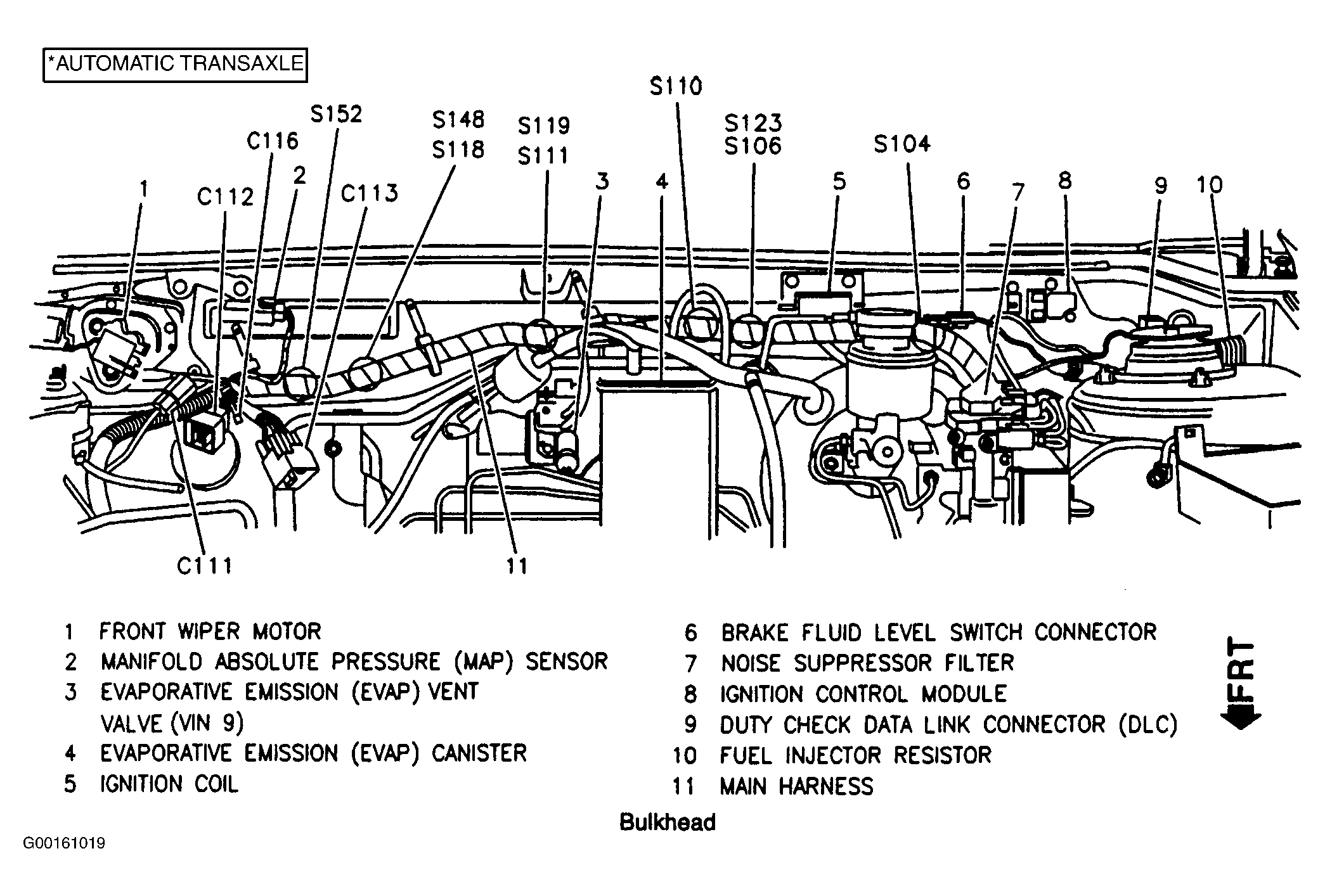

| C113 (16 Terminals) | Main Harness To Engine Harness, Passenger Rear Of Engine Compartment Near Bulkhead. See Fig 4 |
| C200 (12 Terminals) | Main Harness To Instrument Panel Harness, Behind Driver Side Of Instrument Panel Near Junction Block. See Fig 1 & Fig 2 |
| C205 (12 Terminals) | Instrument Panel Harness To Engine Harness, Behind Passenger Side Of Instrument Panel Near PCM. See Fig 1 & Fig 2 |
| C210 (5 Terminals) | SDM Harness To Instrument Panel Harness, Behind Driver Side Of Instrument Panel Near Junction Block. See Fig 1 & Fig 2 |

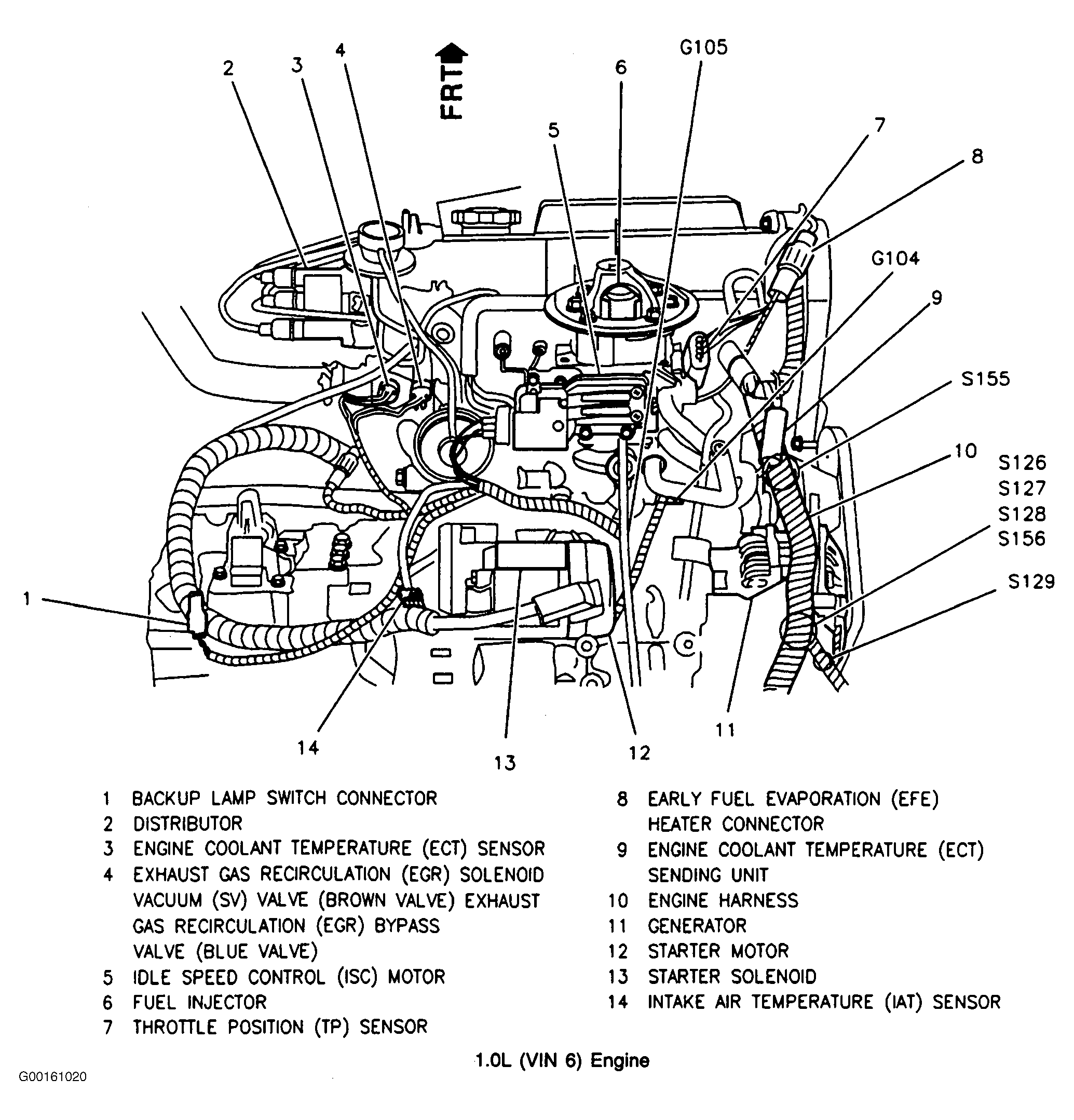

| G105 (VIN 6) | Center Rear Of Engine, On Intake Manifold. See Fig 5 |

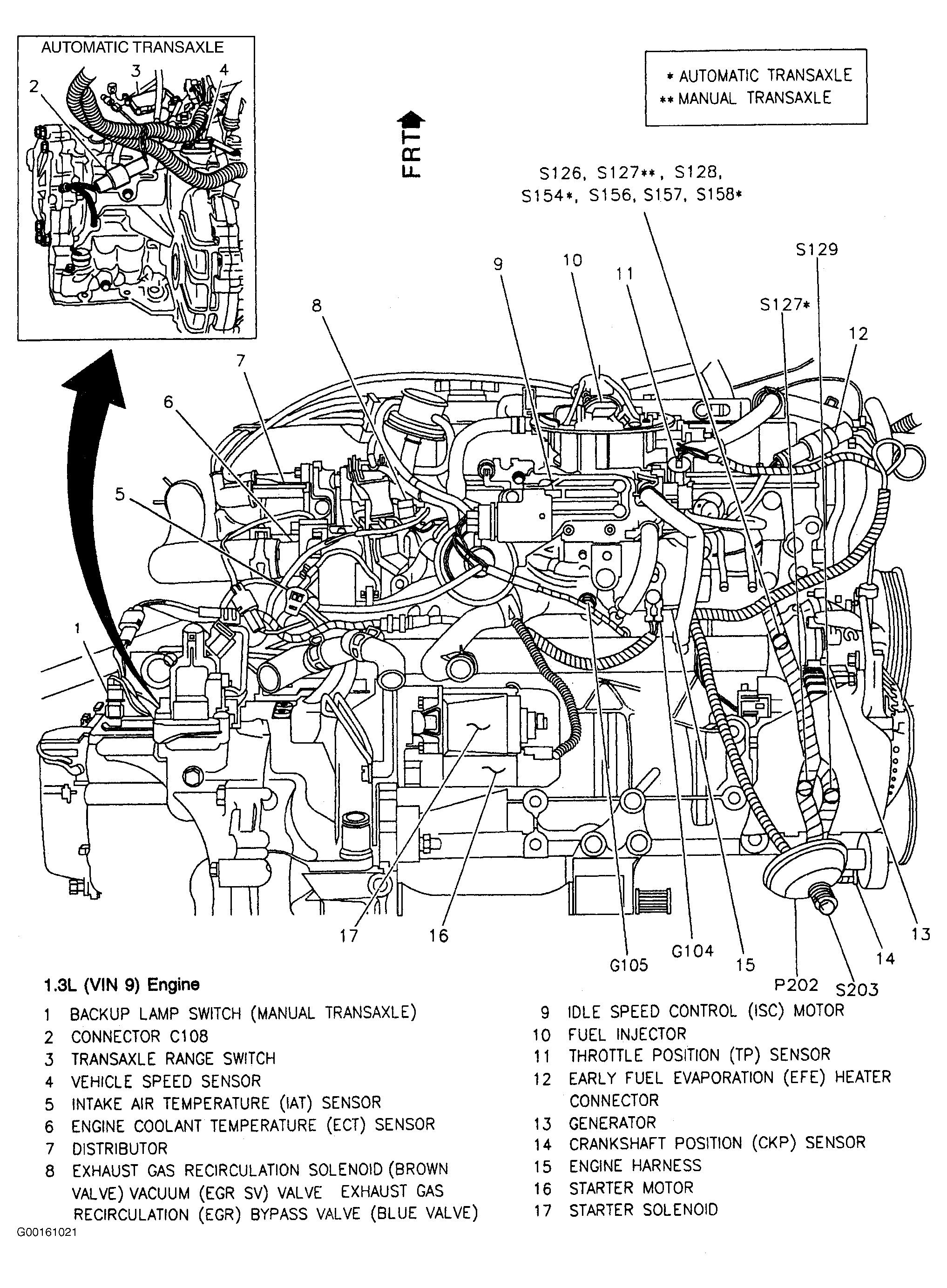

| G105 (VIN 9) | Center Rear Of Engine, On Intake Manifold. See Fig 6 |
| G203 | Junction Block Case Ground, Under Driver Side Of Instrument Panel |
| S111 | Main Harness, Near C113 Breakout. See Fig 4 |
| S222 | Instrument Panel Harness, Near DLC Breakout. Fig 1 |
| S235 | Instrument Panel Harness, Near C200 Breakout |
| S236 | Instrument Panel Harness, Near Instrument Cluster C3 Breakout. See Fig 1 |
| S237 | Instrument Panel Harness, Near Radio Connector Breakout. See Fig 1 |
| S240 | Instrument Panel Harness, Near DLC Breakout |
| S245 | Instrument Panel Harness, Near Instrument Cluster C3 Breakout. |
| S249 | Instrument Panel Harness, Near Instrument Cluster C2 Breakout. See Fig 1 |
