Prizm Base, Automatic
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
Data Link Communications Systems
›
Connector Identification
Connector Identification
Fig 1: Identifying DLC - OBD-II Terminals
Courtesy of GENERAL MOTORS CORP.

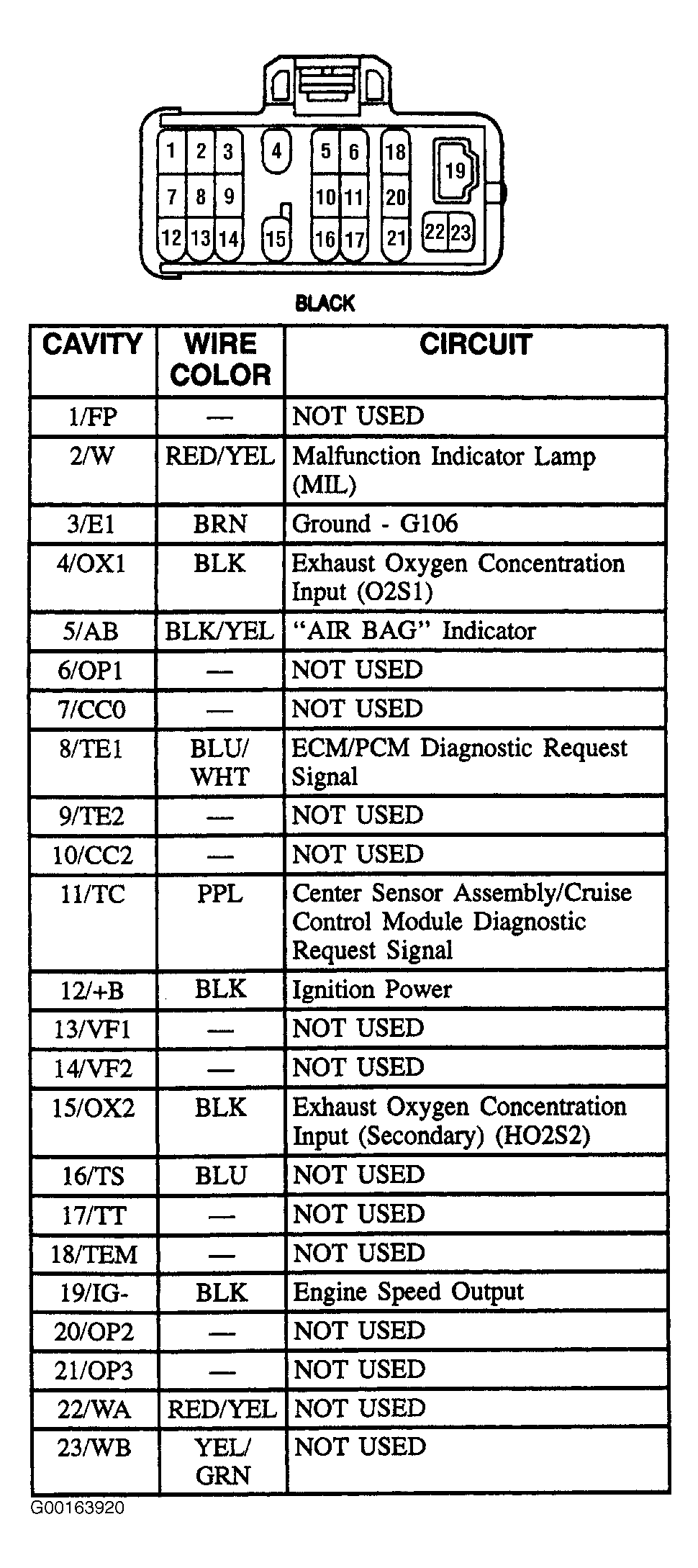

Fig 2: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
