Wiring Diagrams: Wiring Diagram

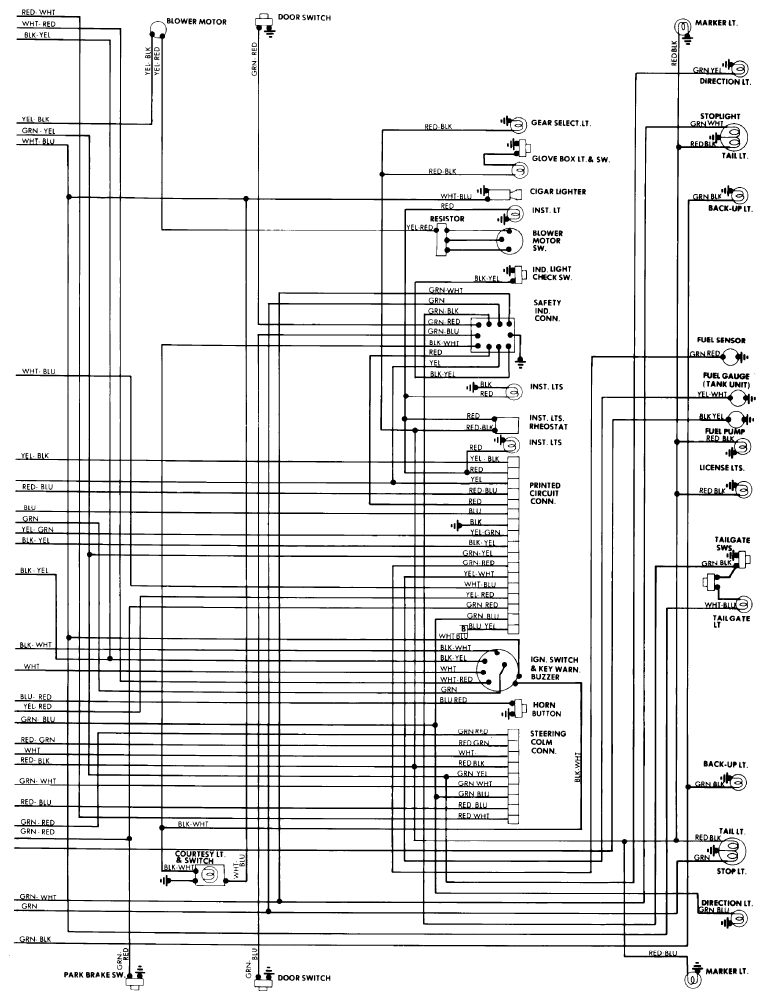

Fig 1: Wiring Diagram - Accord (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

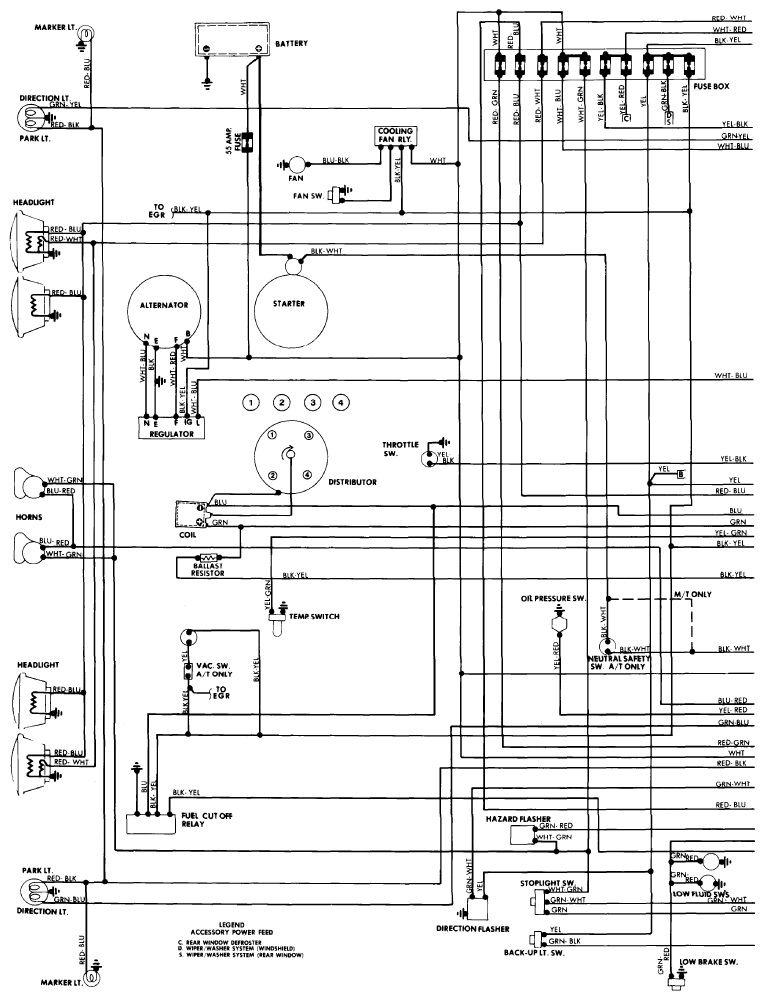

Fig 2: Wiring Diagram - Accord (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
