Combination Switch: Installation

To install, reverse removal procedure.

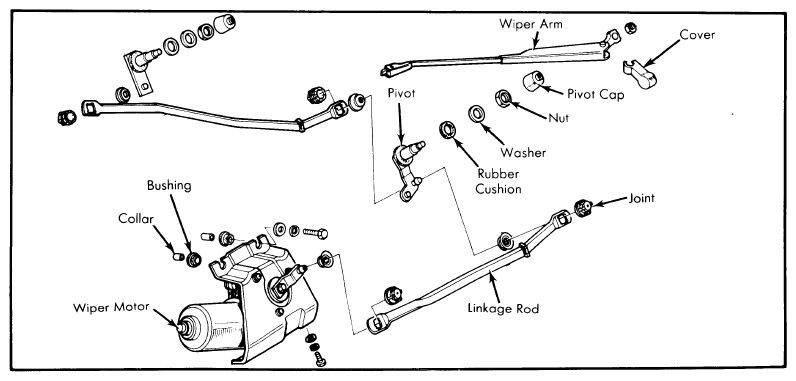

Fig 1: Exploded View of Honda Wiper Linkage (Accord Shown, Others Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

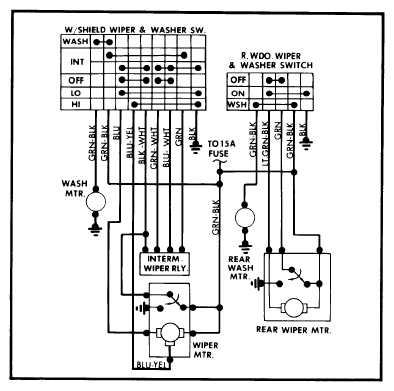

Fig 2: Honda Accord Wiper Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

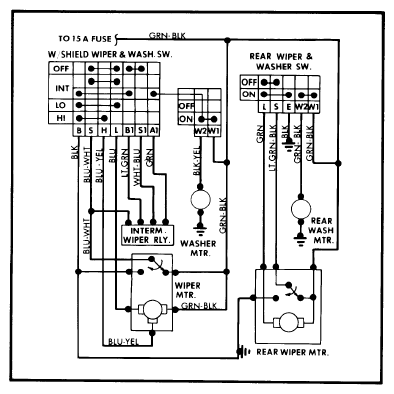

Fig 3: Honda Civic Wiper Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Honda Prelude Wiper Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
