Cruise Control Systems: Testing: Notes

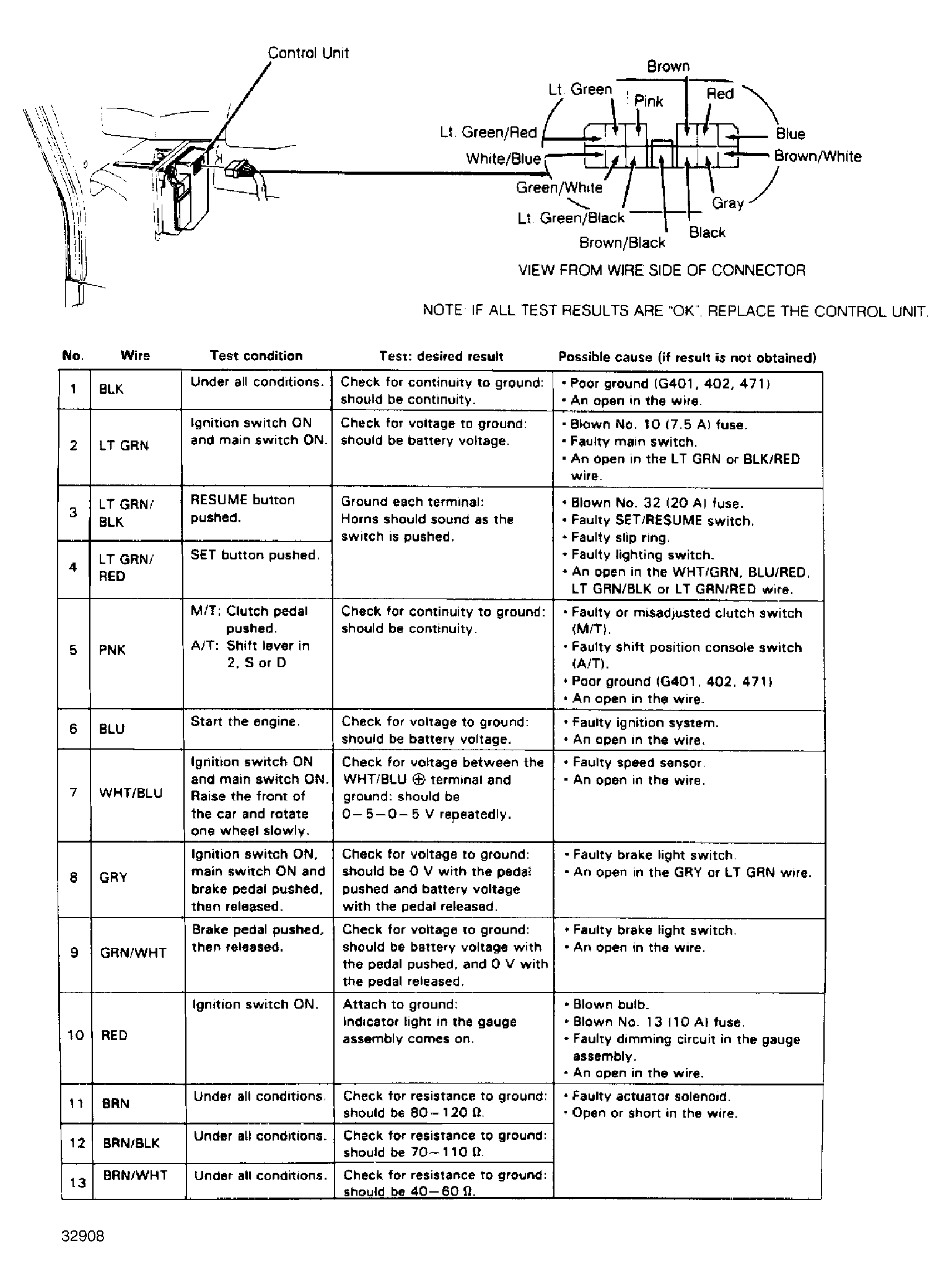

Fig 1: Prelude Control Unit Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
