Ignition System - TOYO DENSO Electronic: Overhaul: Reassembly

Install oil seal (if used), bearing, thrust washer and plate in housing. Lubricate shaft with molybdenum disulfide and install in housing. On fuel injected engines, install crank angle sensor and sensor housing.
On all models, install rotor and turn so it faces No. 1 cylinder mark on cap. See Fig 1. Install thrust washer and coupling on shaft. Ensure rotor still points toward No. 1 cylinder mark on cap, then align index mark on coupling with index mark on housing. Install roll pin and pin retainer.

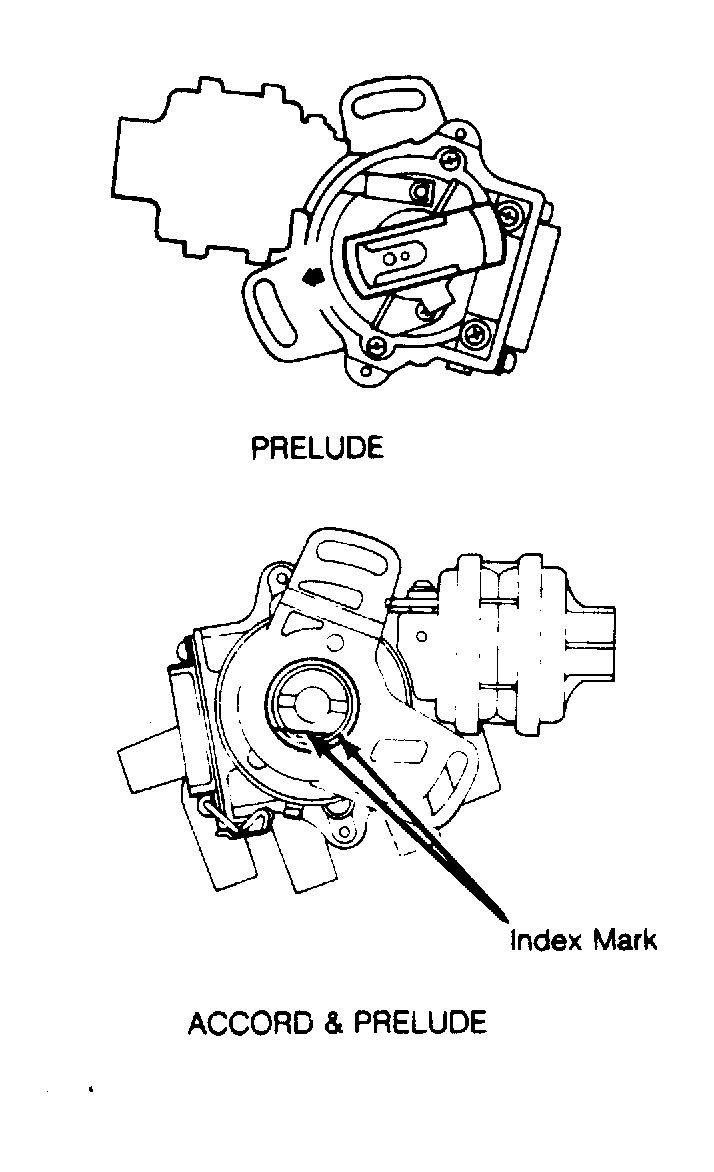

Fig 1: Distributor Shaft Installation Point rotor toward No. 1 cylinder mark on cap. Courtesy of American Honda Motor Co., Inc.
Install breaker plate assembly, stator and pick-up coil. Install ignitor and cover. Install reluctor with manufacturing code facing up. Install roll pin with its gap away from distributor shaft.
Check reluctor-to-stator air gap. Install diaphragm assembly. Crank engine until No. 1 piston is at TDC of compression stroke. Install a new "O" ring on distributor housing.
Install distributor, making sure lugs engage in camshaft groove. Install hold-down bolt and nut (if used). Install distributor cap and spark plug wires. Connect wiring and vacuum hoses. Start engine and adjust ignition timing.
