Control Unit

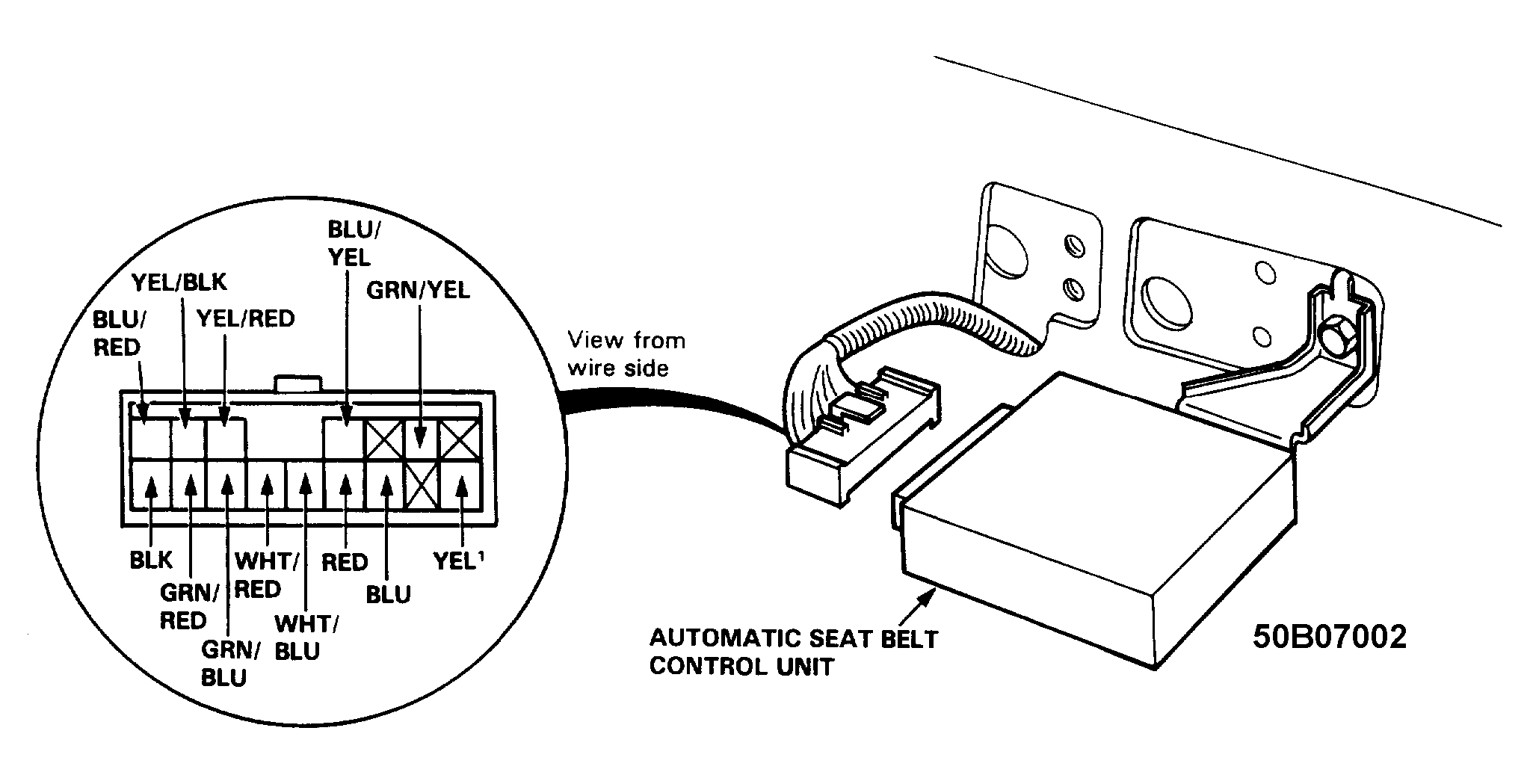

Disconnect the 16-Pin connectors from the control unit.
NOTE:
It may be necessary to remove right front seat assembly to disconnect 16-Pin connector from control unit.
To avoid damaging connectors, make tests from wire side. For continuity, use the 1-200 ohm scale on testers; for voltage tests, use 0-15 volt scale or greater.
