Trouble Shooting: Notes

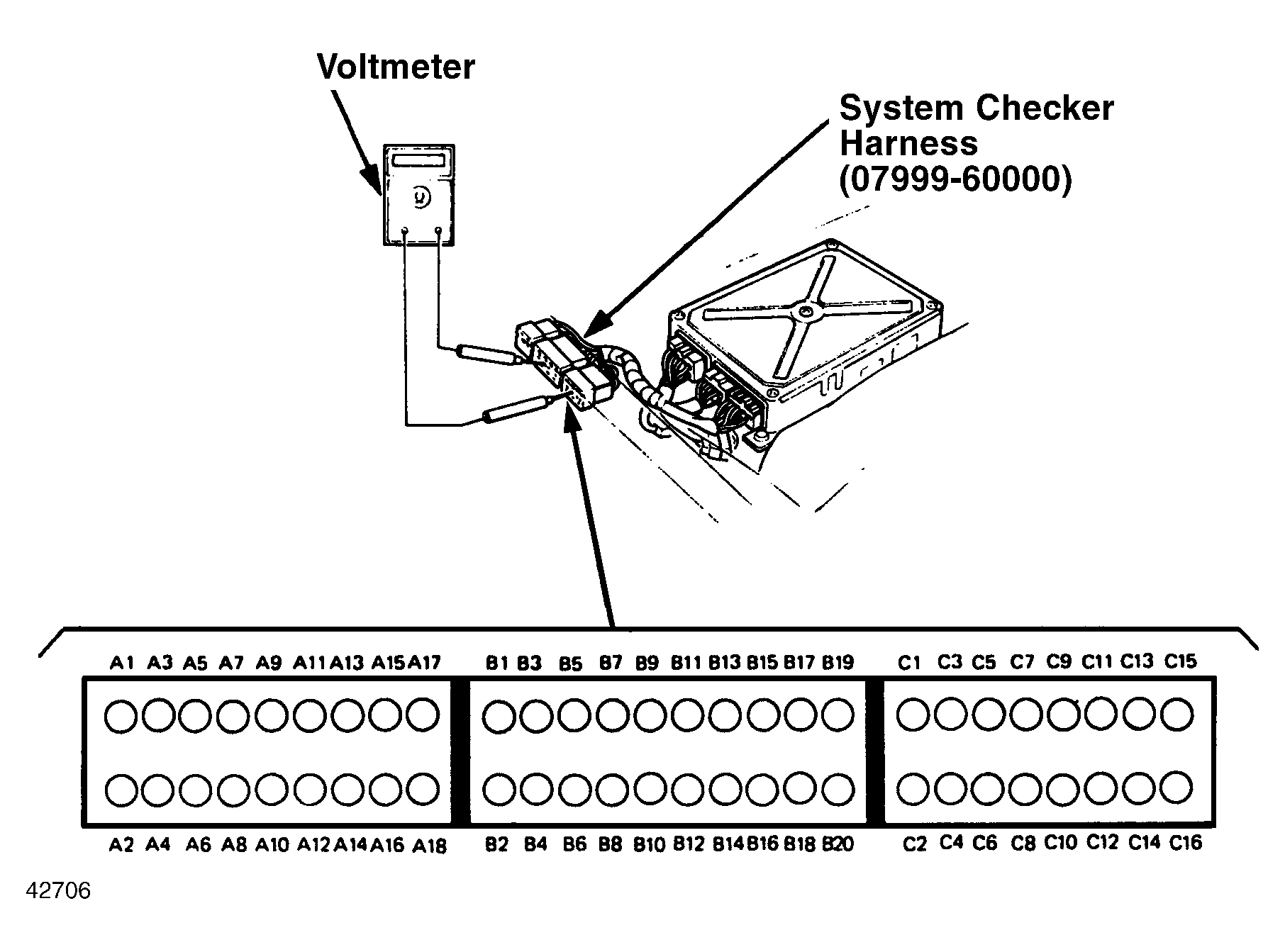

Fig 1: System Checker Harness (07999-PD60000A)

G42706

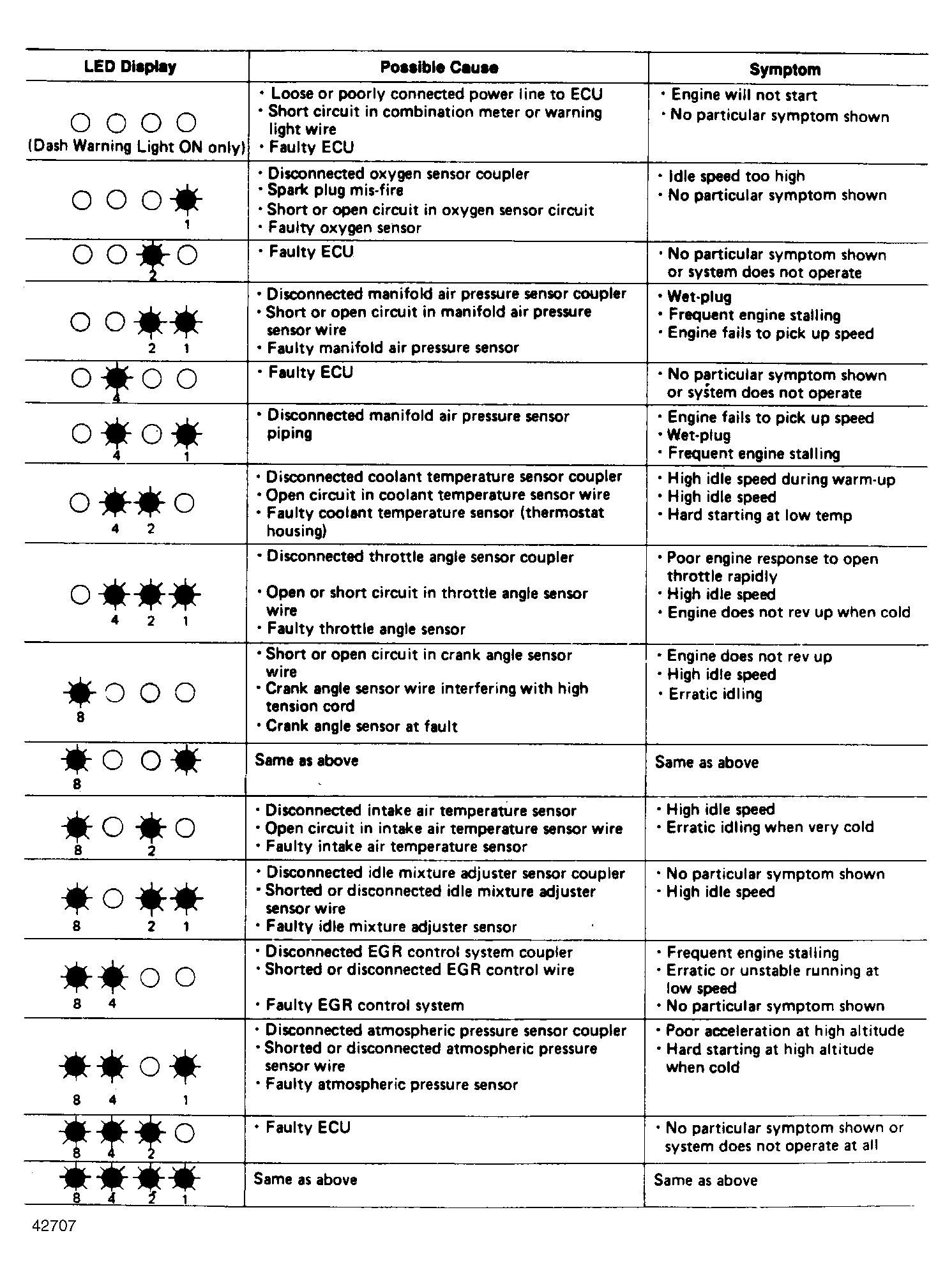

Fig 2: Honda EFI Trouble Shooting Chart - CRX

G42707

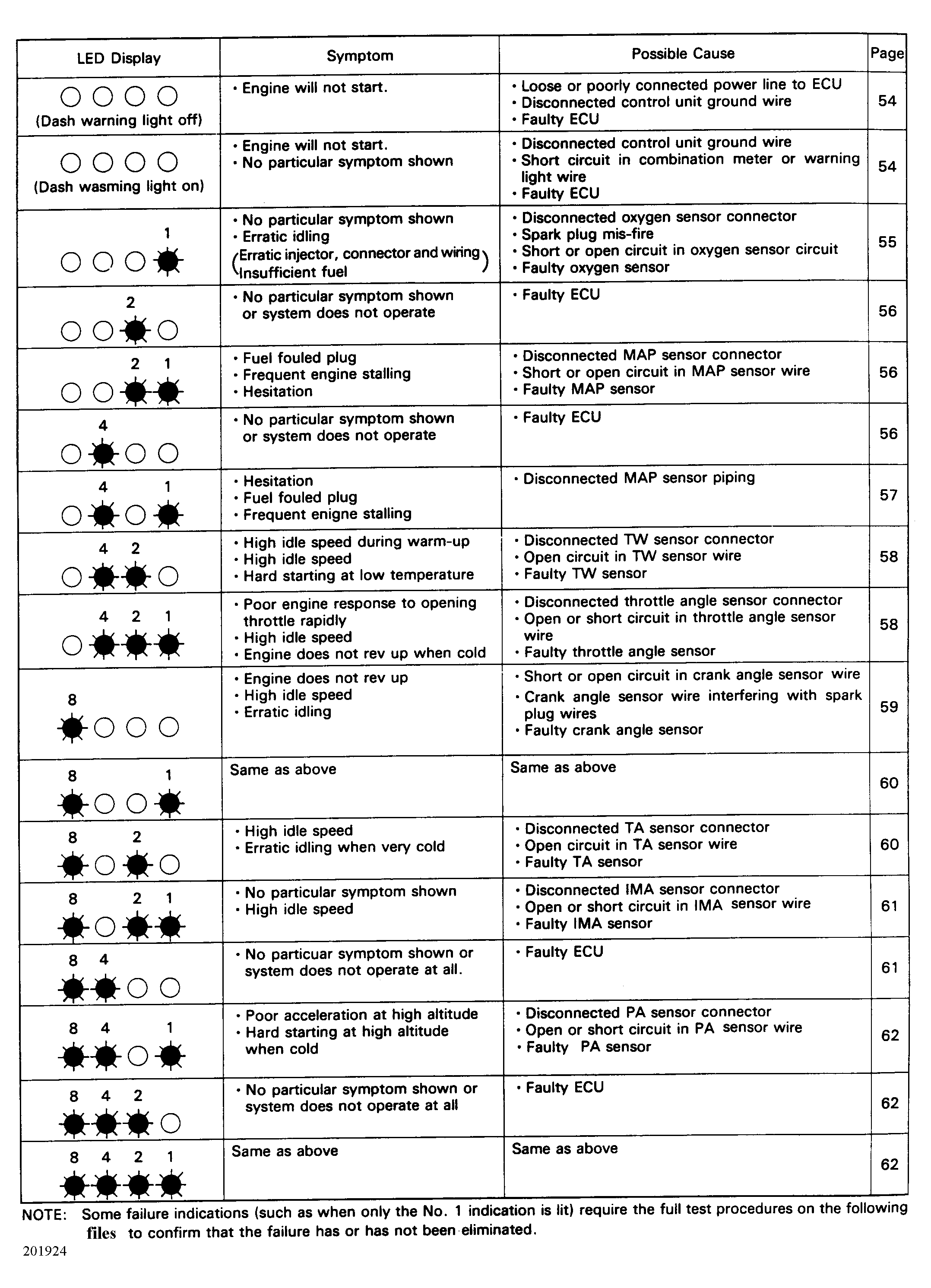

Fig 3: Honda EFI Trouble Shooting Chart - Prelude & Civic

G201924
