Wiring Diagrams

NOTE: Due to the fact that several different wires have the same color, a number suffix has been assigned to distinguish them (for example Green/Black and Green/Black(2) are not the same).

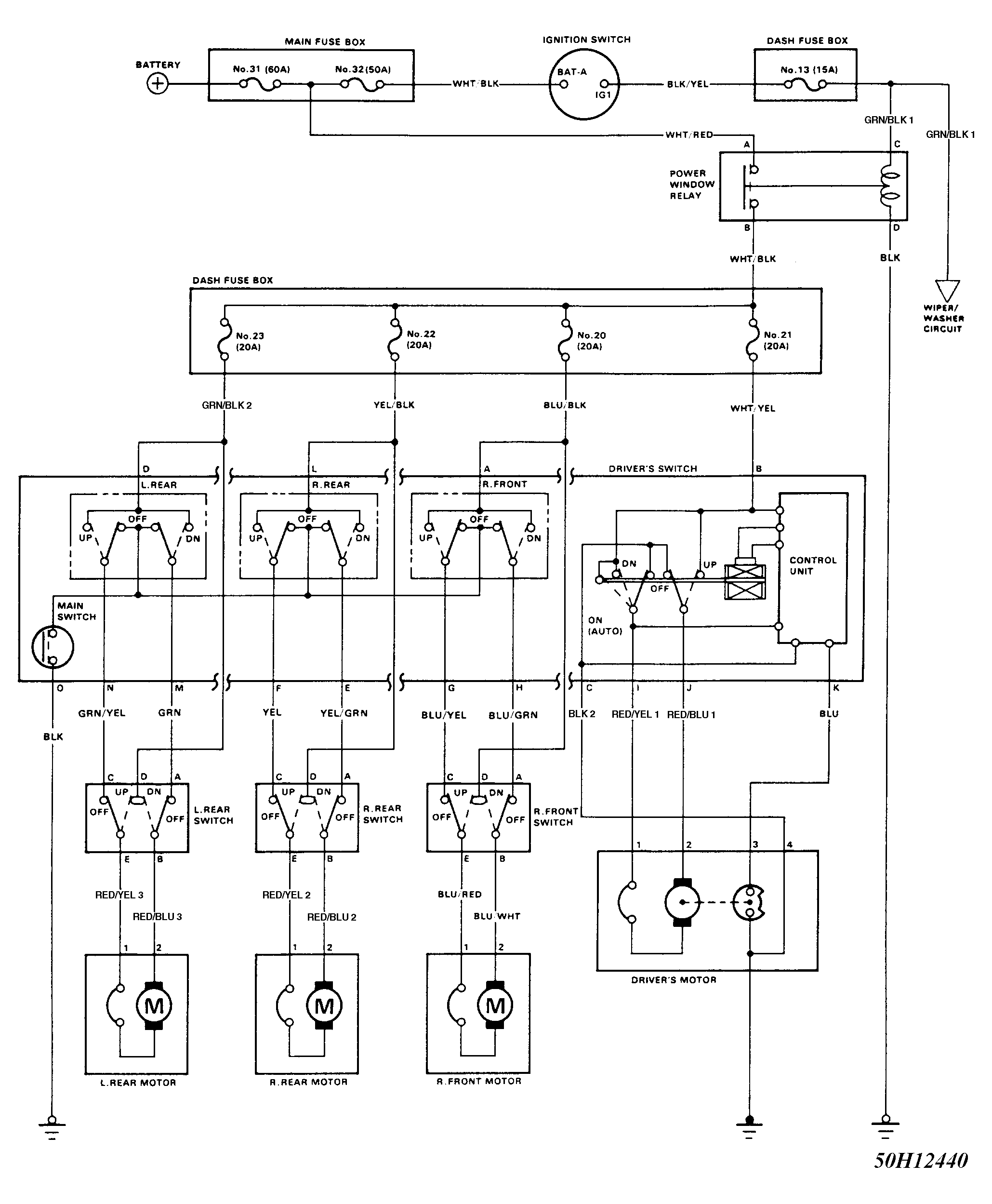

Fig 1: Power Window Wiring Diagram
