Wiring Diagrams

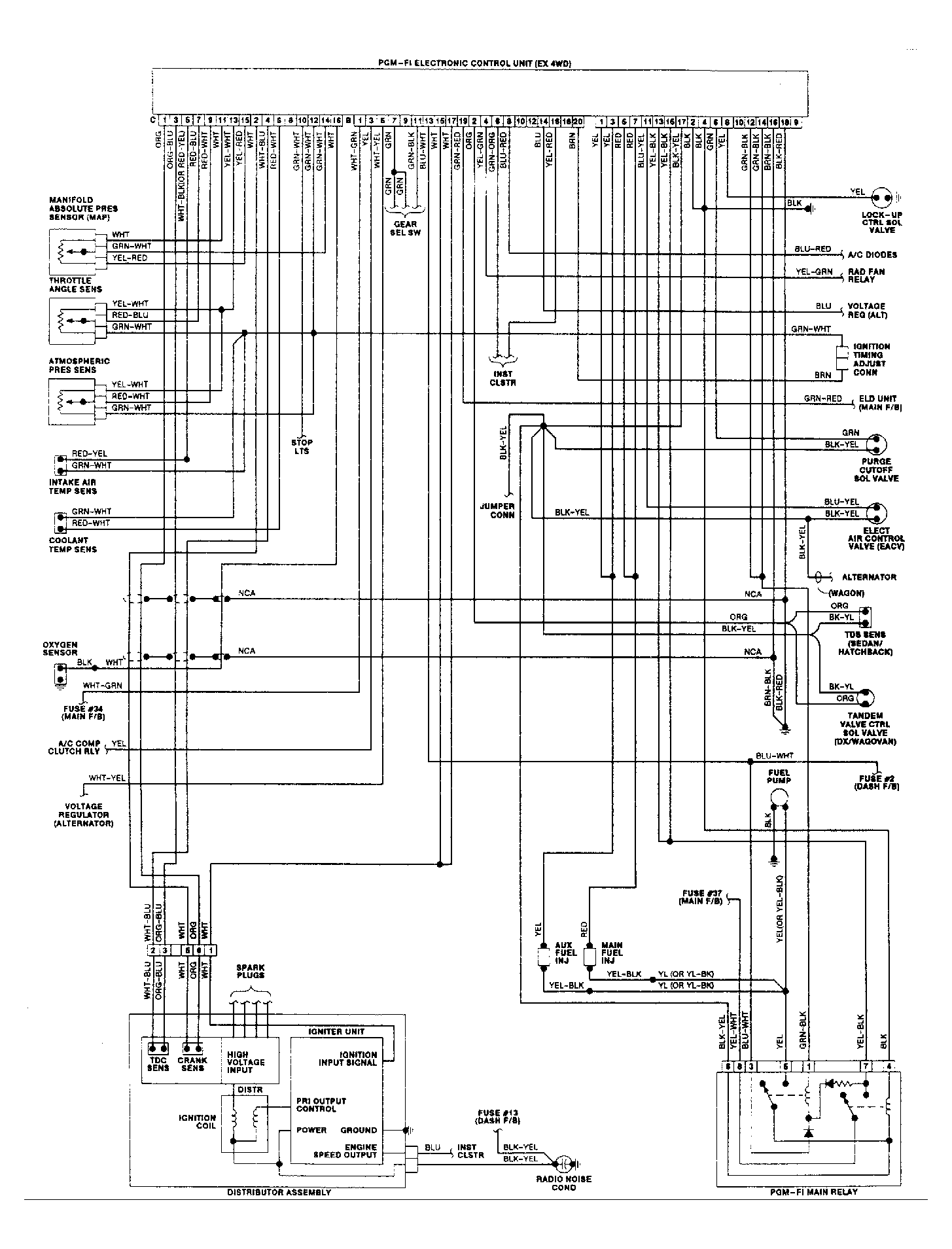

Fig 1: Civic CRX (Standard) Wiring Schematic

G94649

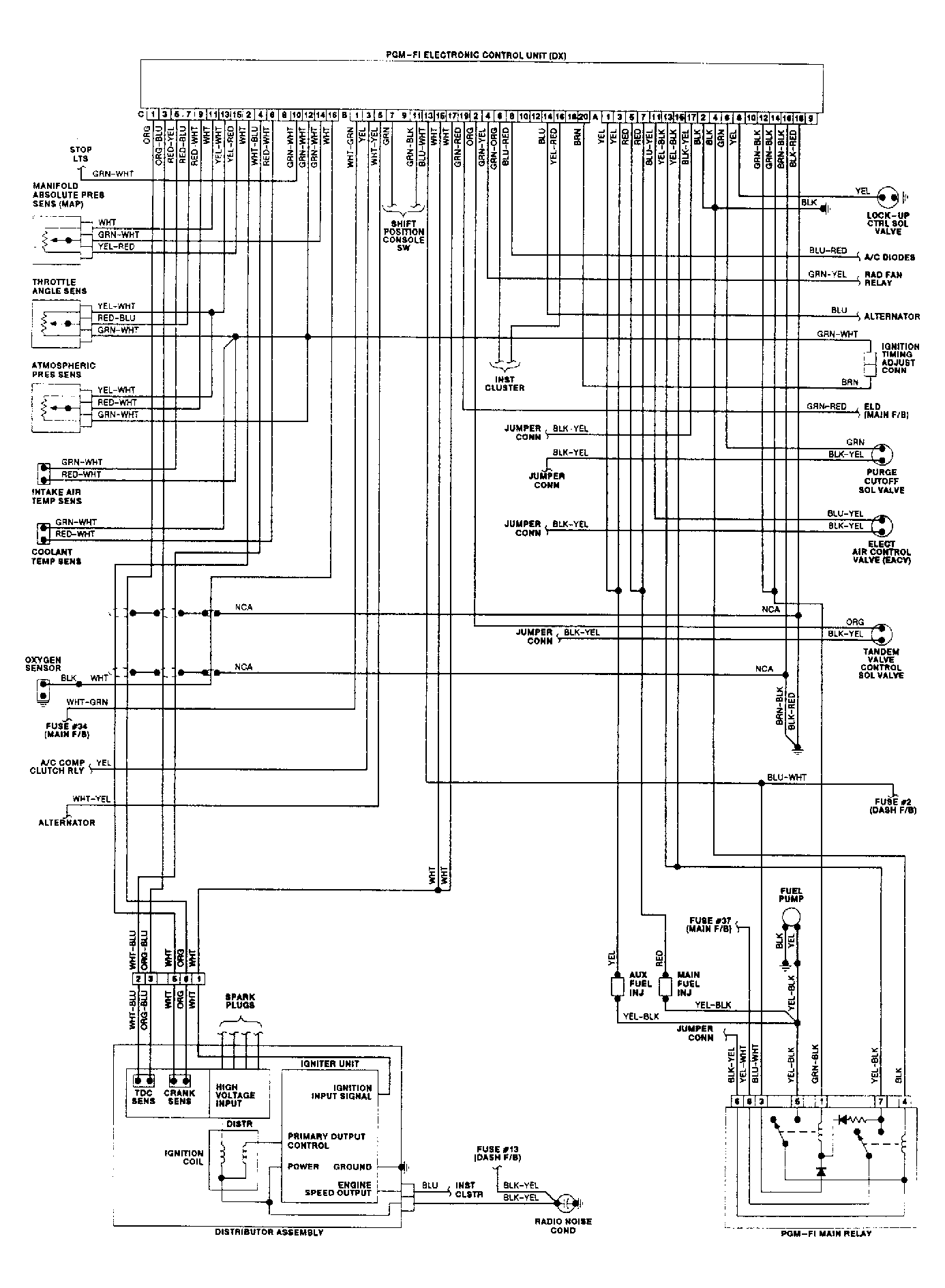

Fig 2: Civic 2WD Wiring Schematic

G94650

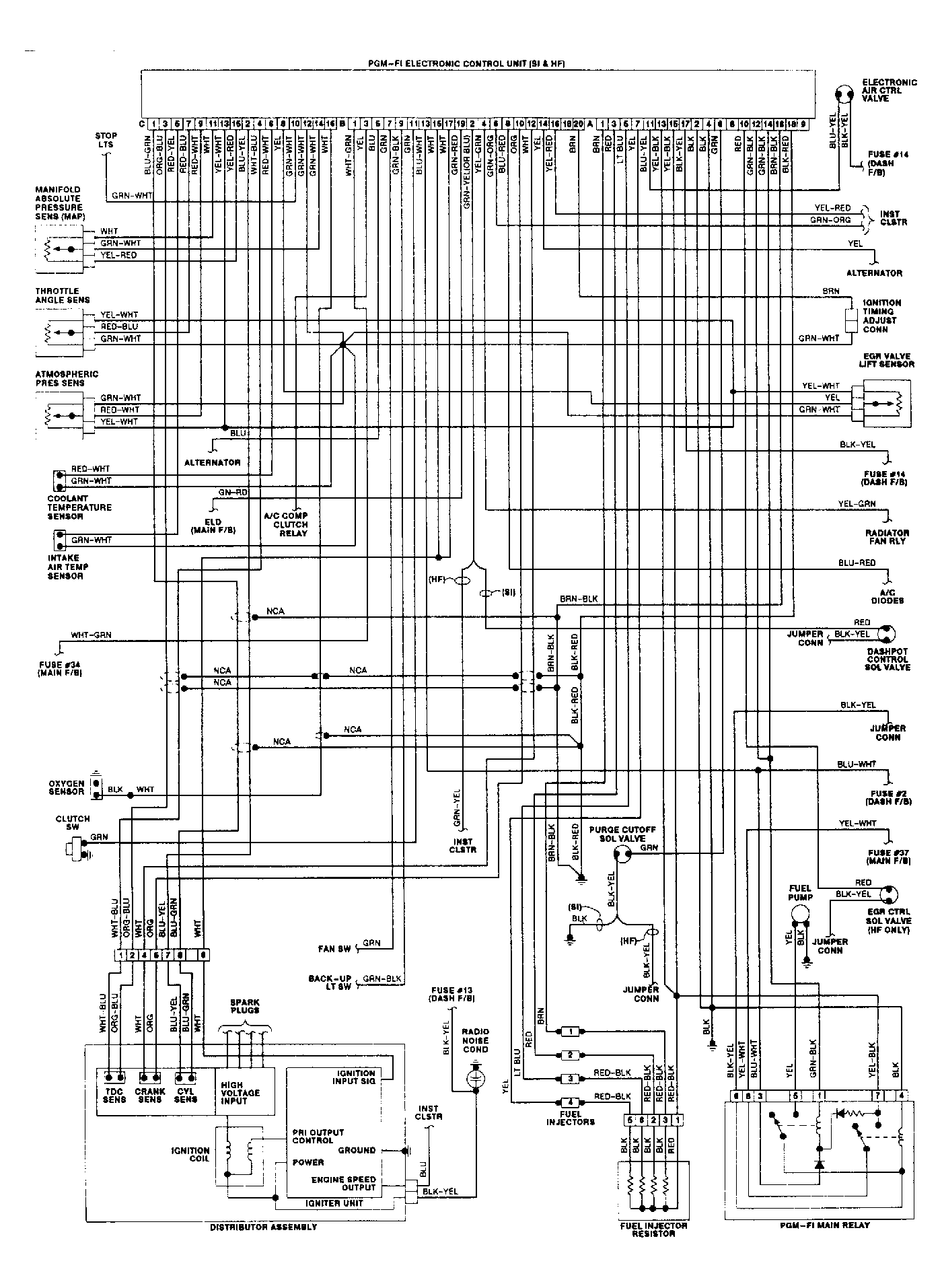

Fig 3: Civic CRX (HF & Si) Wiring Schematic

G94651

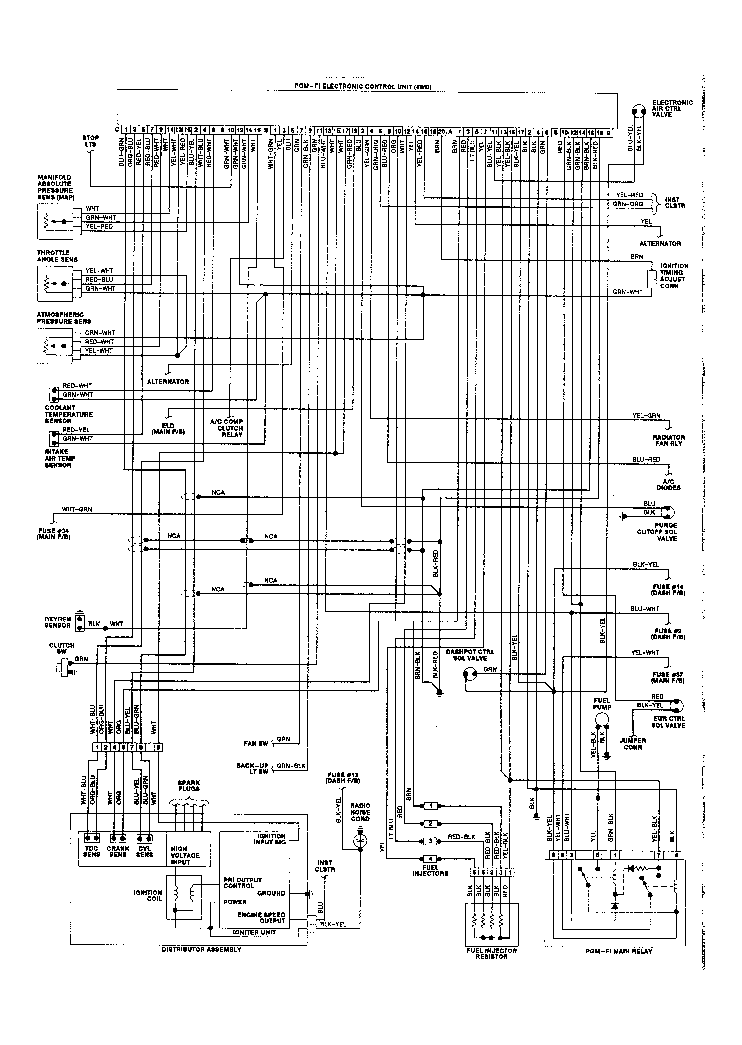

Fig 4: Civic 4WD Wiring Schematic

G94652
