Main Relay

The main relay is a direct-coupler type. It contains relays for ECU power supply, injectors and fuel pump power supply. This relay is installed under left side of dash, at back of fuse box.

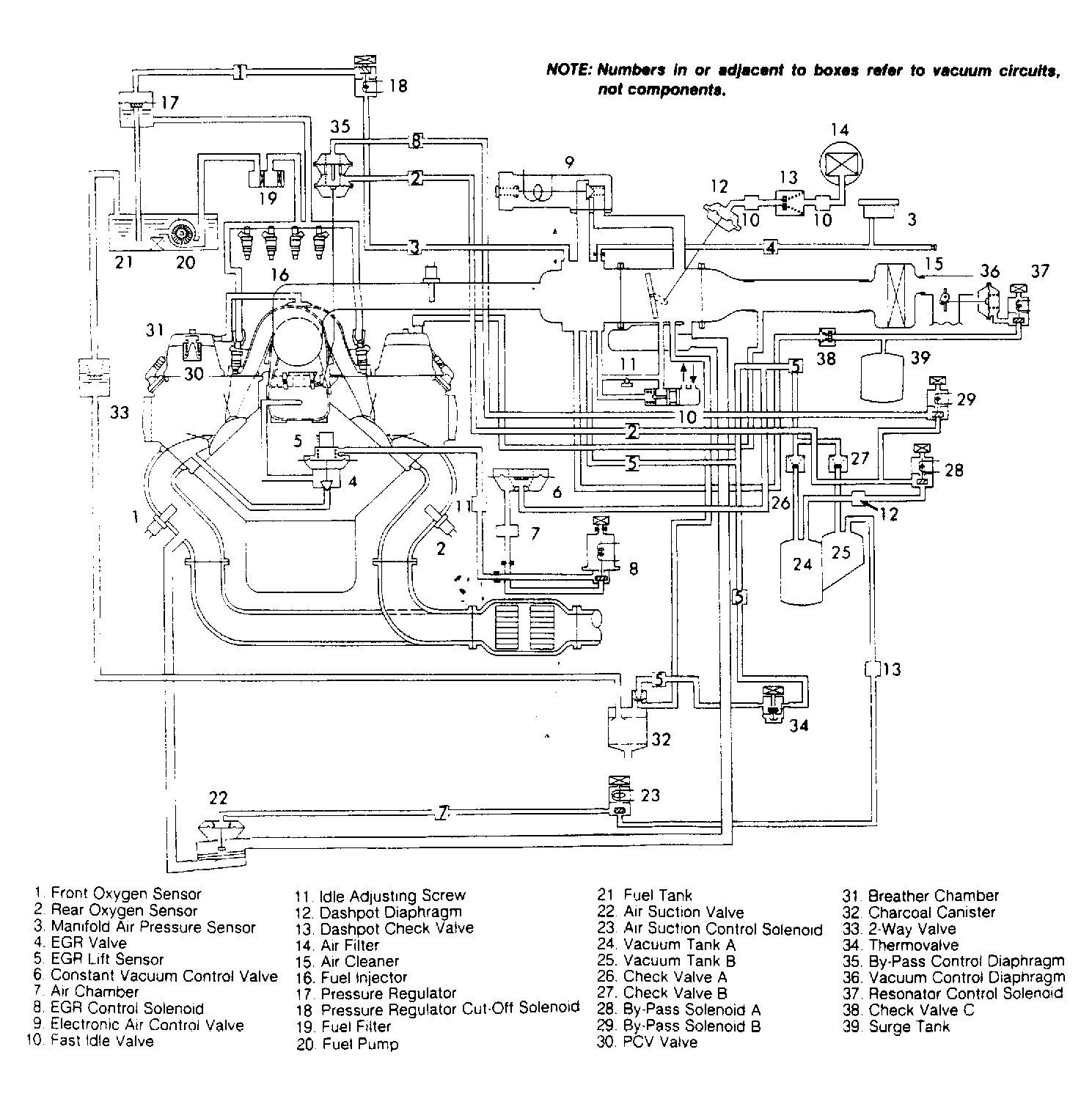

Fig 1: Typical PGM-FI Vacuum & Electrical Connections Diagram
G93511Courtesy of AMERICAN HONDA MOTOR CO., INC.
