Wiring Diagrams

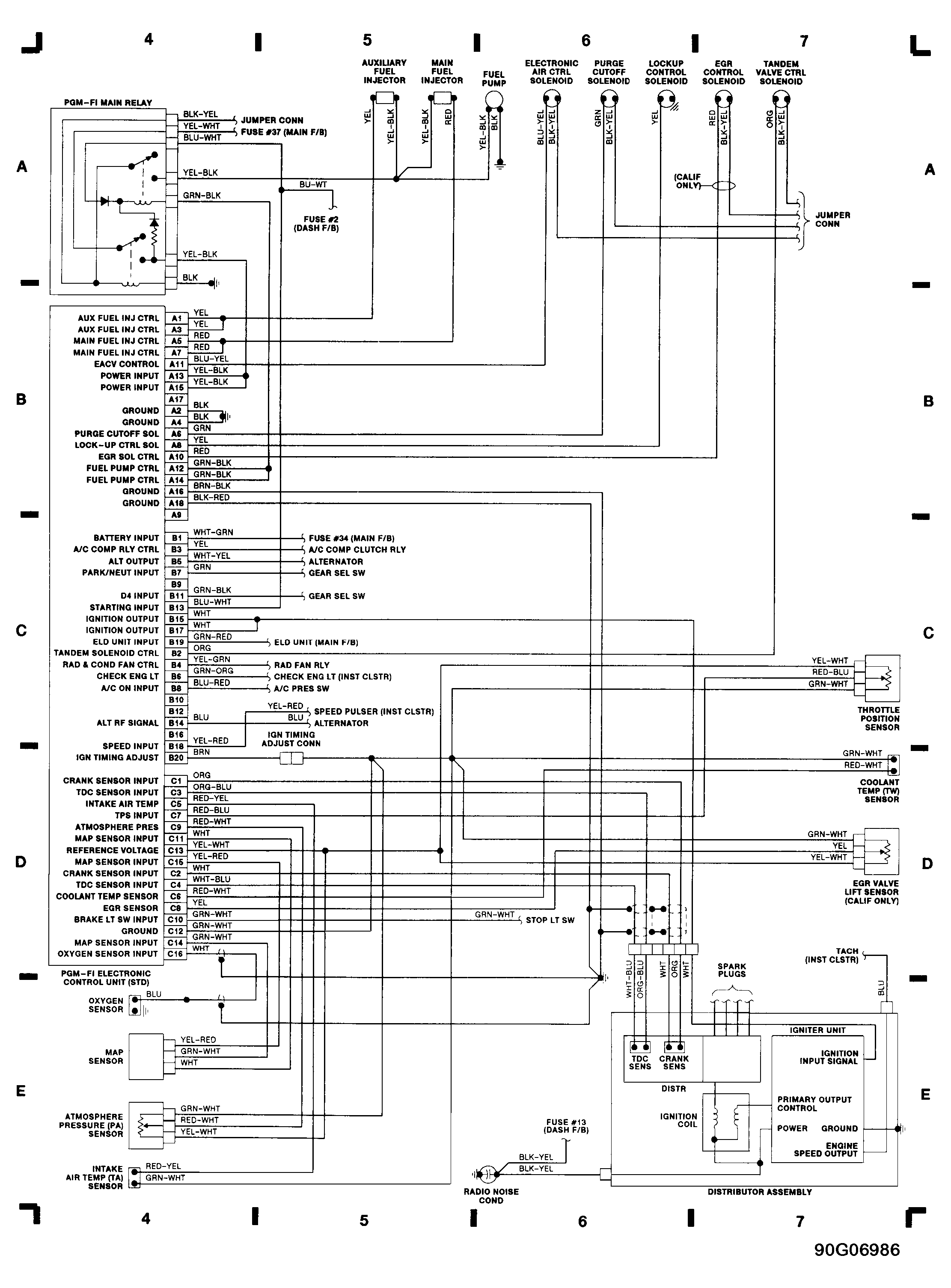

Fig 1: Wiring Diagram (Civic Standard)

G90G06986

Fig 2: Wiring Diagram (Civic Si)

G90I06987

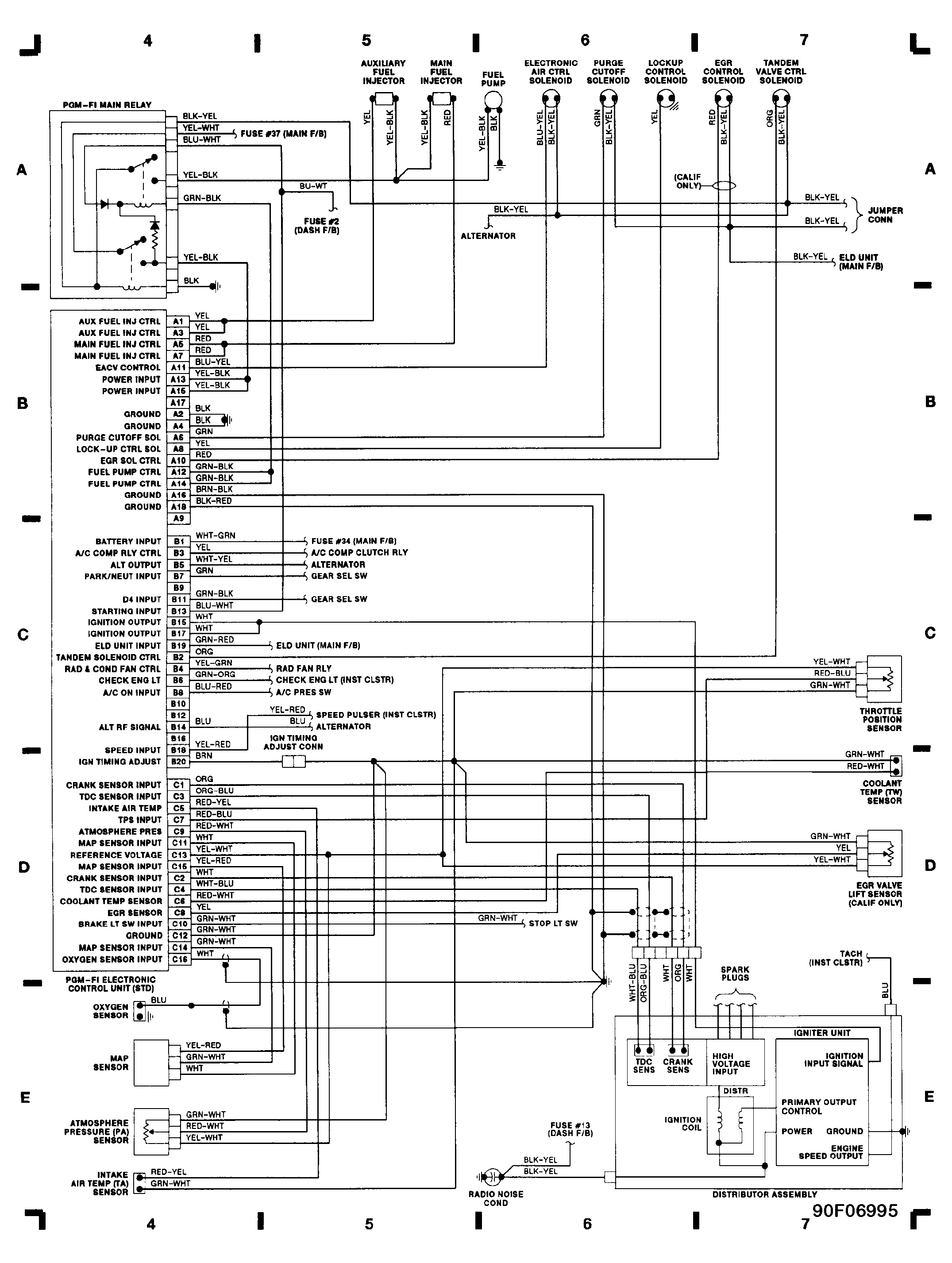

Fig 3: Wiring Diagram (CRX Standard)

G90F06995

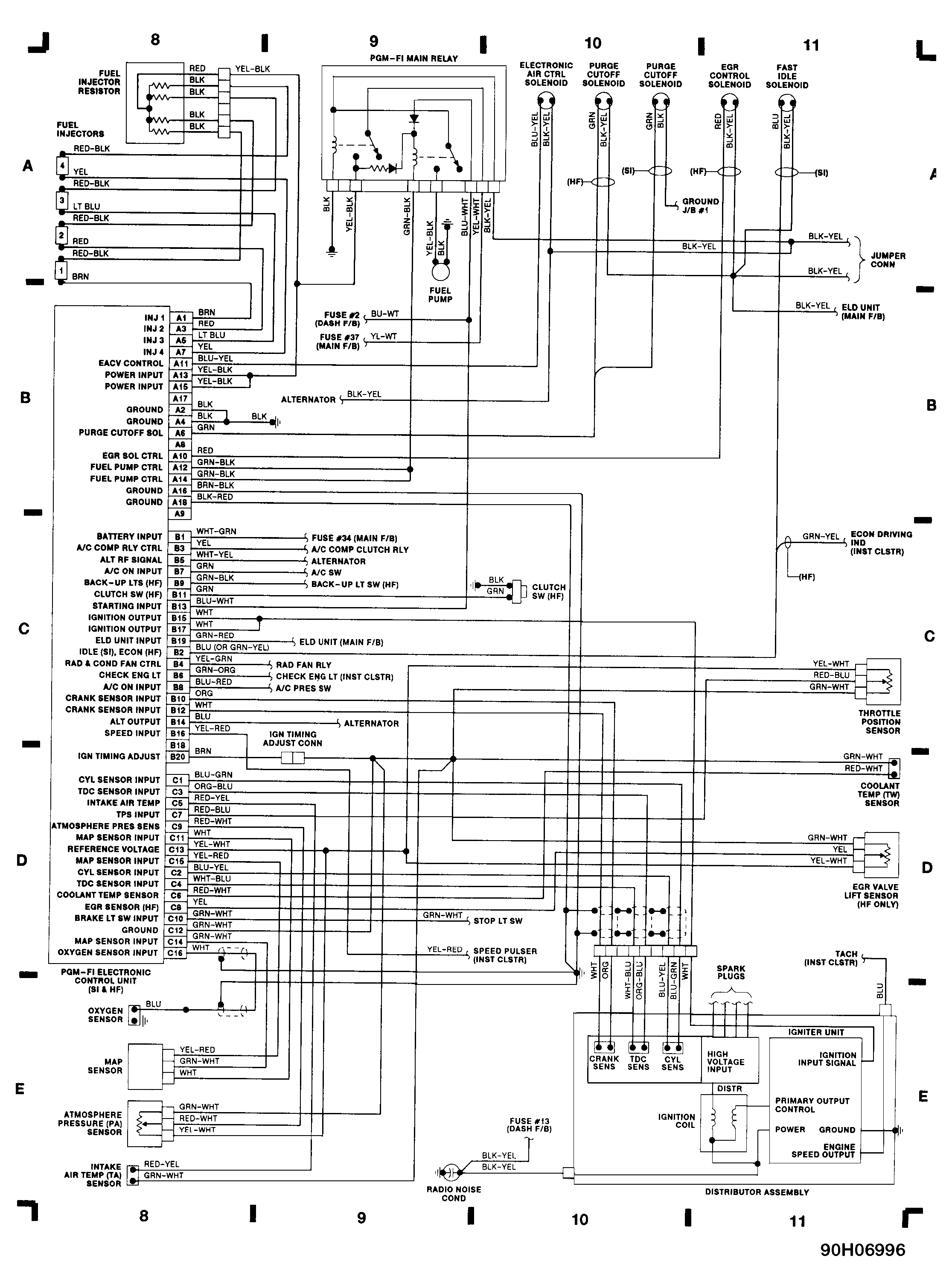

Fig 4: Wiring Diagram (CRX HF & Si)

G90H06996
