Shift Lock Solenoid
- Remove cover from center console.
Disconnect 3-pin connector from main wiring harness, and note terminal identification.

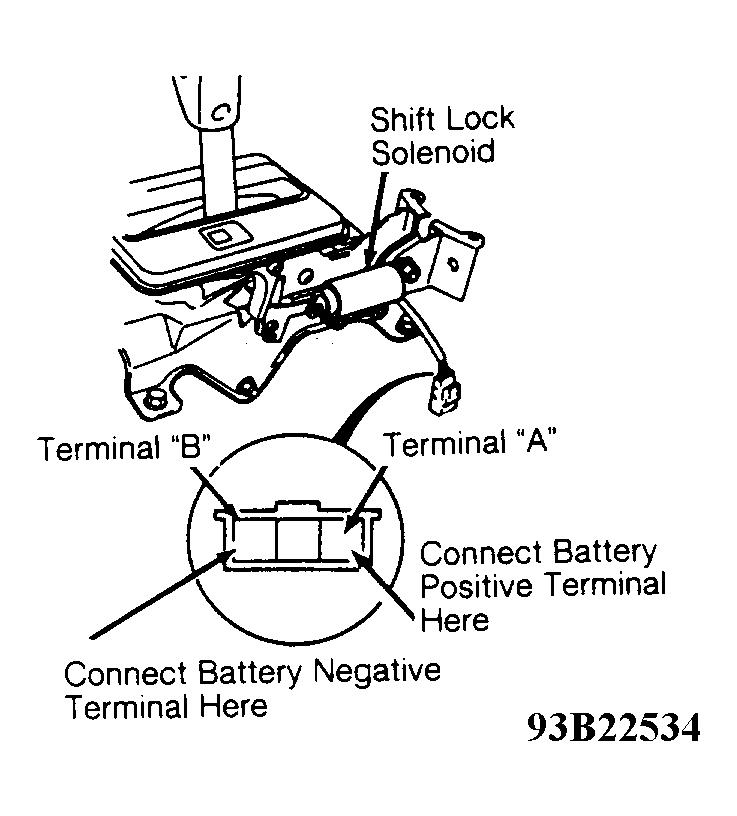

See Fig 1.CAUTION: Battery voltage must be applied to correct shift lock solenoid terminals, or diode inside shift lock solenoid will be damaged.
- Momentarily connect battery positive terminal to terminal "A" and battery negative terminal to terminal "B". See Fig 1. Shift lock solenoid should operate with battery voltage applied. Replace shift lock solenoid if it does not operate.
