Passenger & Rear Switch Test

1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
2. Check for continuity between the terminals in each switch position according to the table. See Fig 1 and Fig 2 .

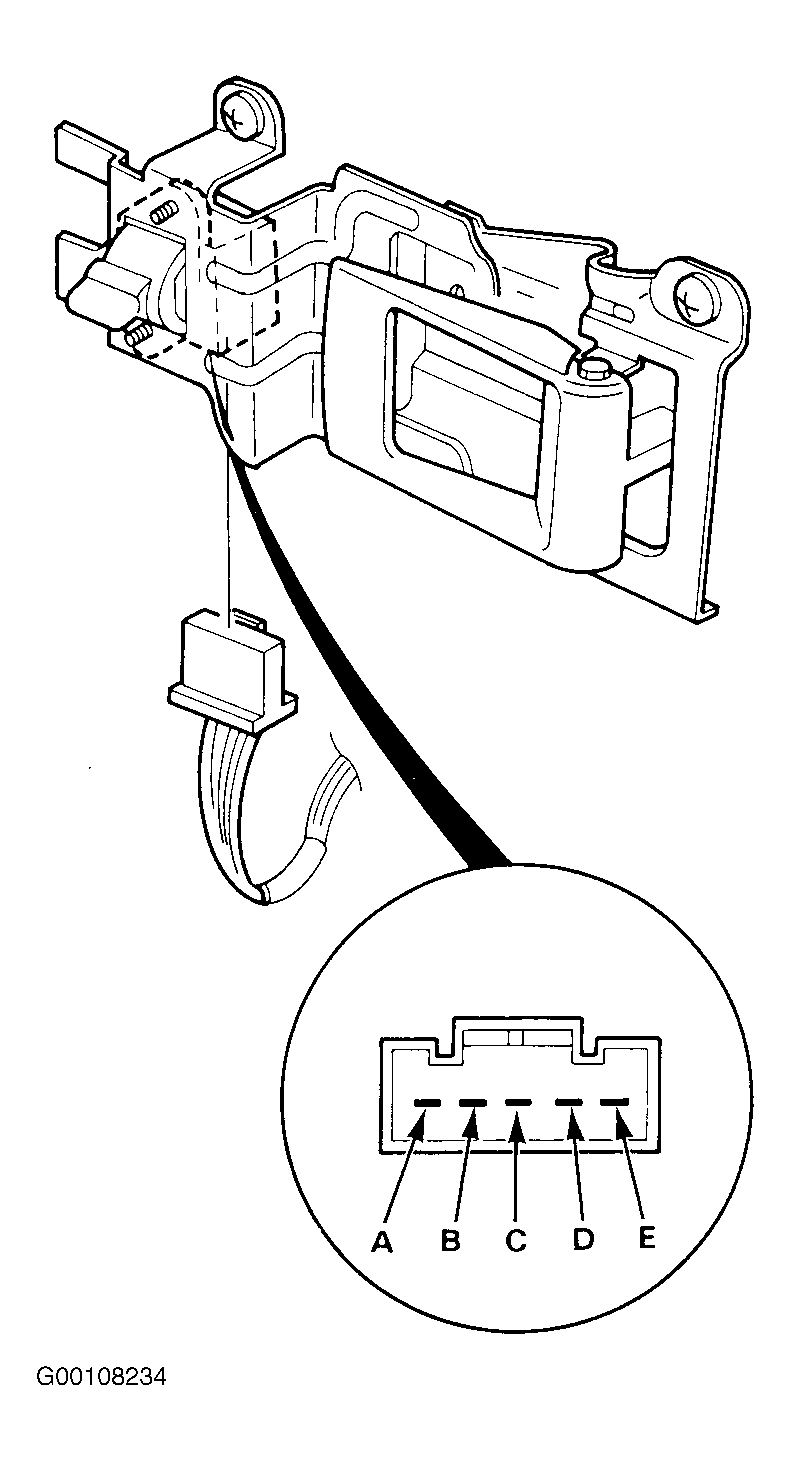

Fig 1: Identifying Passenger & Rear Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Passenger & Rear Switch Continuity Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
