Home › Honda › 1990 › Civic Base, 2D Hatchback › Repair and Diagnosis › Body & Frame › Power Windows › Wiring Diagrams

Wiring Diagrams

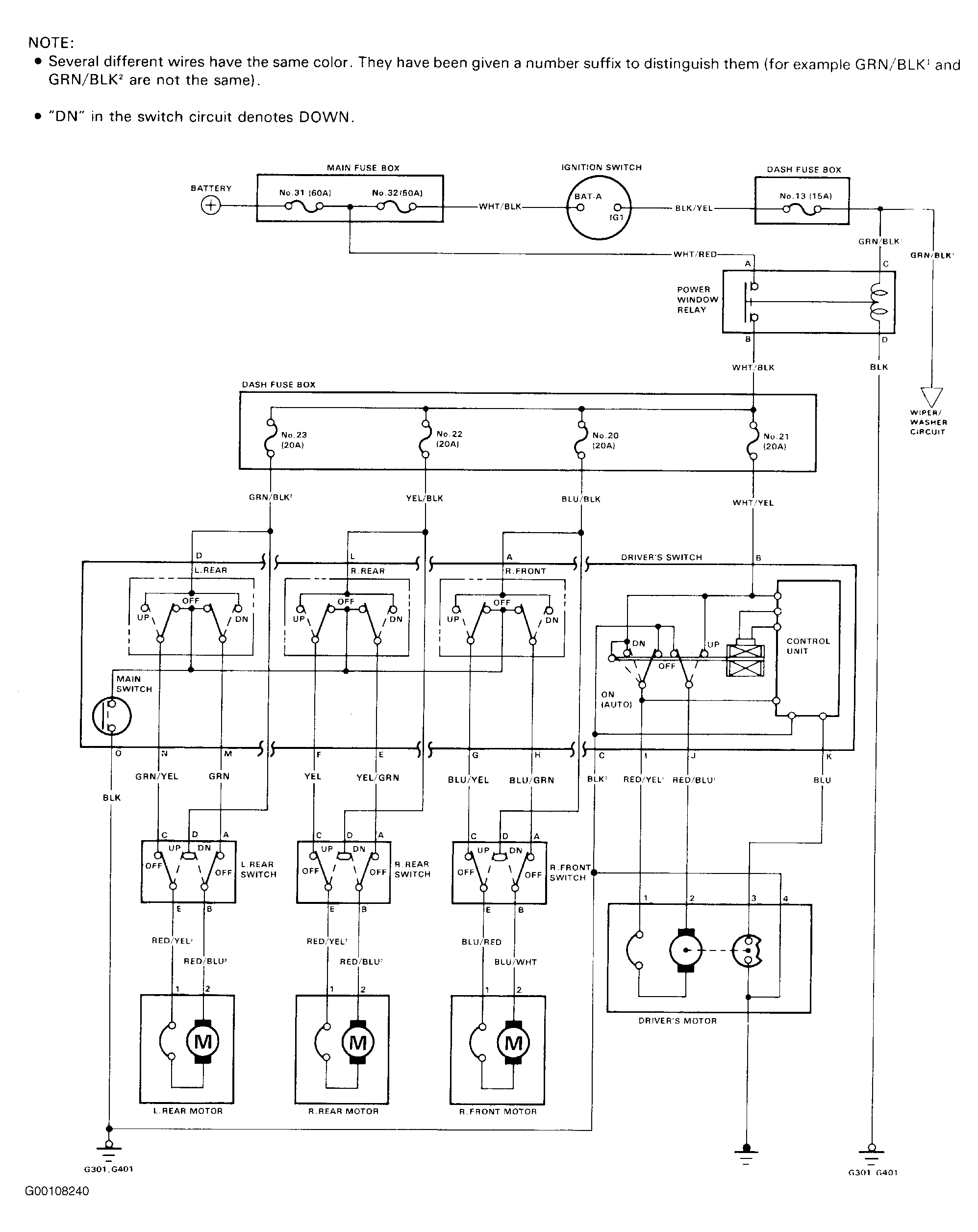

Fig 1: Power Window Wiring Diagram
G00108240Courtesy of AMERICAN HONDA MOTOR CO., INC.
