Wiper System

For connector terminal identification see Figure . For input test see Fig 1 or Fig 2 .

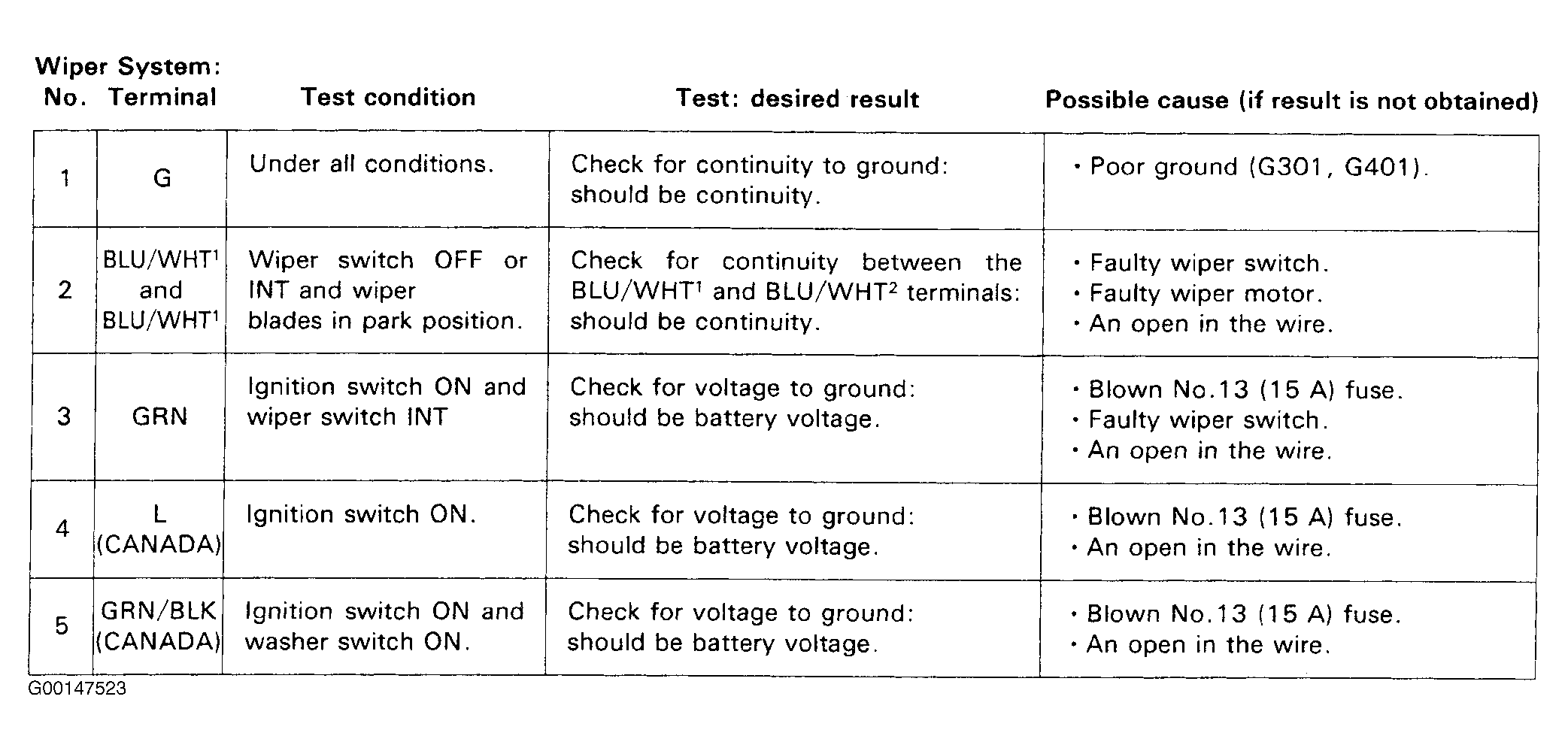

Fig 1: Wiper System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.

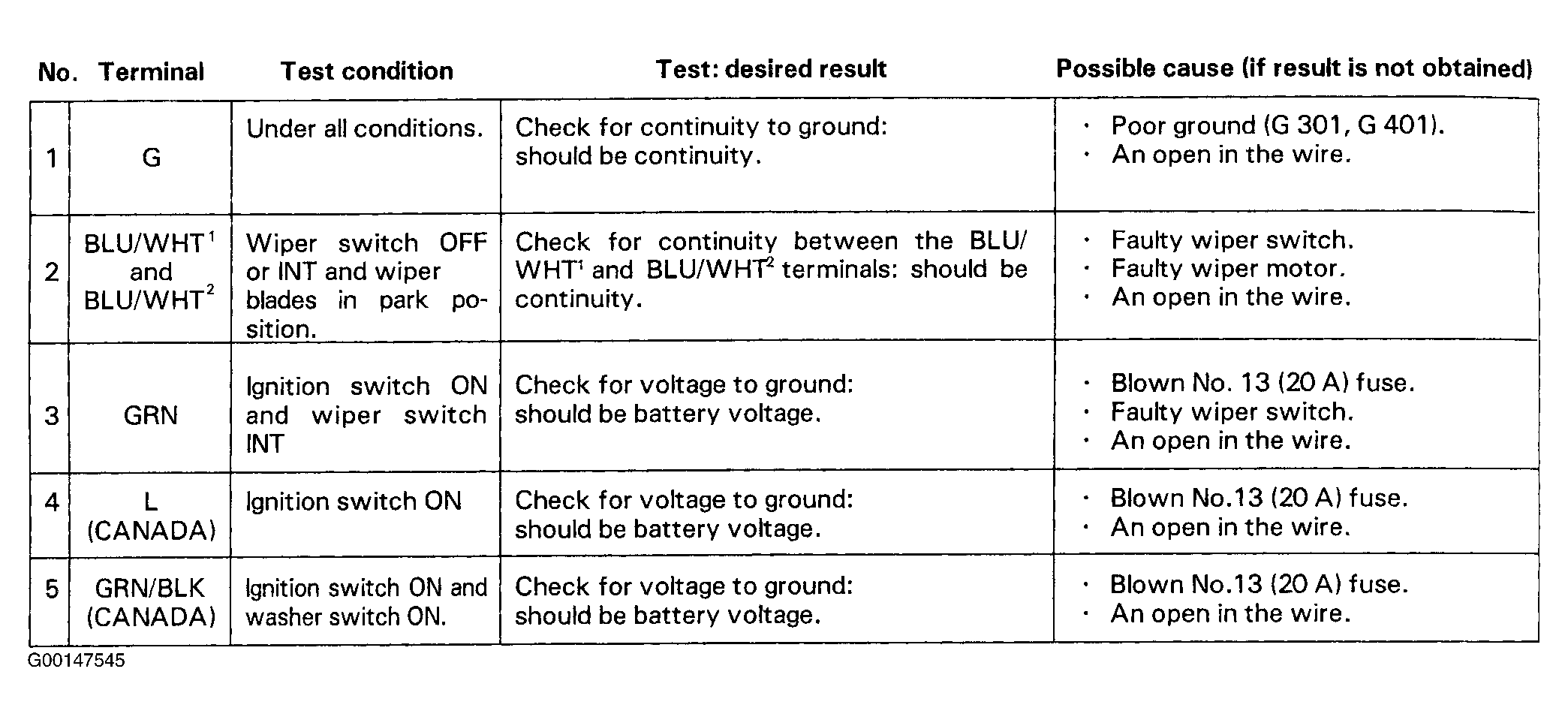

Fig 2: Wiper System Input Test (1991 Civic Wagon)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
