Control Unit
Remove the front console, then disconnect the 4-P, 12-P, and 16-P connectors from the control unit.

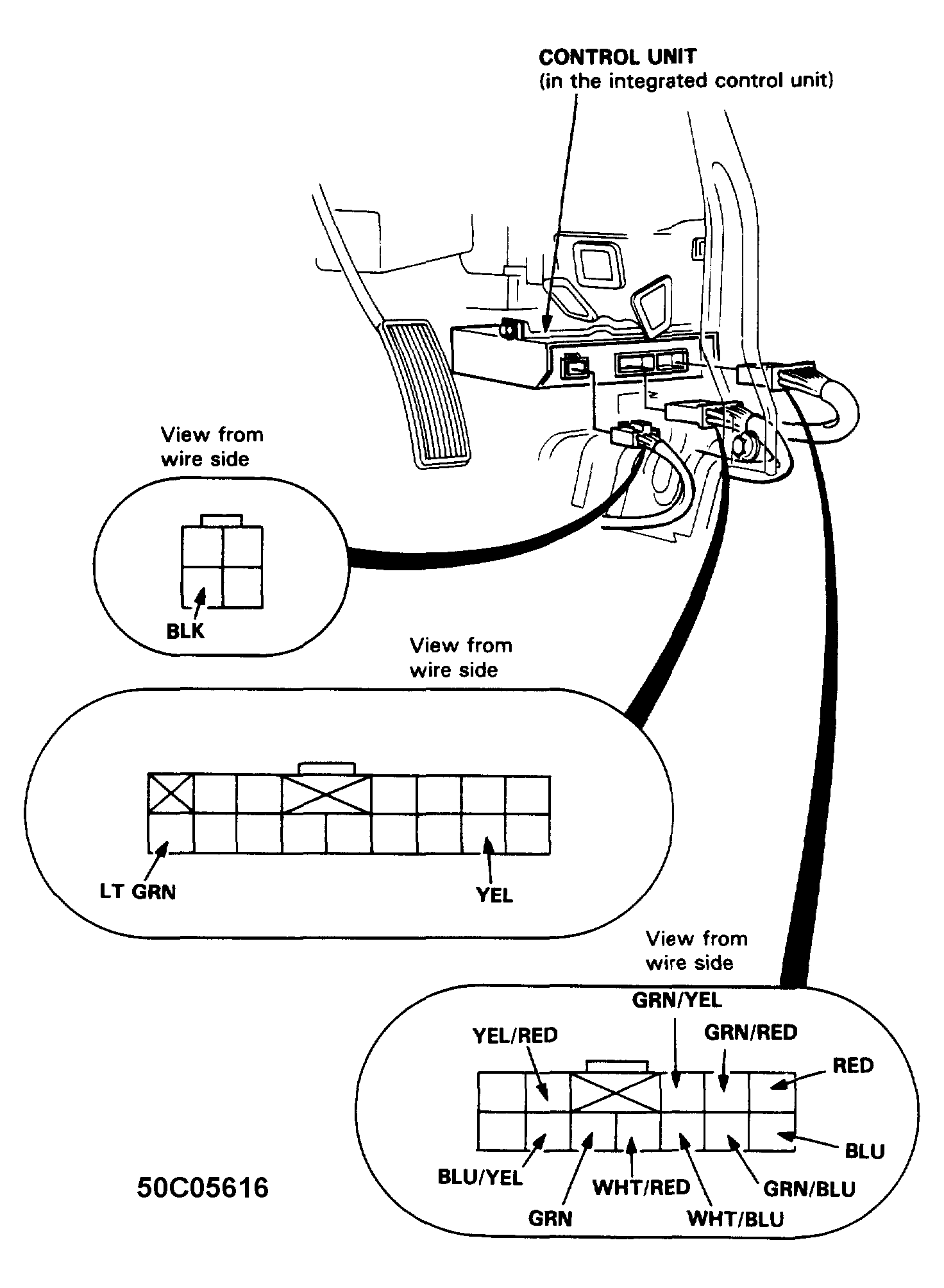

Make the following input tests at the harness pins. See Fig 1 . If all the tests prove OK, yet the system still fails to work, replace the control unit.
