Fail-Safe Function

When an abnormality is detected in the main system, solenoid valve operation is turned off by fail-safe relay. Under these conditions, the ABS system operates as a conventional brake system. The fail-safe function comes on with ANTI-LOCK brake warning light.

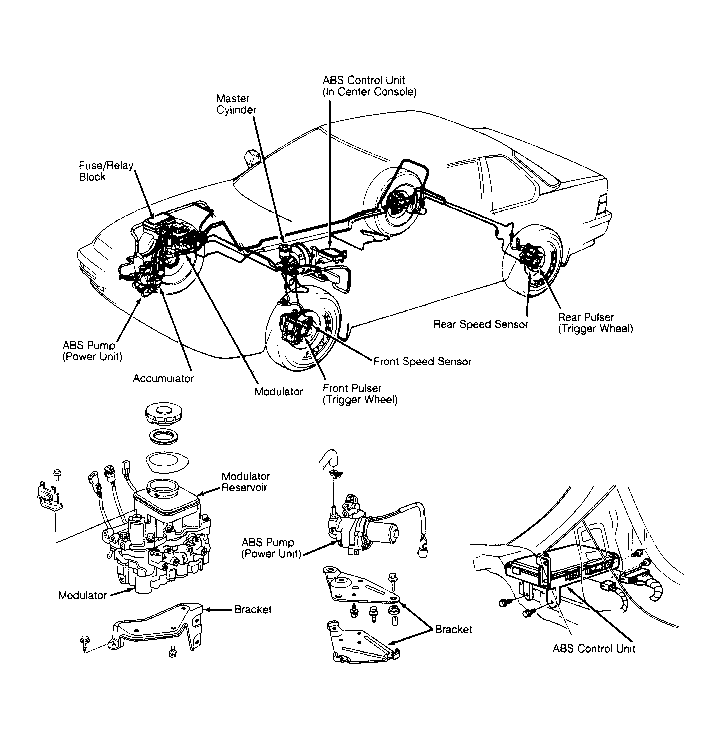

Fig 1: Locating ABS Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
