Entry Light Timer System
Entry Light Timer System
For input test see
Fig 1
.

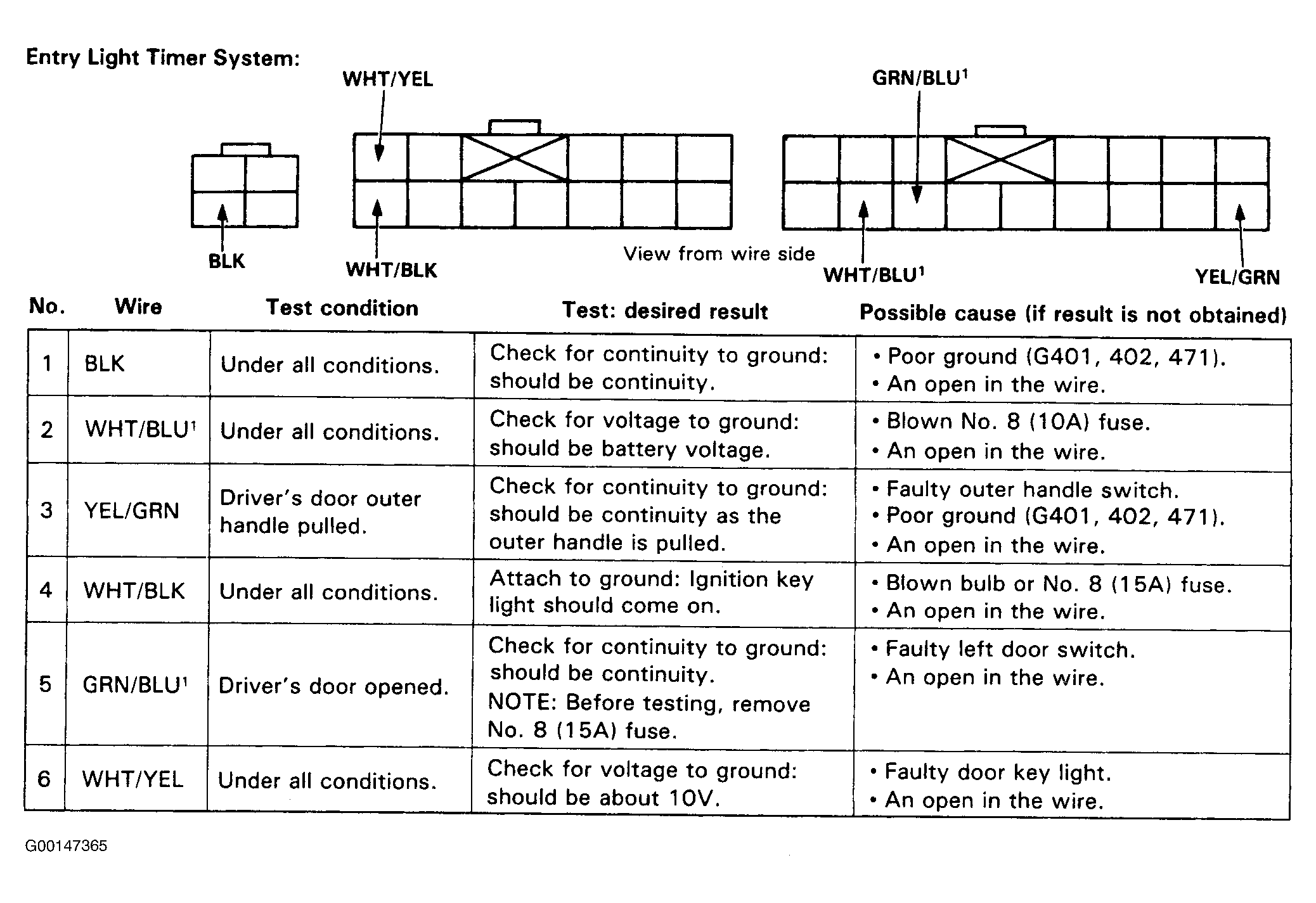

Fig 1: Entry Light Timer System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
