Key-On Warning System
For input test see

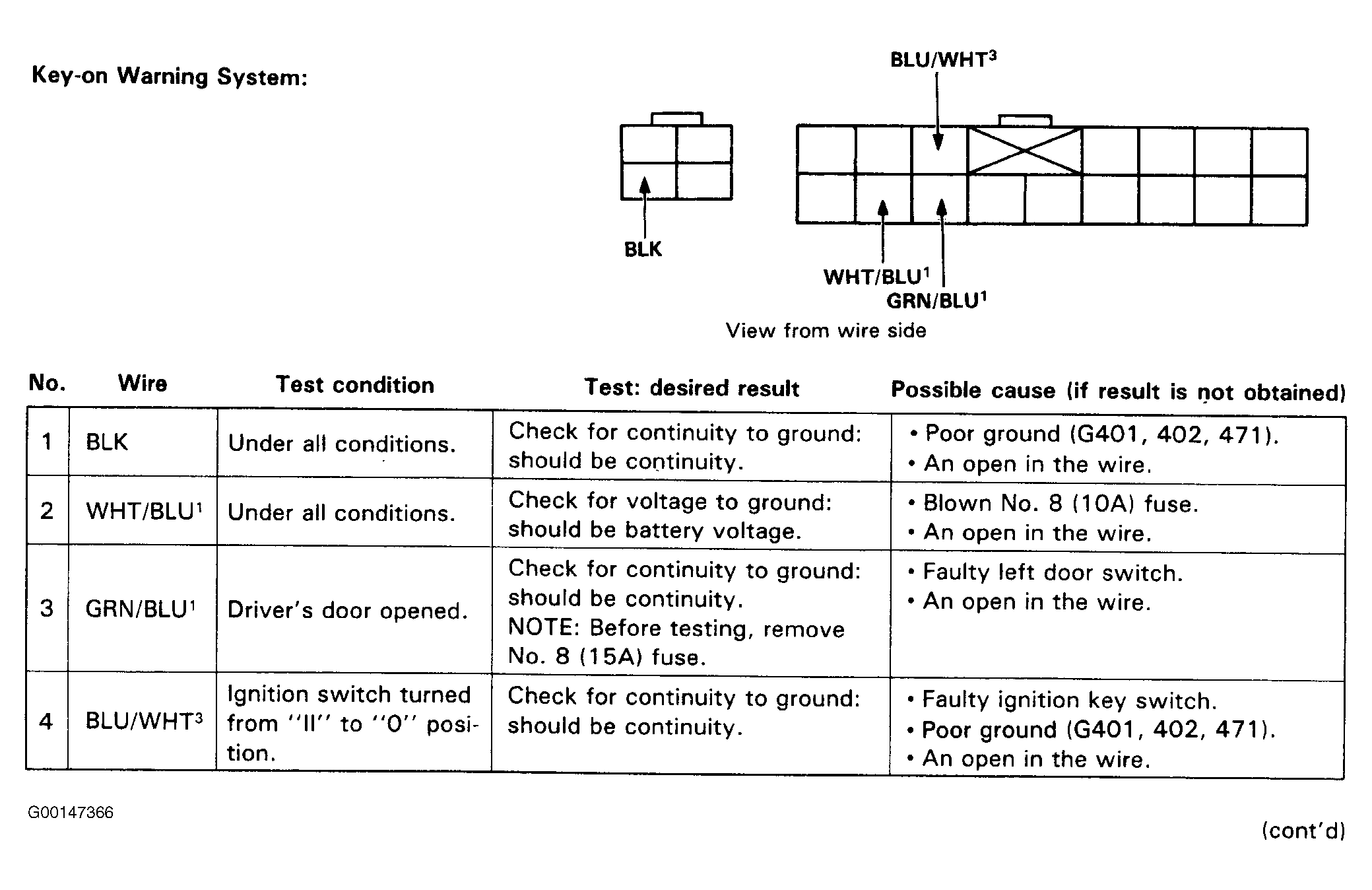

Fig 1
.
Fig 1: Key-On Warning System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
