Driver Window Switch Test: Coupe

1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
2. Remove the driver's switch from the door trim panel.
3. Check for continuity between the terminals in each switch position. See Fig 1 and Fig 2 .

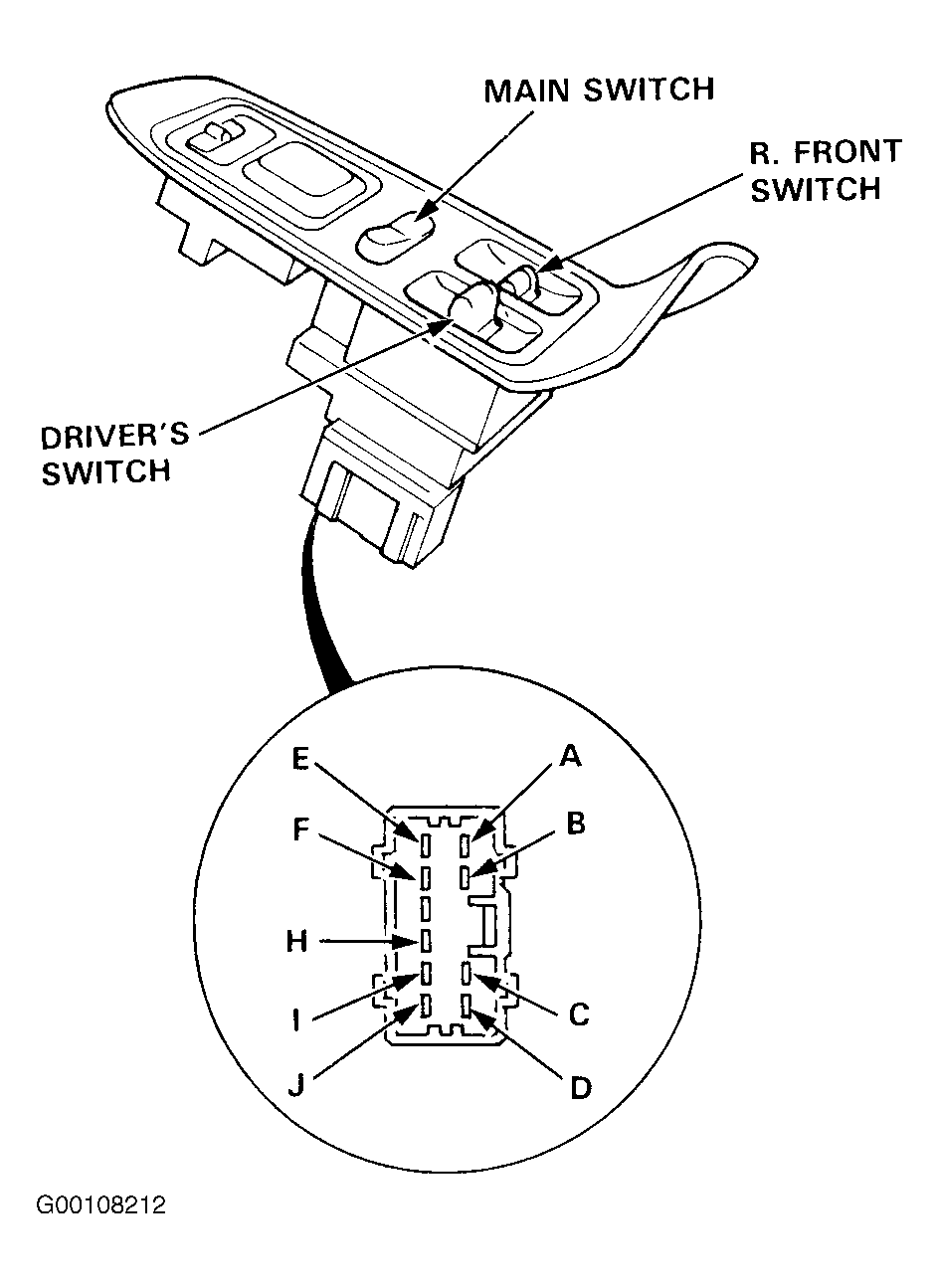

Fig 1: Identifying Driver's Power Window Switch Terminals (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

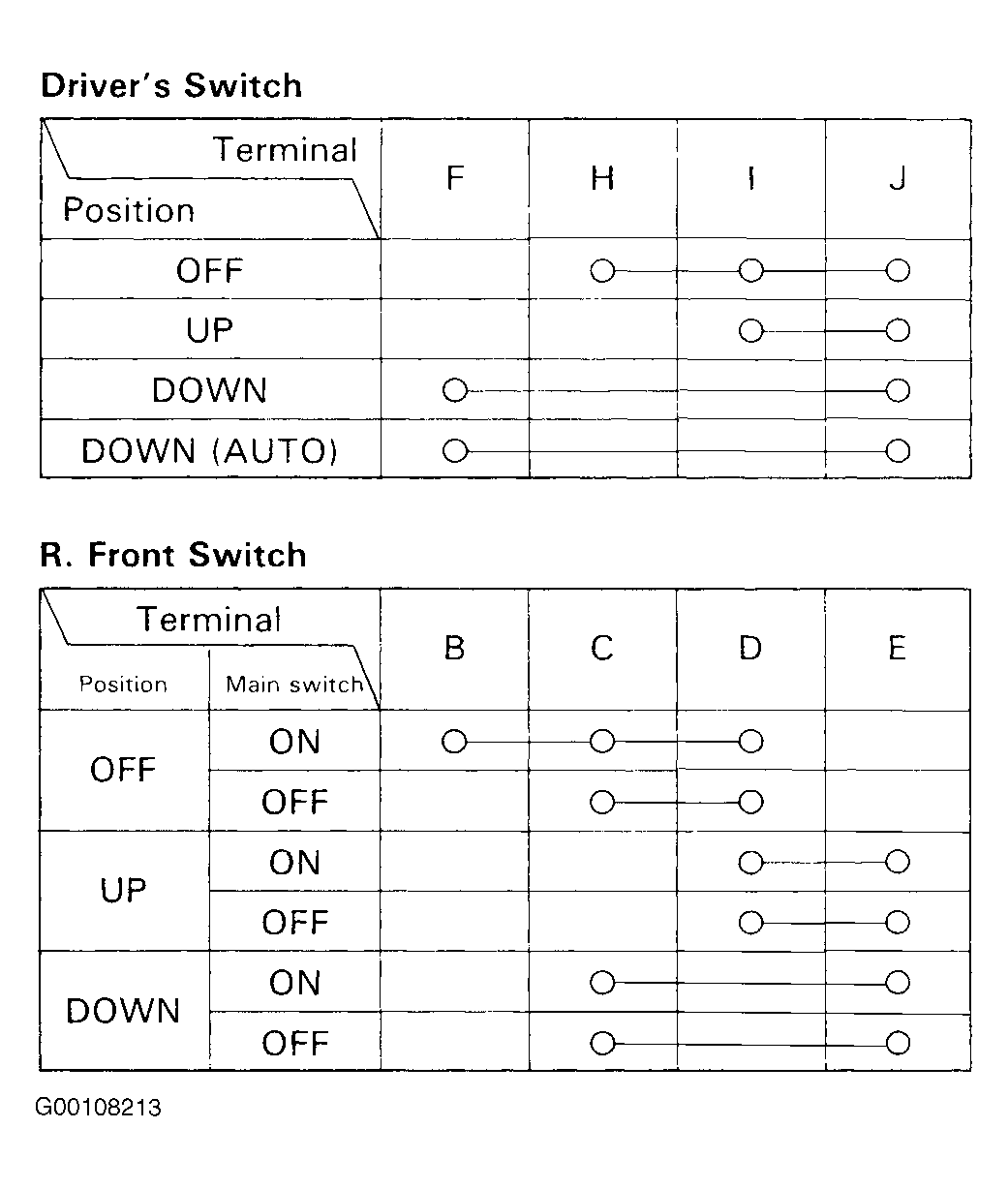

Fig 2: Driver's Power Window Switch Continuity Chart (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
