Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component		Location
Fuse/Relay Box

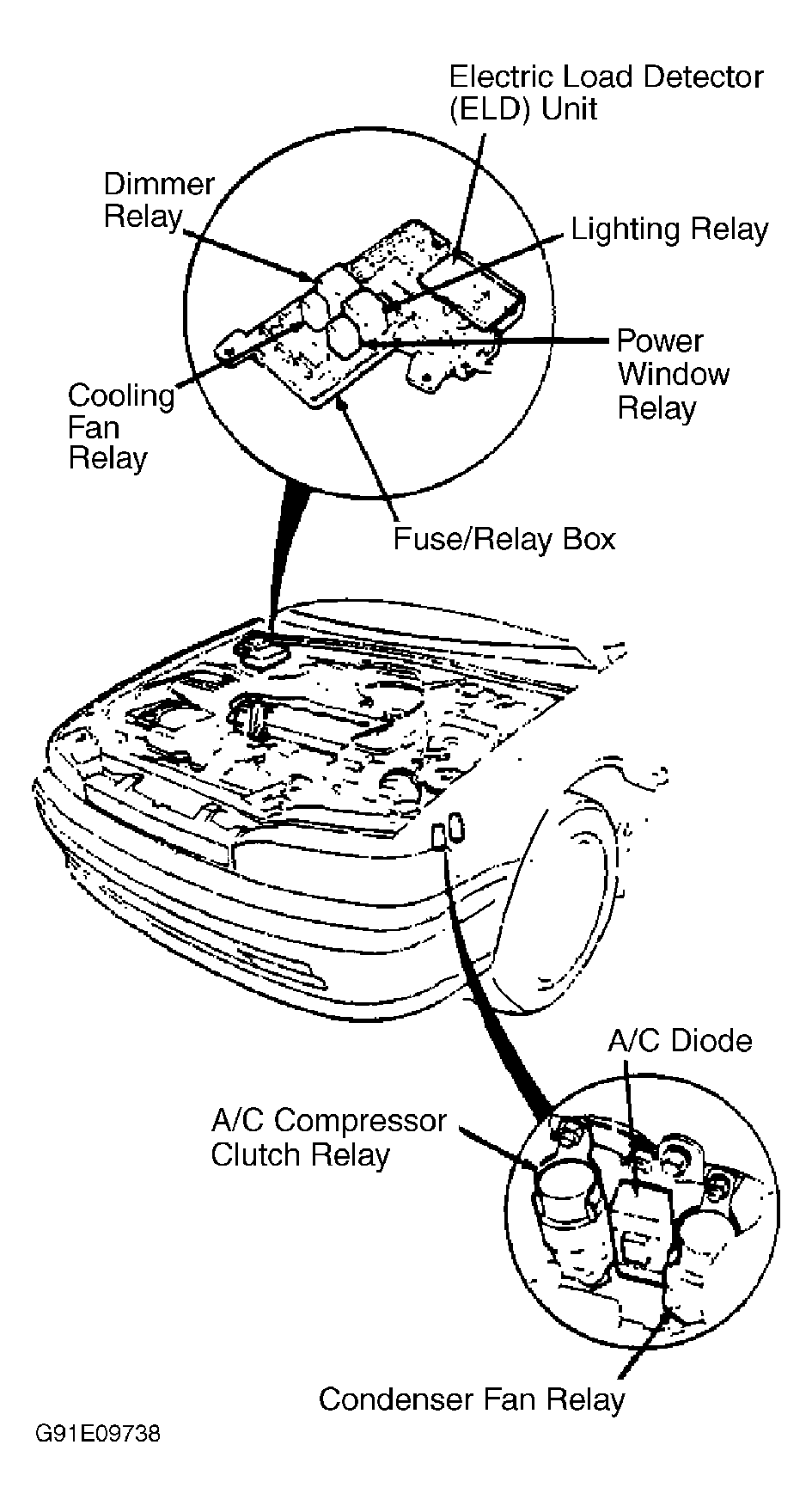

Engine Compartment		Right rear corner of engine compartment, behind strut tower. See Figure .

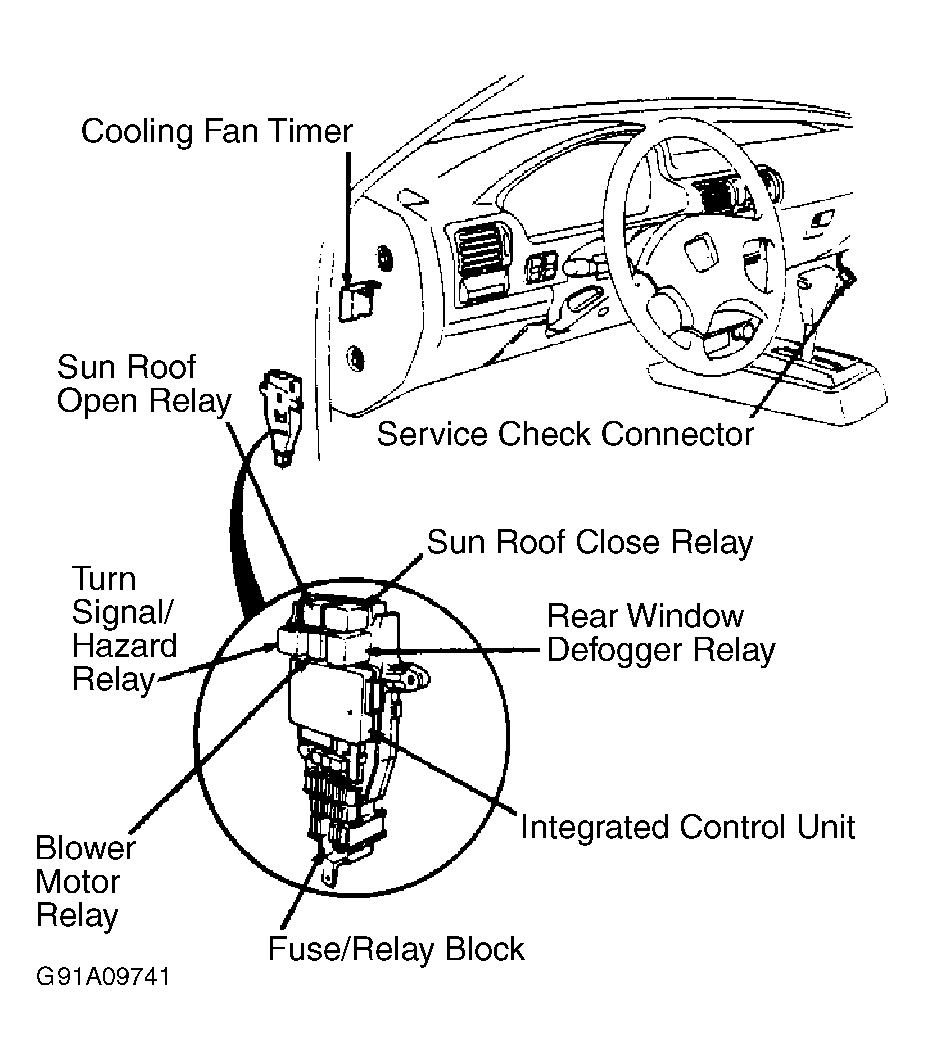

Passenger Compartment		Behind left kick panel. See Figure .
