Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | On right side of luggage compartment, behind wheelwell. | |

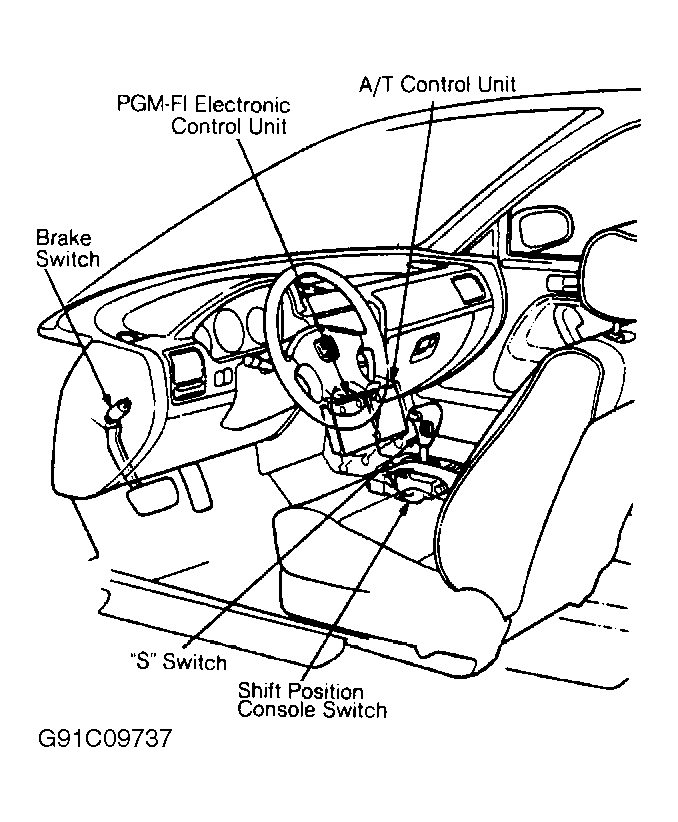

| A/T Control Unit | Under front floor panel carpeting on passenger's side. See Figure . | |
| Anti-Theft Control Unit | Behind left side of dash. | |

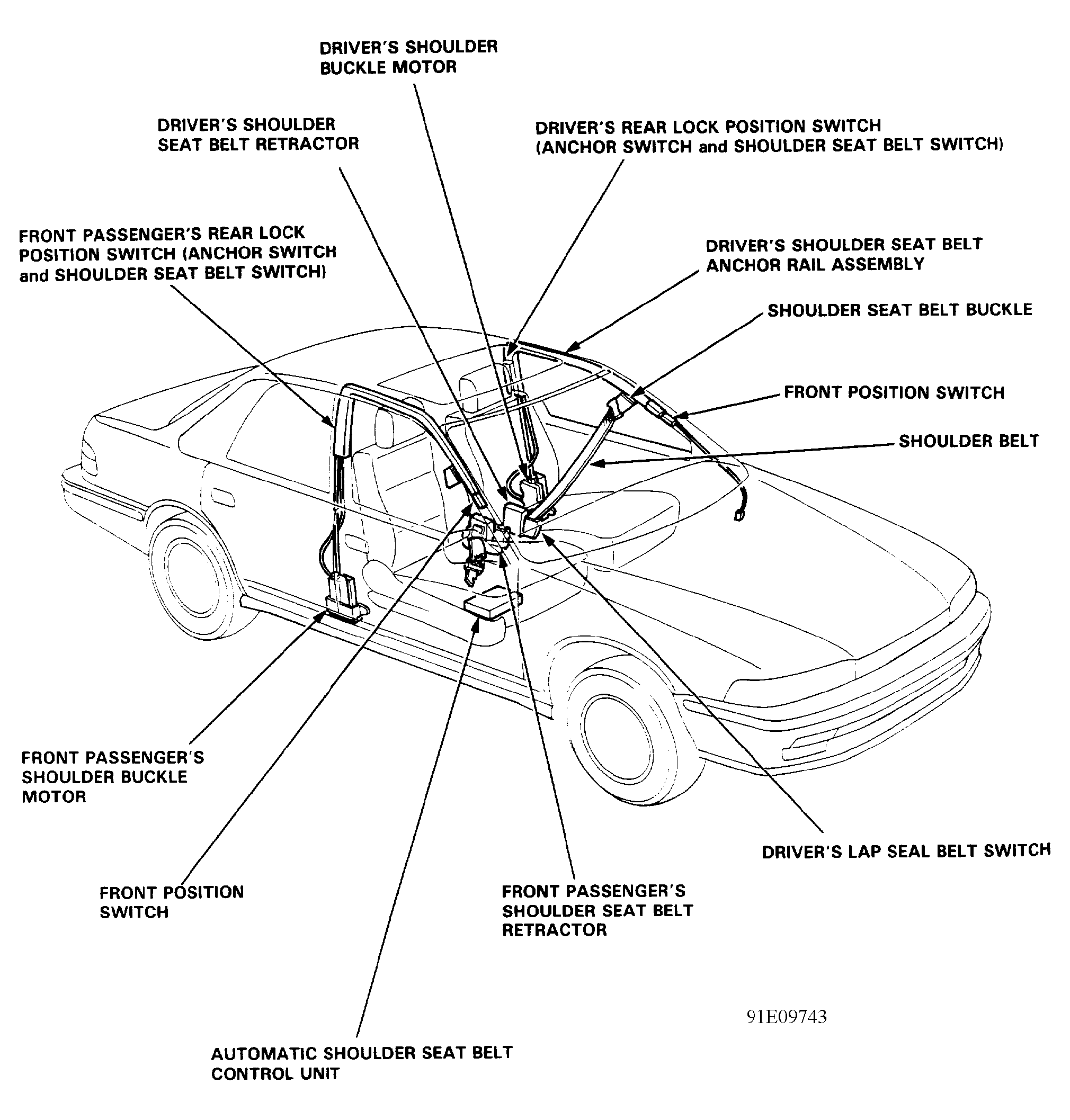

| Automatic Seat Belt Control Unit | Under front passenger's seat. See Figure . | |
| Cruise Control Unit | Behind left side of dash, to left of steering column. See Figure . | |
| Electric Load Detector (ELD) Unit | Incorporated in fuse/relay block at right rear of engine compartment. See Figure . | |
| Engine Mount Control Unit | Behind left side of dash. See Figure . | |
| Keyless Entry Control Unit | Under driver's seat. | |
| Integrated Control Unit | On fuse/relay block behind left kick panel. See Figure . | |
| Interlock Control Unit | Behind left side of dash, behind underhood fuse/relay box. See Figure . | |
| PGM-FI Electronic Control Unit | Under right front floor panel carpeting. See Figure . | |
| Power Door Lock Control Unit | ||
| Coupe & Sedan | In left front door, behind door panel. | |
| Wagon | Under driver's seat. | |
| SRS Control Unit | Behind center of dash, below heater assembly. | |
