COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Brake Fluid Level Switch | In master cylinder reservoir cover. |

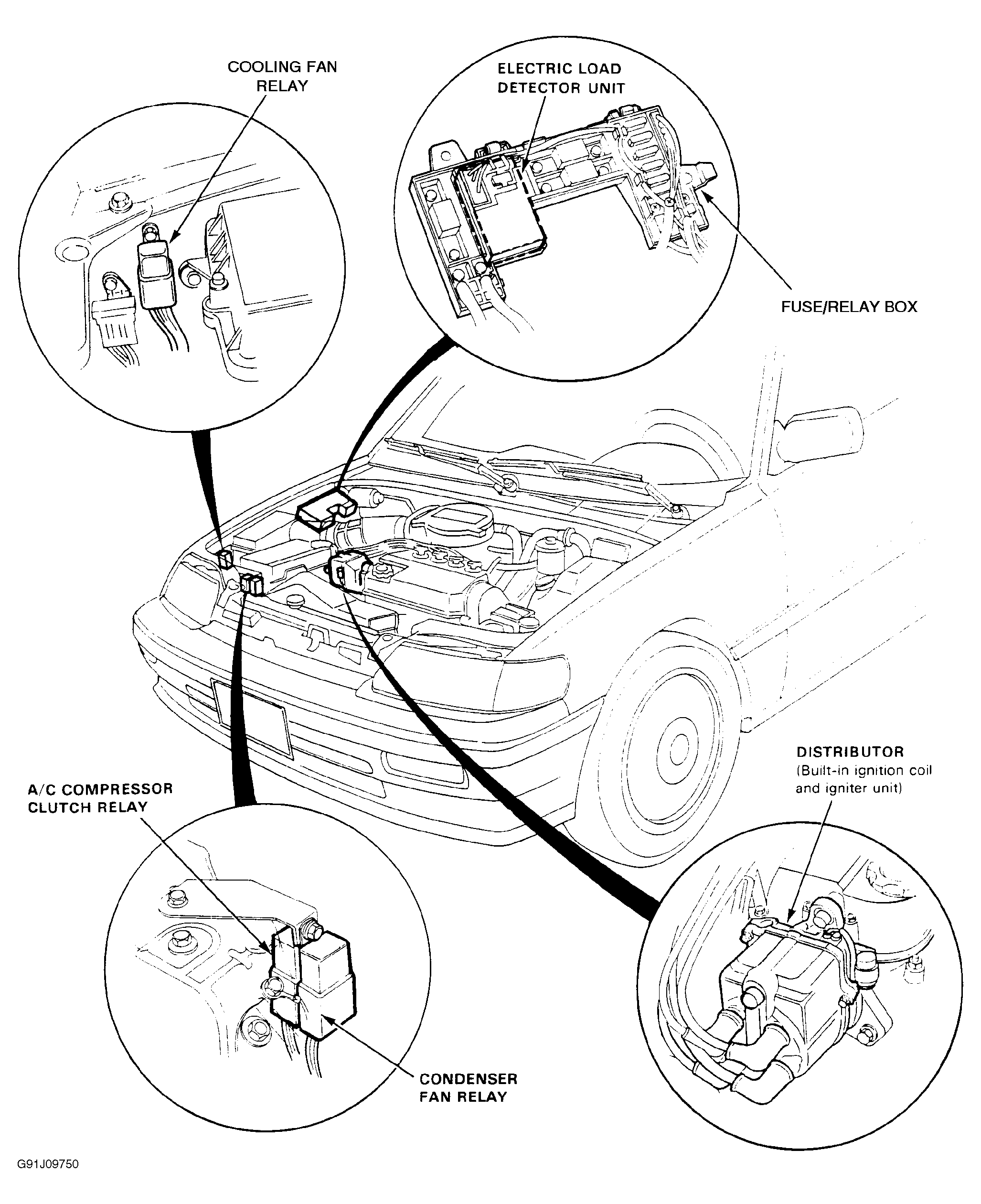

| Engine Compartment Fuse/Relay Box | Right rear corner of engine compartment, above strut tower. See Fig 1 . |
| Ground G201 | Right front corner of engine compartment. |
| Ground G301 | In left front corner of engine compart. |
| Ground G401 | Behind left side of dash, behind kick panel. |
| Ground G511 | Rear, center of car, below liftgate/trunk latch. |
| Ground G561 | In front, center of trunk, on upper panel. |

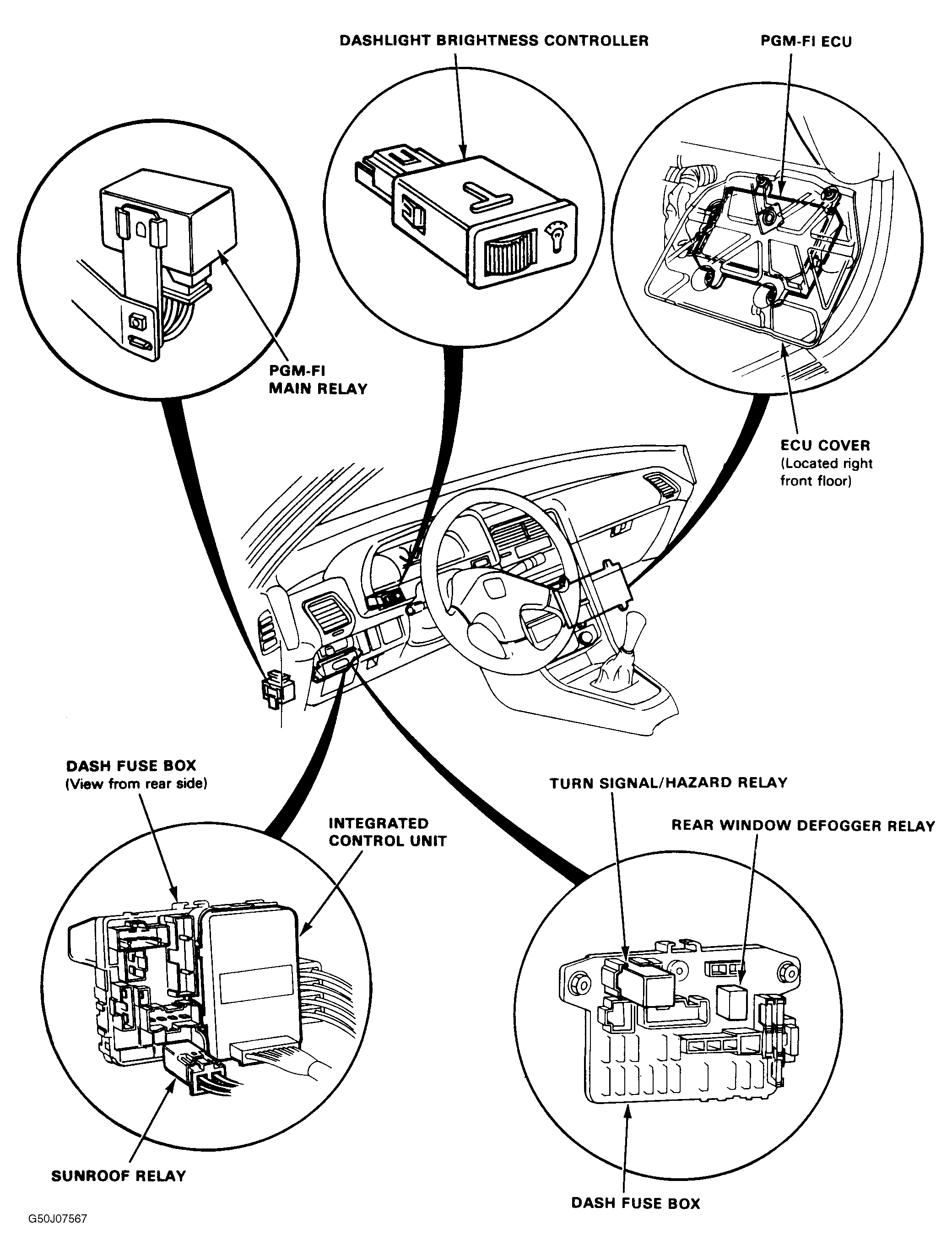

| Integrated Control Unit | On fuse/relay block behind left side of instrument panel. See Fig 2 and Fig 3 . |

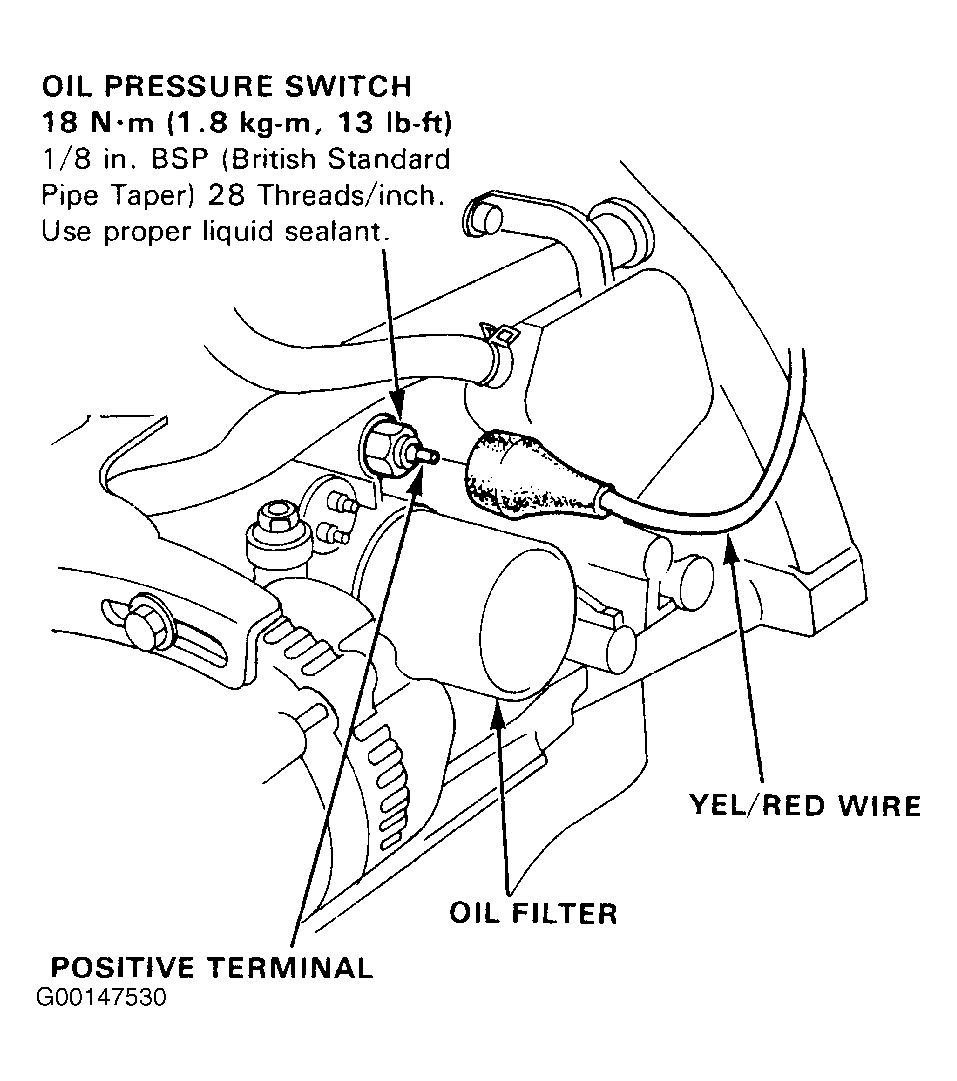

| Oil Pressure Switch | On engine block, to rear of alternator. See Figure . |

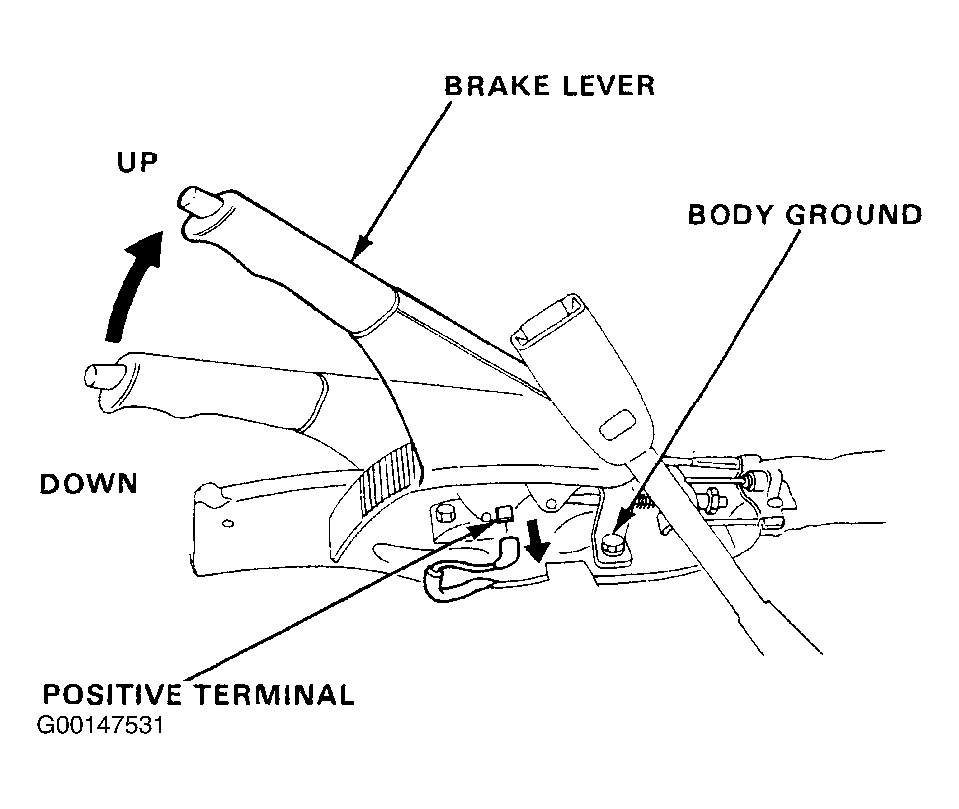

| Parking Brake Switch | Below parking brake lever. See Figure . |
| Passenger Compartment Fuse/Relay Box | Below left side of instrument panel. See Fig 2 and Fig 3 . |
| Seat Belt Switch | In seat belt buckle. |
