CODE 3 - MAP Sensor Circuit

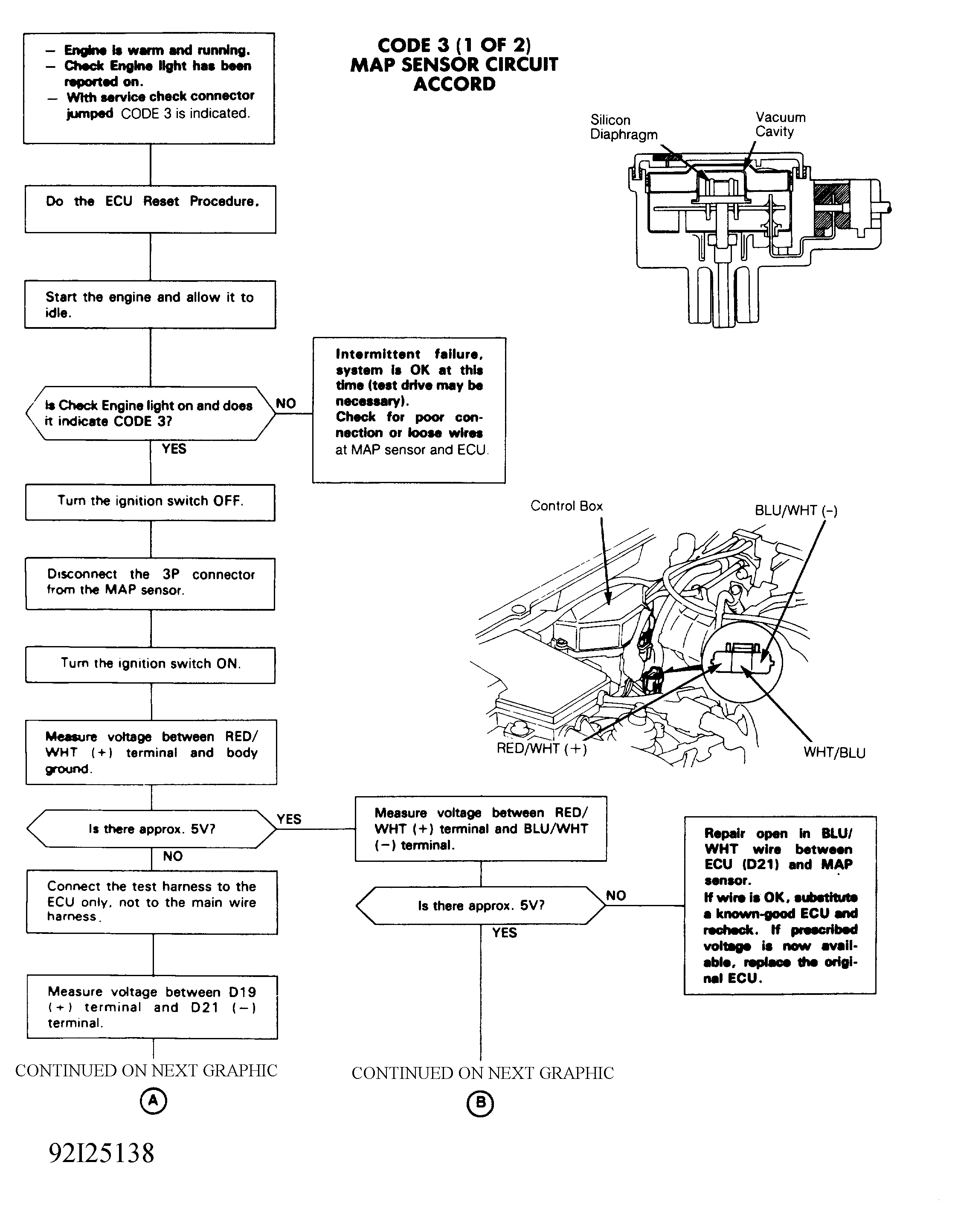

Fig 1: Code 3 Chart (1 of 2) - MAP Sensor Circuit

G92I25138

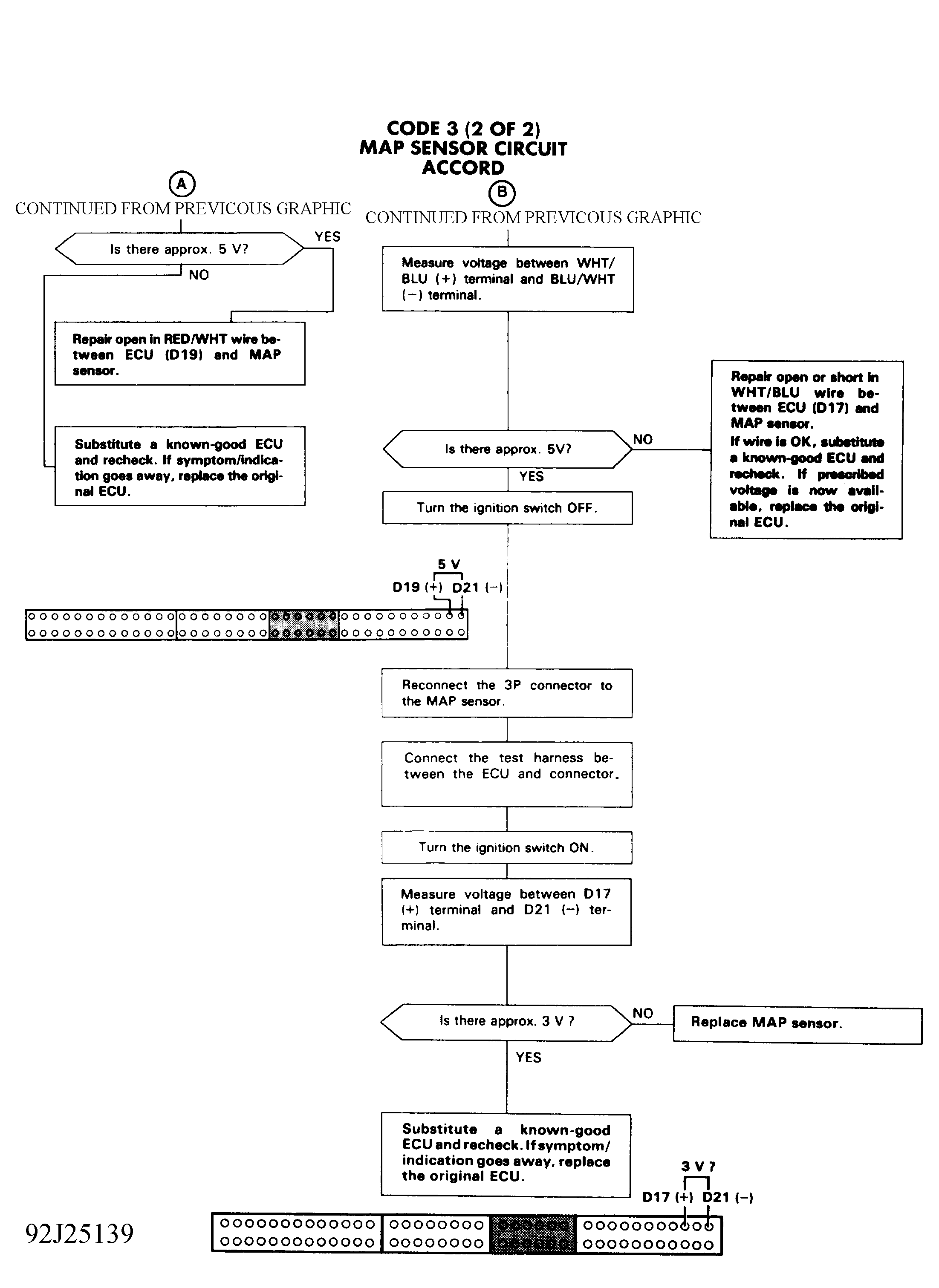

Fig 2: Code 3 Chart (2 of 2) - MAP Sensor Circuit

G92J25139
