Code/No Code - Check Engine Light Stays On

NOTE: After repair, remove jumper wire, test drive vehicle and recheck for trouble code(s).

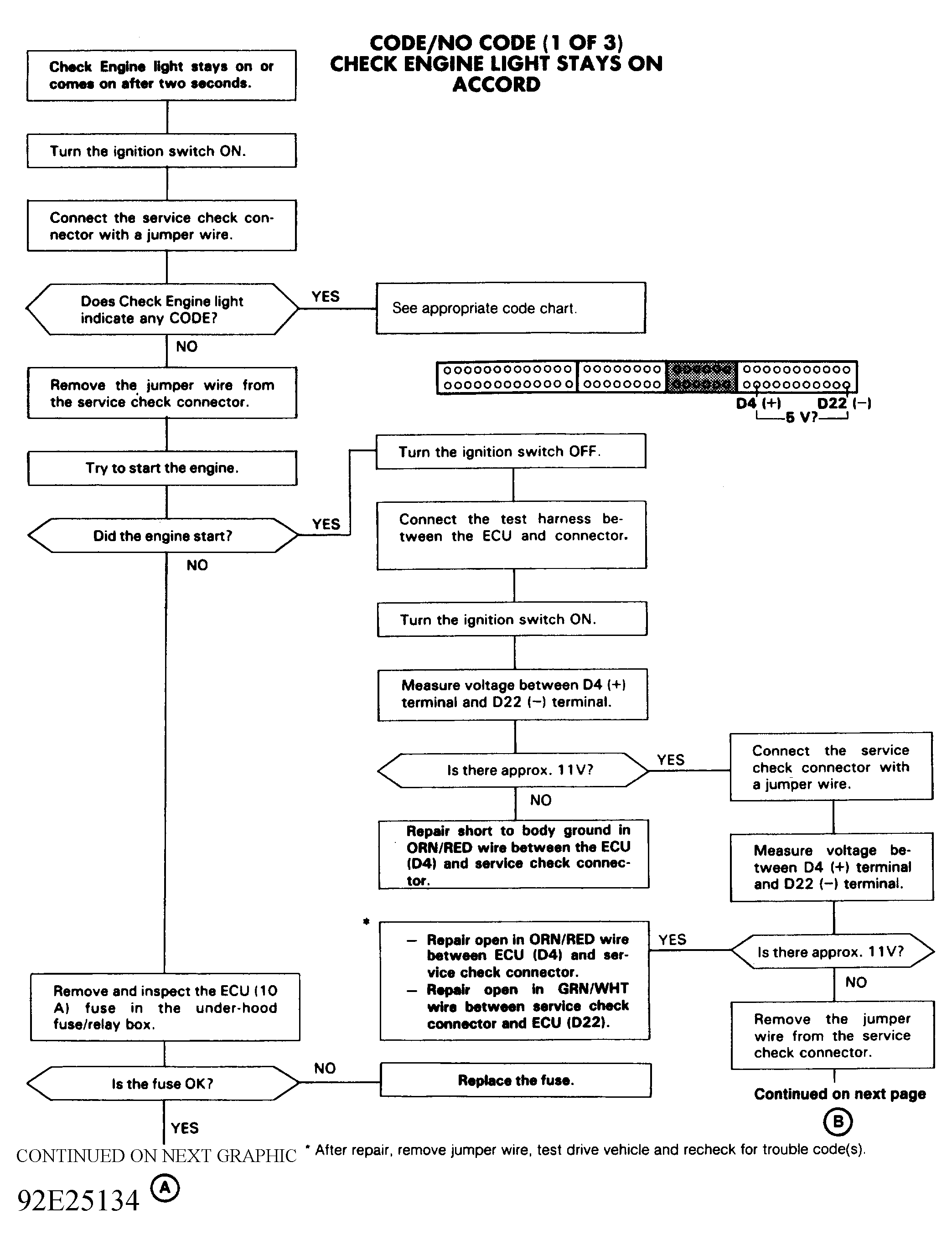

Fig 1: Code/No Code Chart (1 OF 3) - CHECK ENGINE Light Stays On

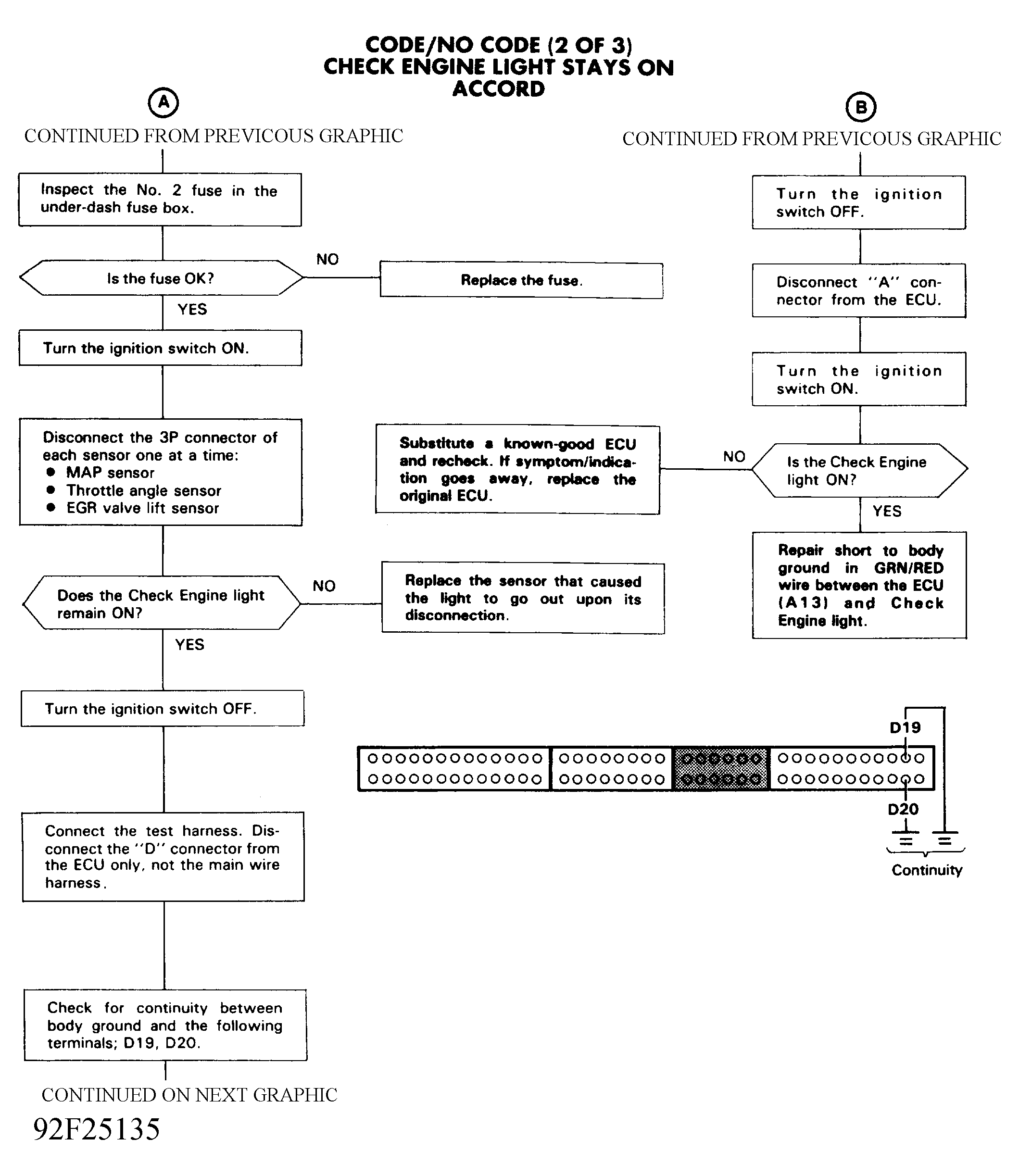

Fig 2: Code/No Code Chart (2 OF 3) - CHECK ENGINE Light Stays On

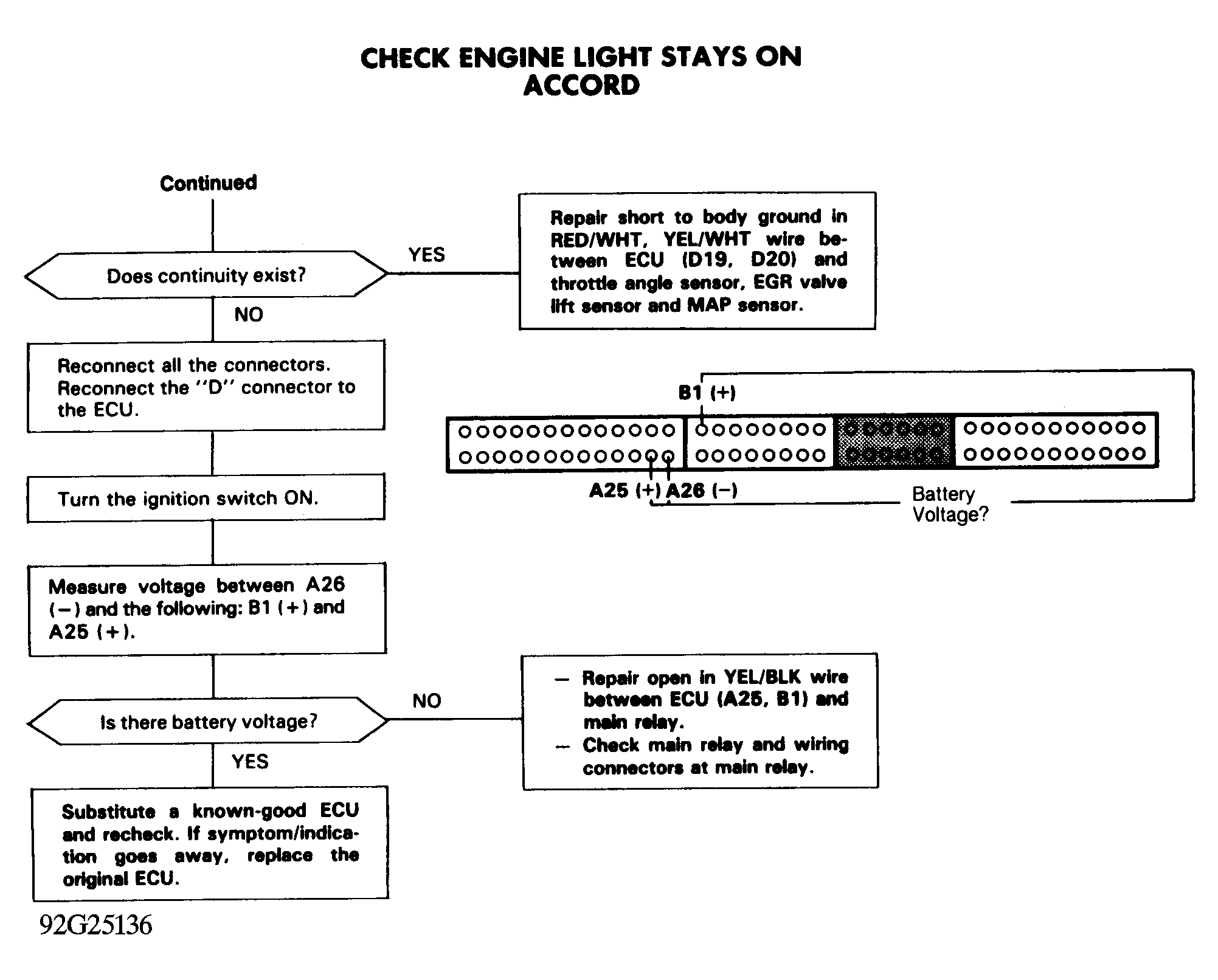

Fig 3: Code/No Code Chart (3 OF 3) - CHECK ENGINE Light Stays On
