Code 20 - Electrical Load Detector (Eld) Circuit

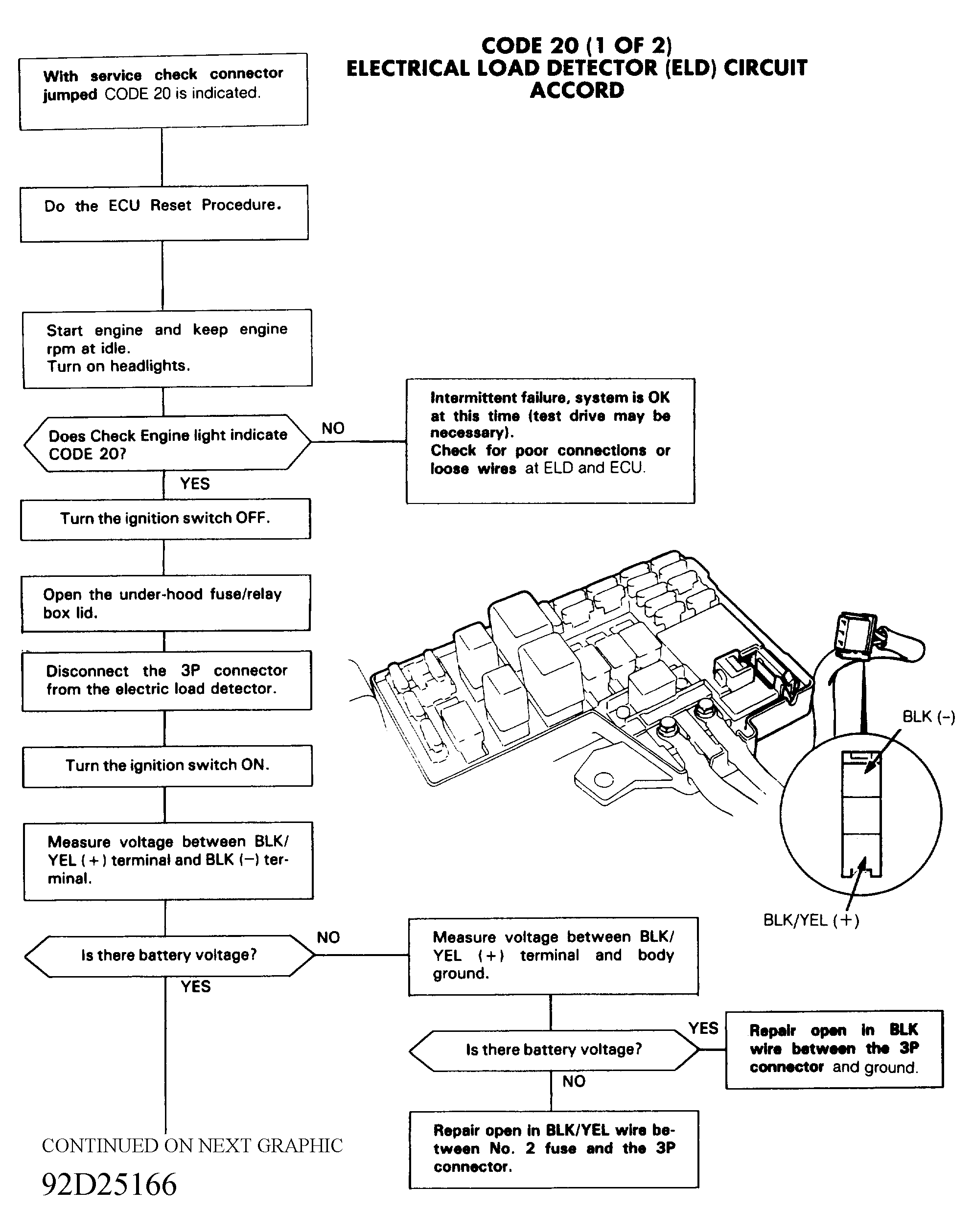

Fig 1: Code 20 Chart (1 Of 2) - Electrical Load Detector (ELD) Circuit

G92D25166

Fig 2: Code 20 Chart (1 Of 2) - Electrical Load Detector (ELD) Circuit

G92E25167
