Code 48 - LAF Sensor Circuit (D15Z1)

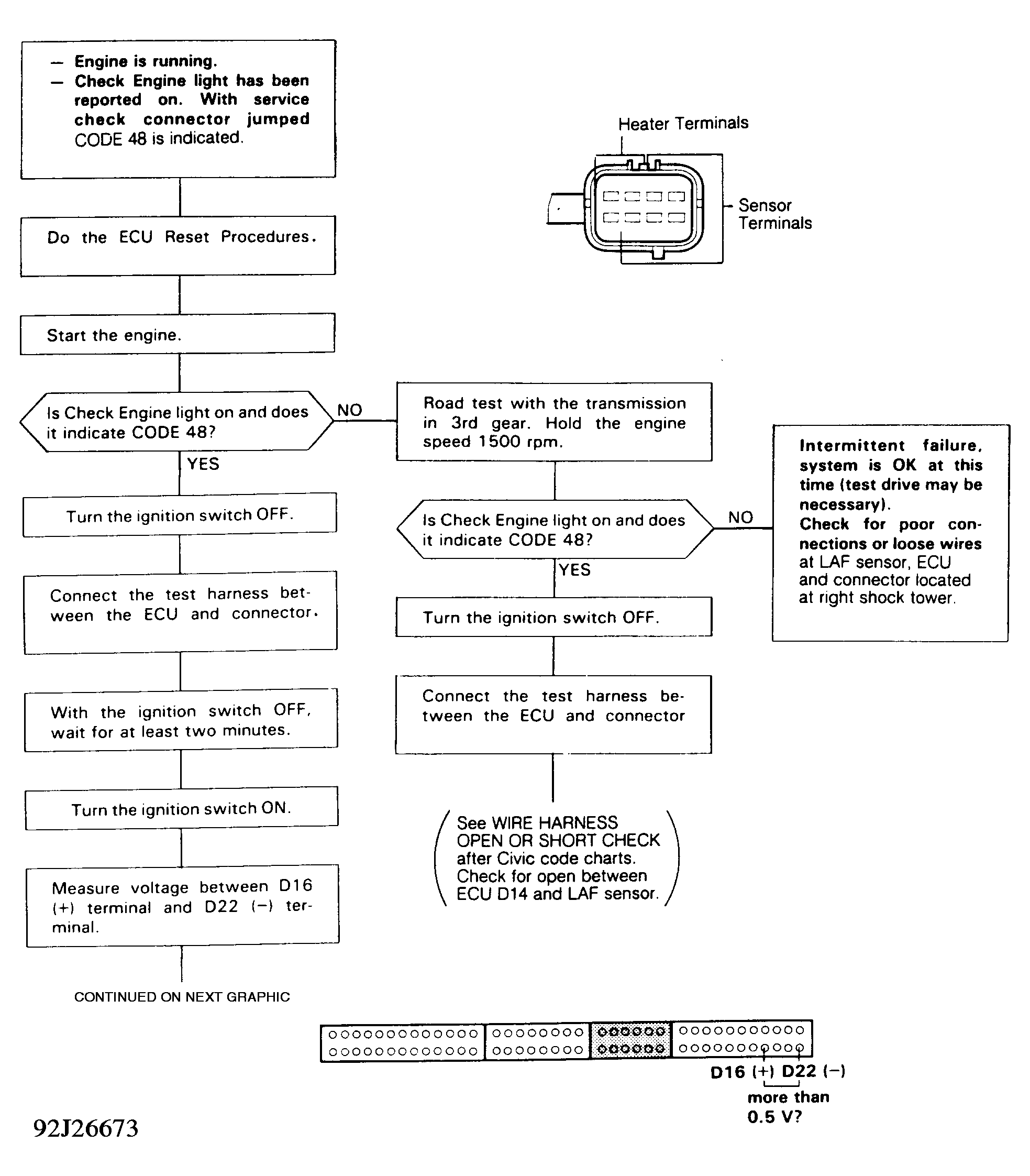

Fig 1: Code 48 Chart (1 Of 3) - LAF Sensor CKT. (D15Z1)

Fig 2: Code 48 Chart (2 Of 3) - LAF Sensor CKT. (D15Z1)

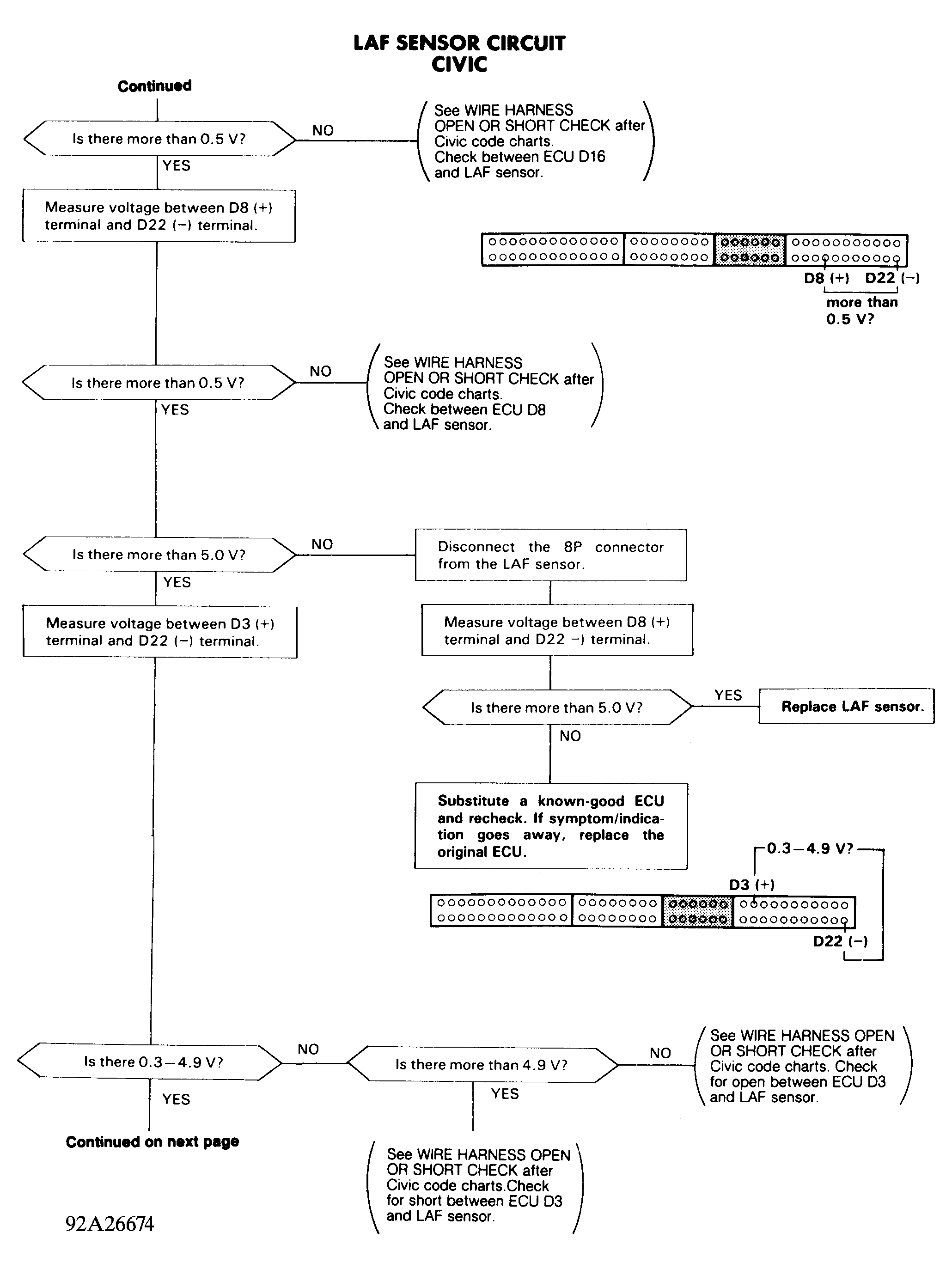

Fig 3: Code 48 Chart (3 Of 3) - LAF Sensor CKT. (D15Z1)
