Code 19 - Lock-Up Control Solenoid Circuits

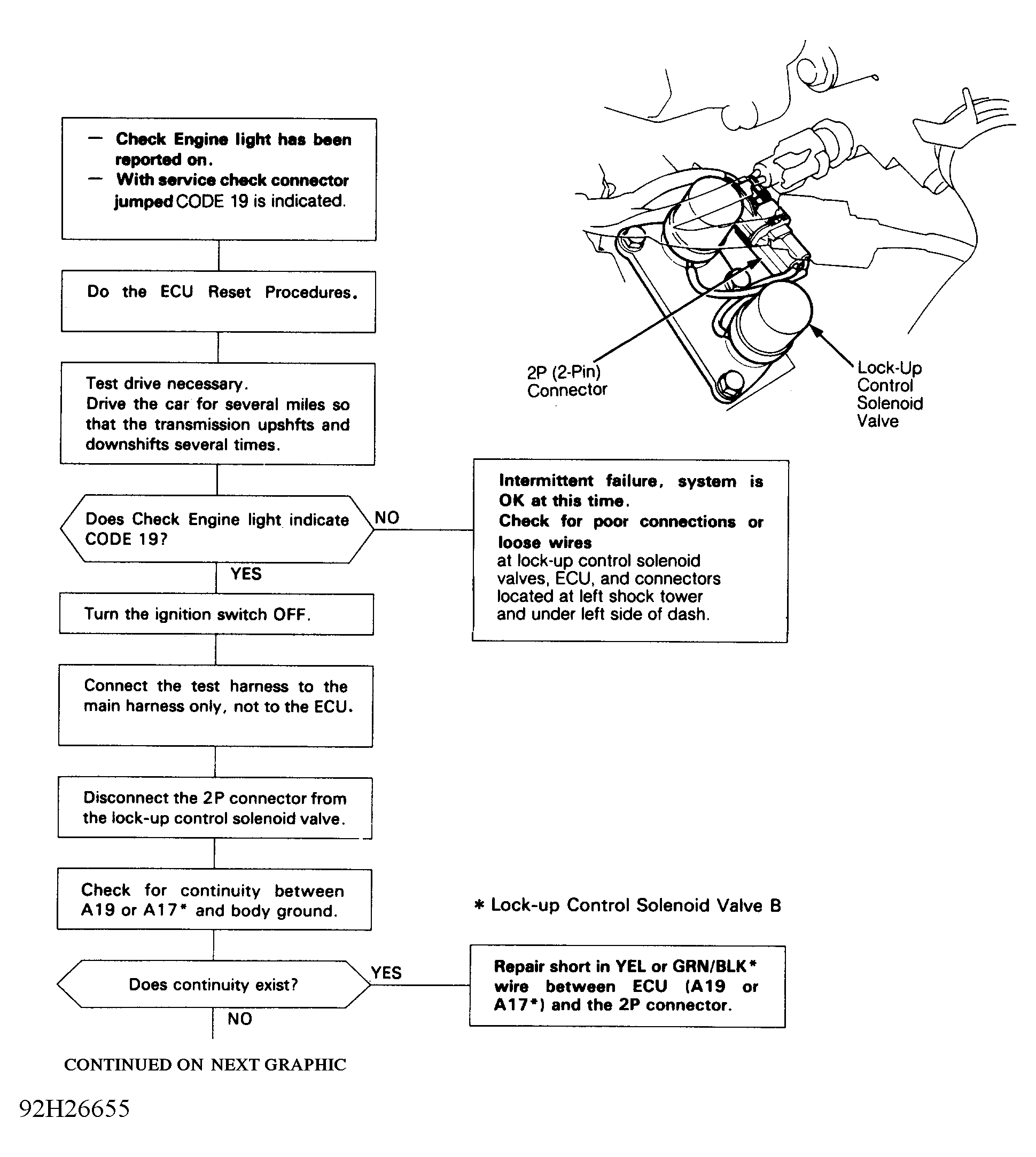

Fig 1: Code 19 Chart (1 Of 2) - Lock-Up Control Solenoid CKT.

G92H26655

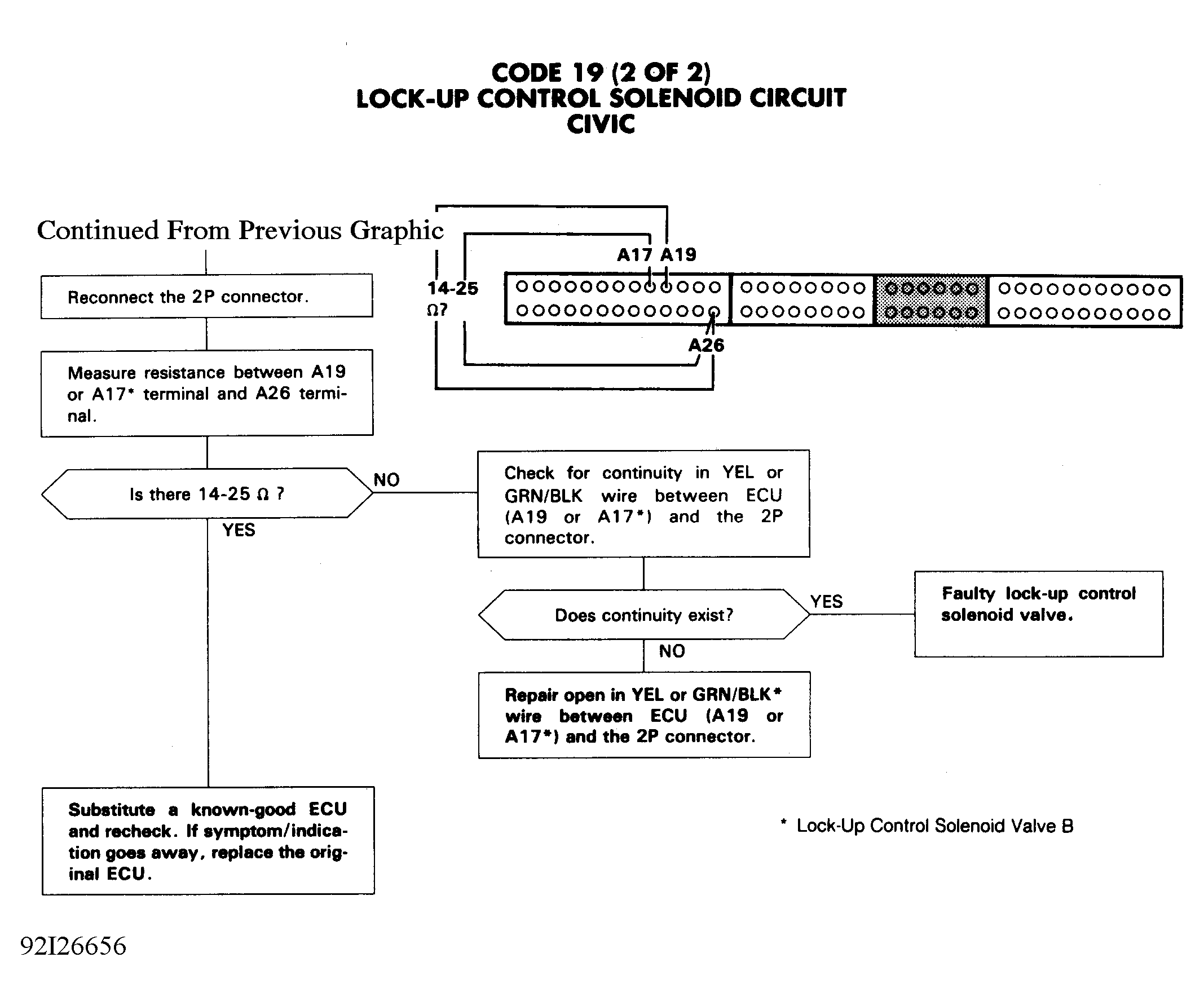

Fig 2: Code 19 Chart (2 Of 2) - Lock-Up Control Solenoid CKT.

G92I26656
