Code/No Code - Check Engine Light Stays On

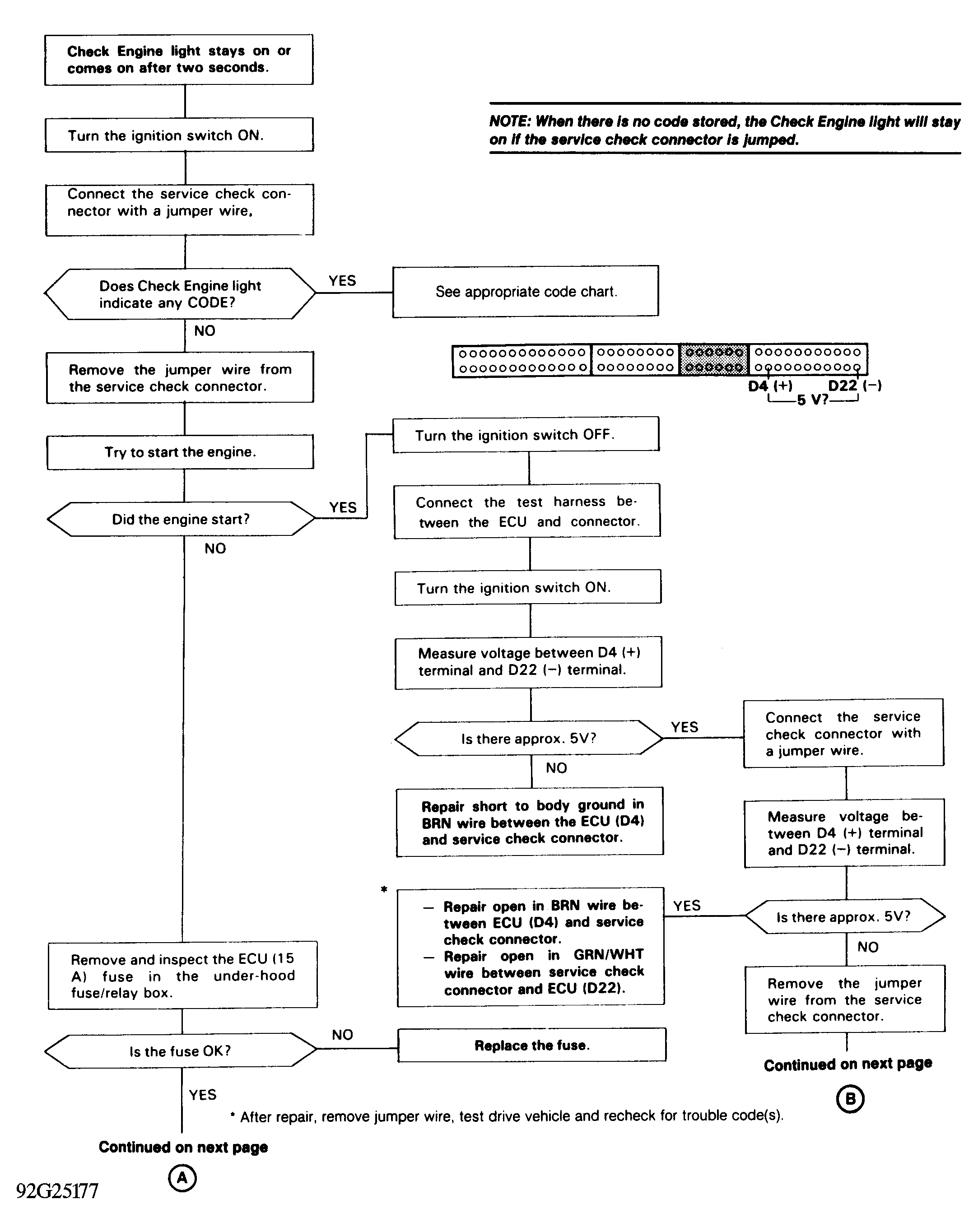

Fig 1: Code/No Code Chart (1 Of 3) - CHECK ENGINE Light Stays On

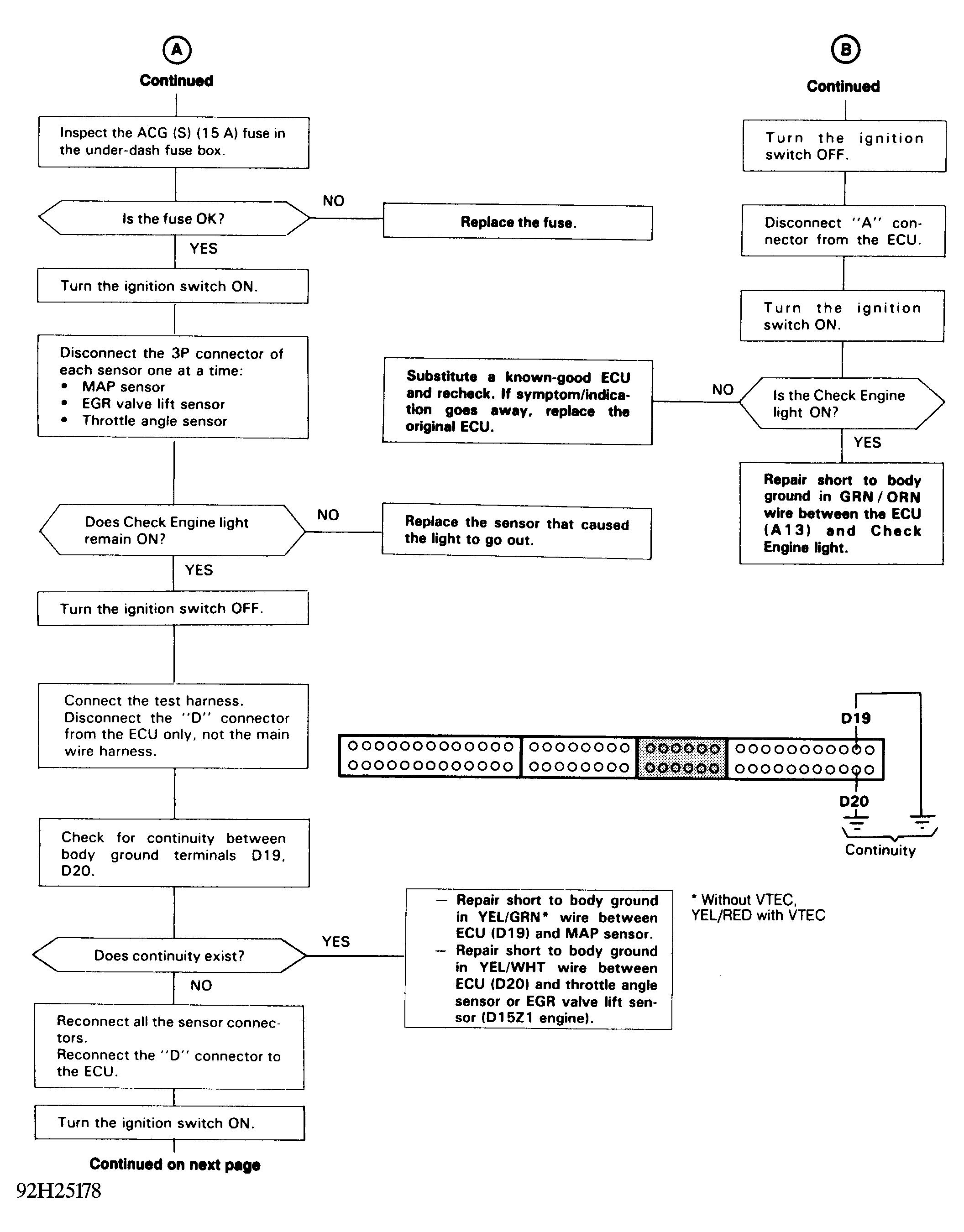

Fig 2: Code/No Code Chart (2 Of 3) - CHECK ENGINE Light Stays On

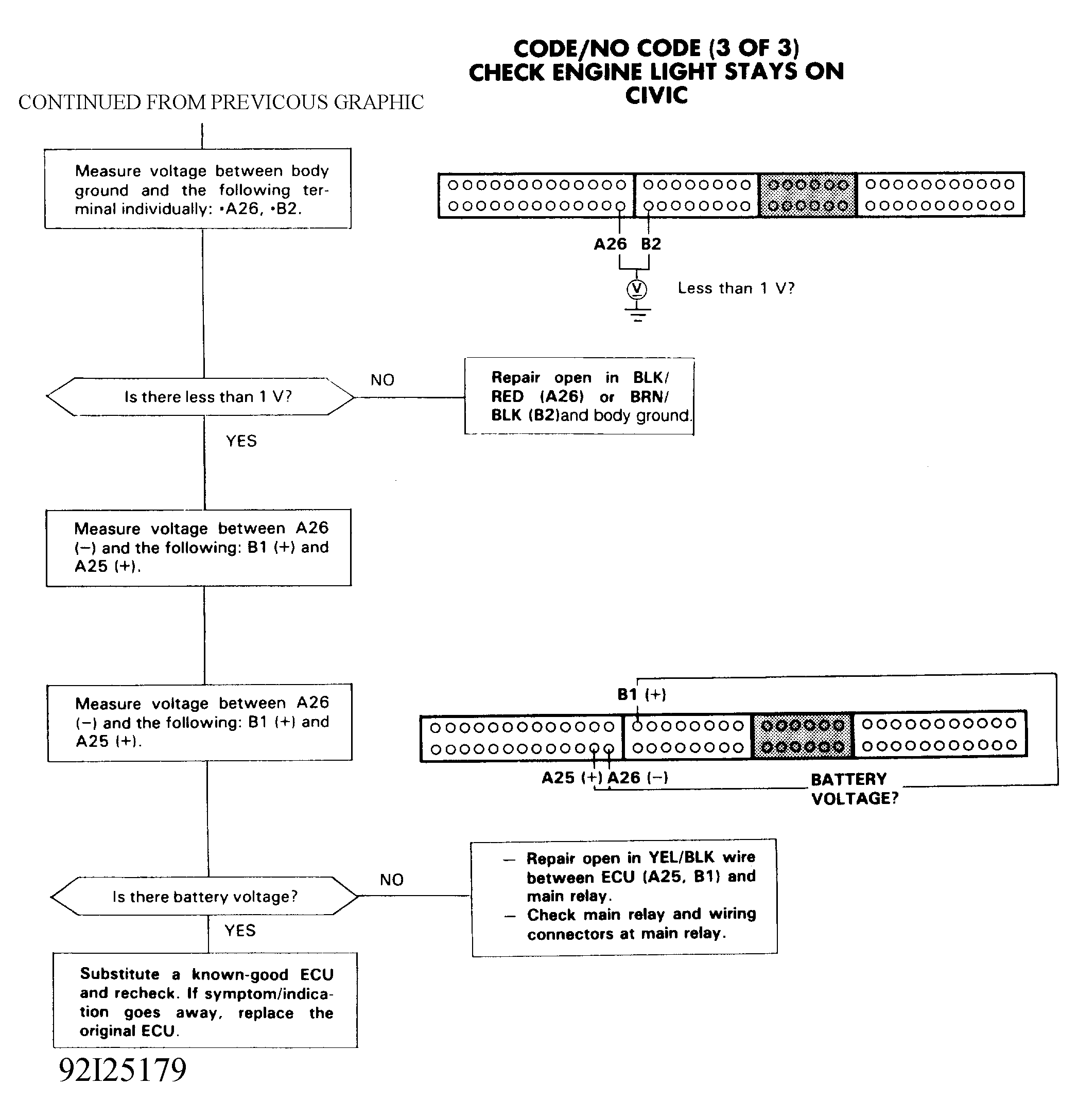

Fig 3: Code/No Code Chart (3 Of 3) - CHECK ENGINE Light Stays On
