Engine Controls - Tests W/Codes
›
Trouble Code Charts
›
Code 1 - Oxygen Sensor Circuit
Code 1 - Oxygen Sensor Circuit

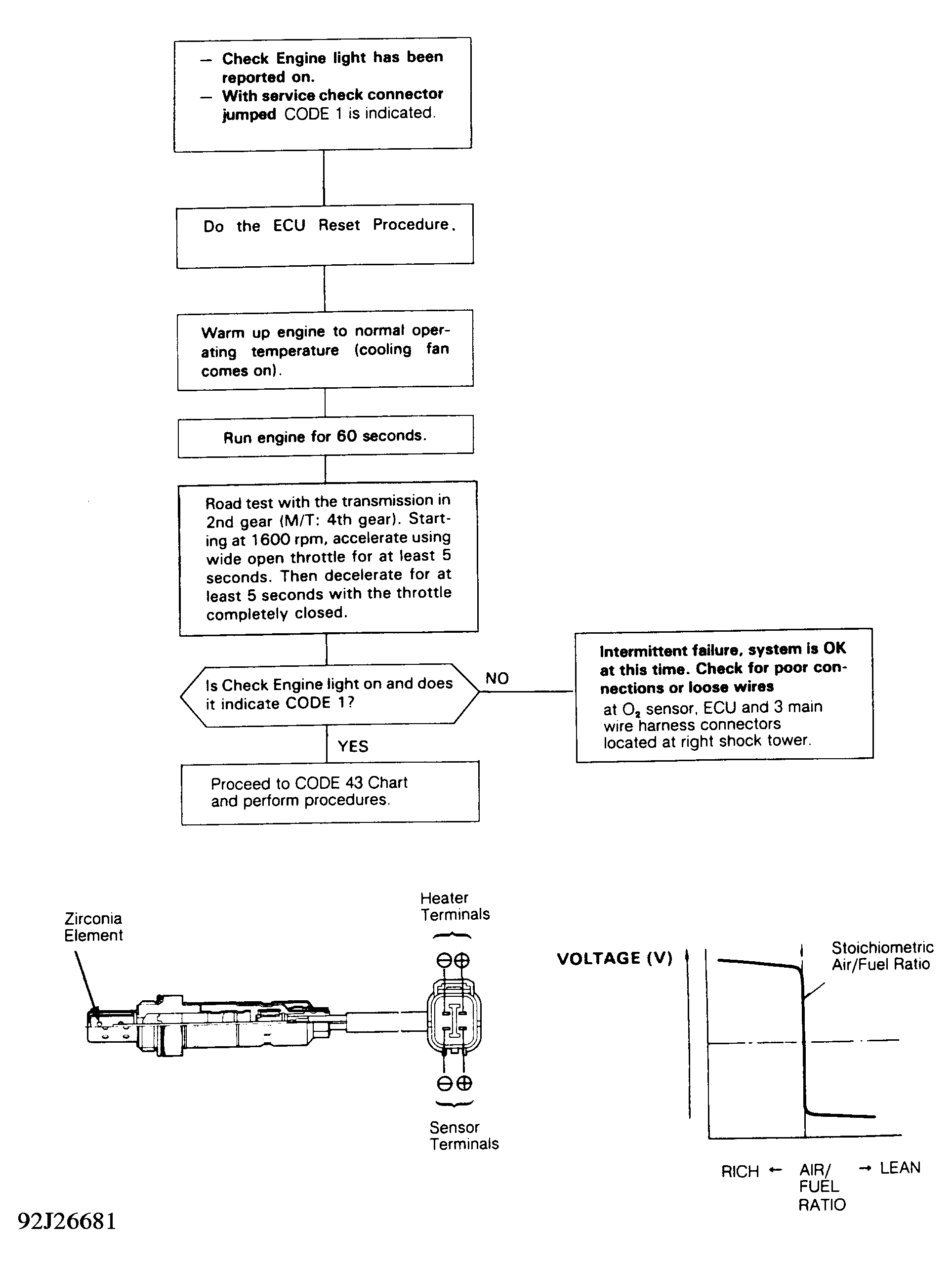

Fig 1: Code 1 Chart - Oxygen Sensor Circuit
