Code 15 - Ignition Output Signal

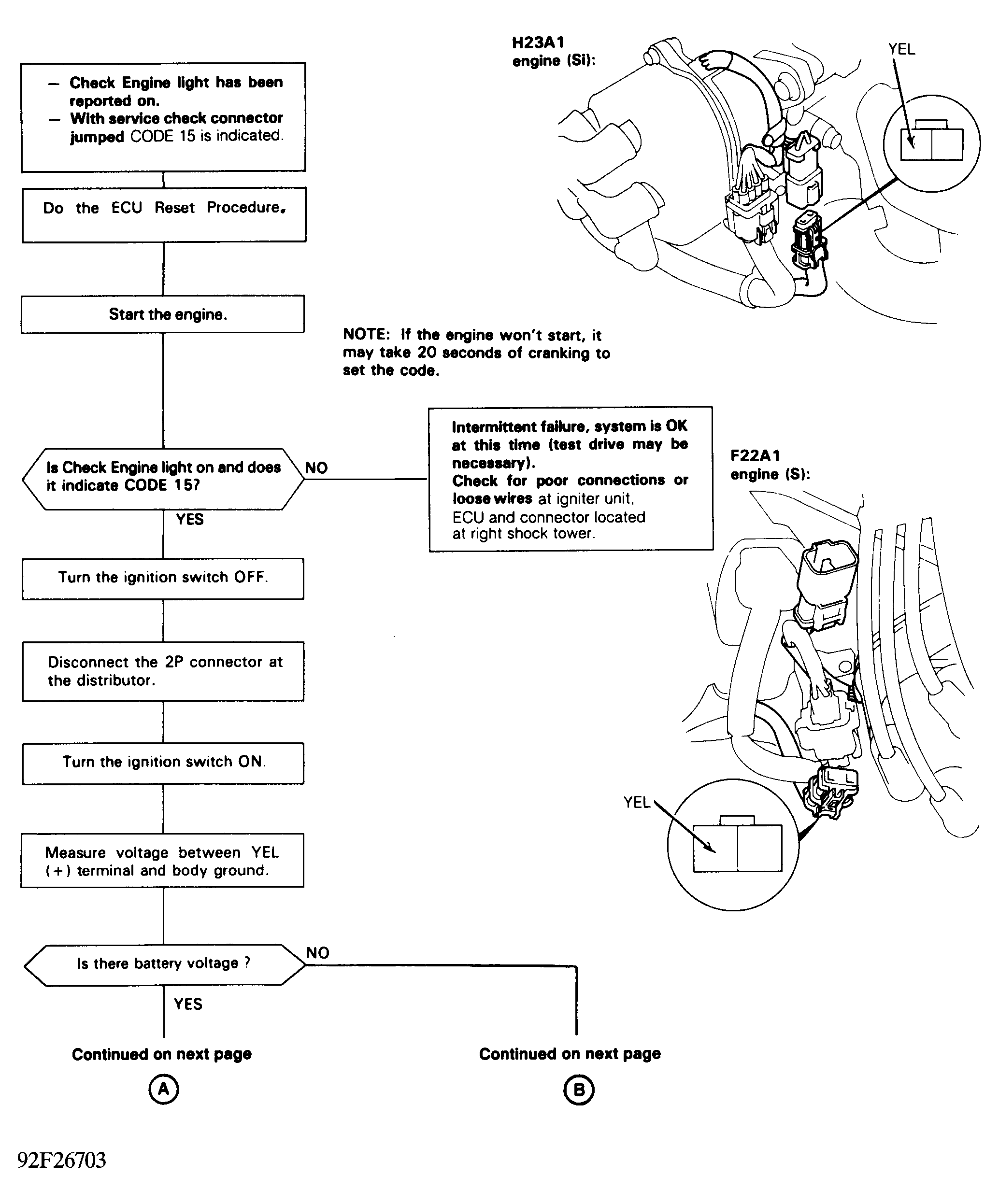

Fig 1: Code 15 Chart (1 Of 2) - Ignition Output Signal

G92F26703

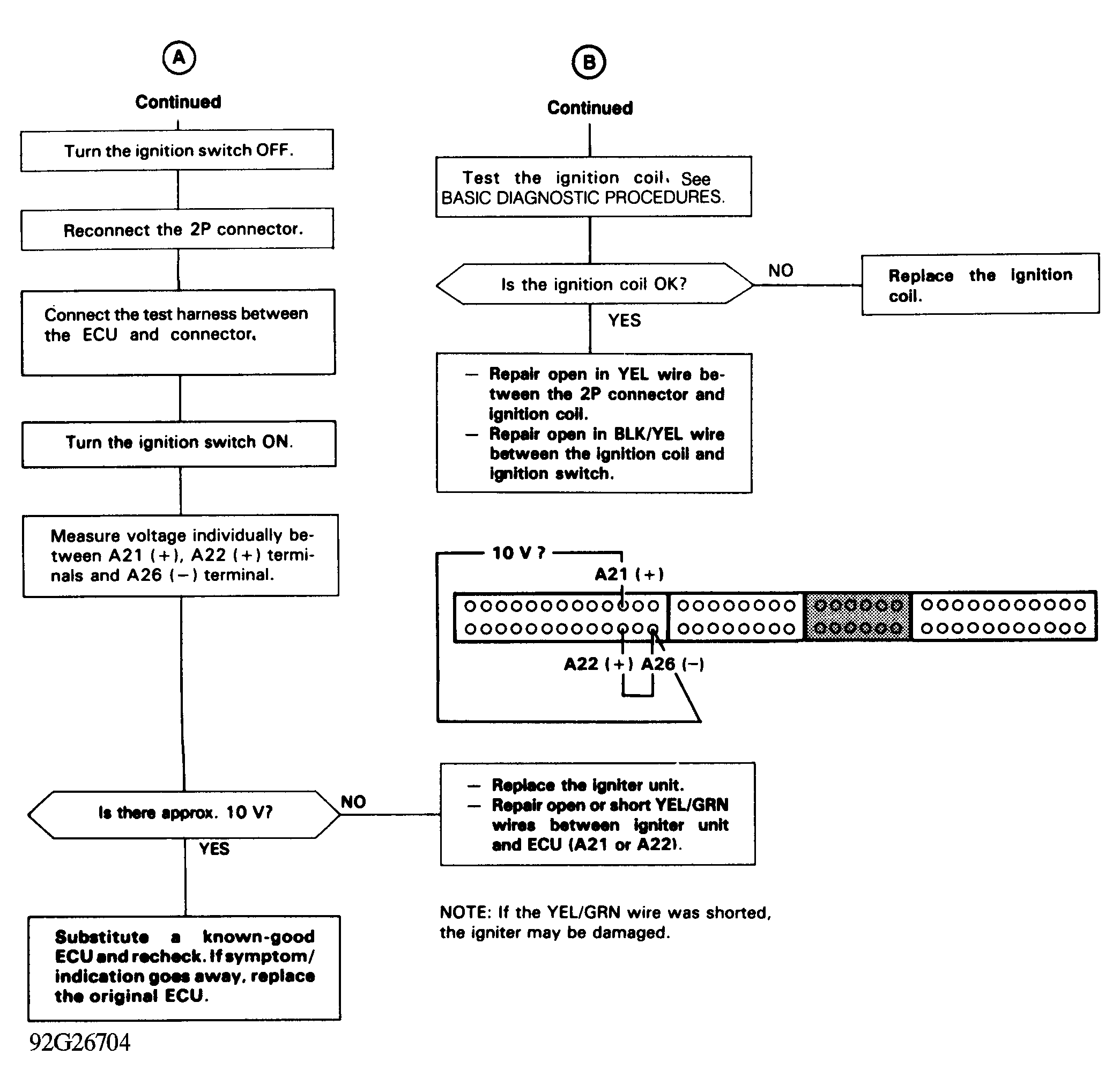

Fig 2: Code 15 Chart (2 Of 2) - Ignition Output Signal

G92G26704
