Code 16 - Injector Circuit
Code 16 - Injector Circuit

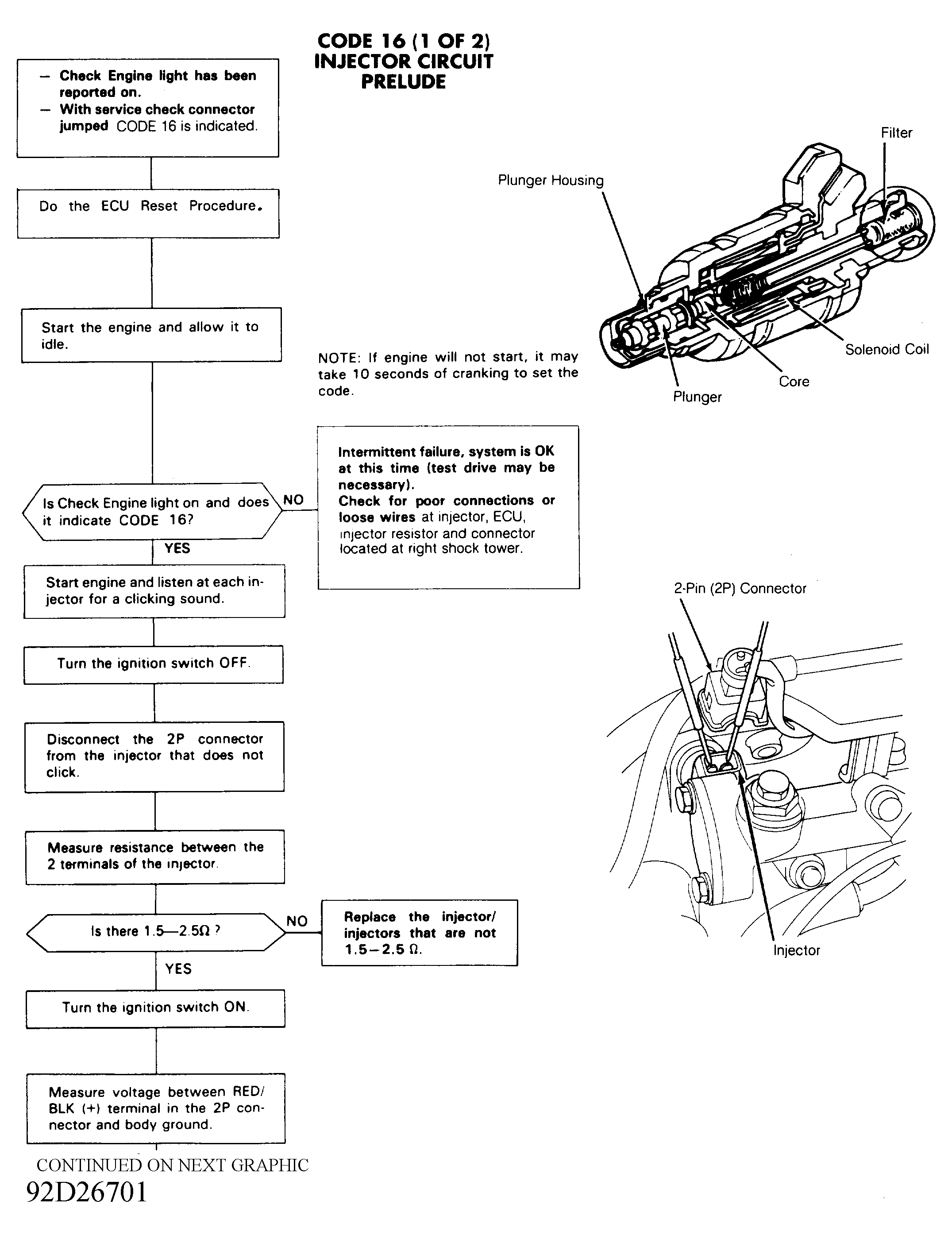

Fig 1: Code 16 Chart (1 Of 2) - Injector Circuit

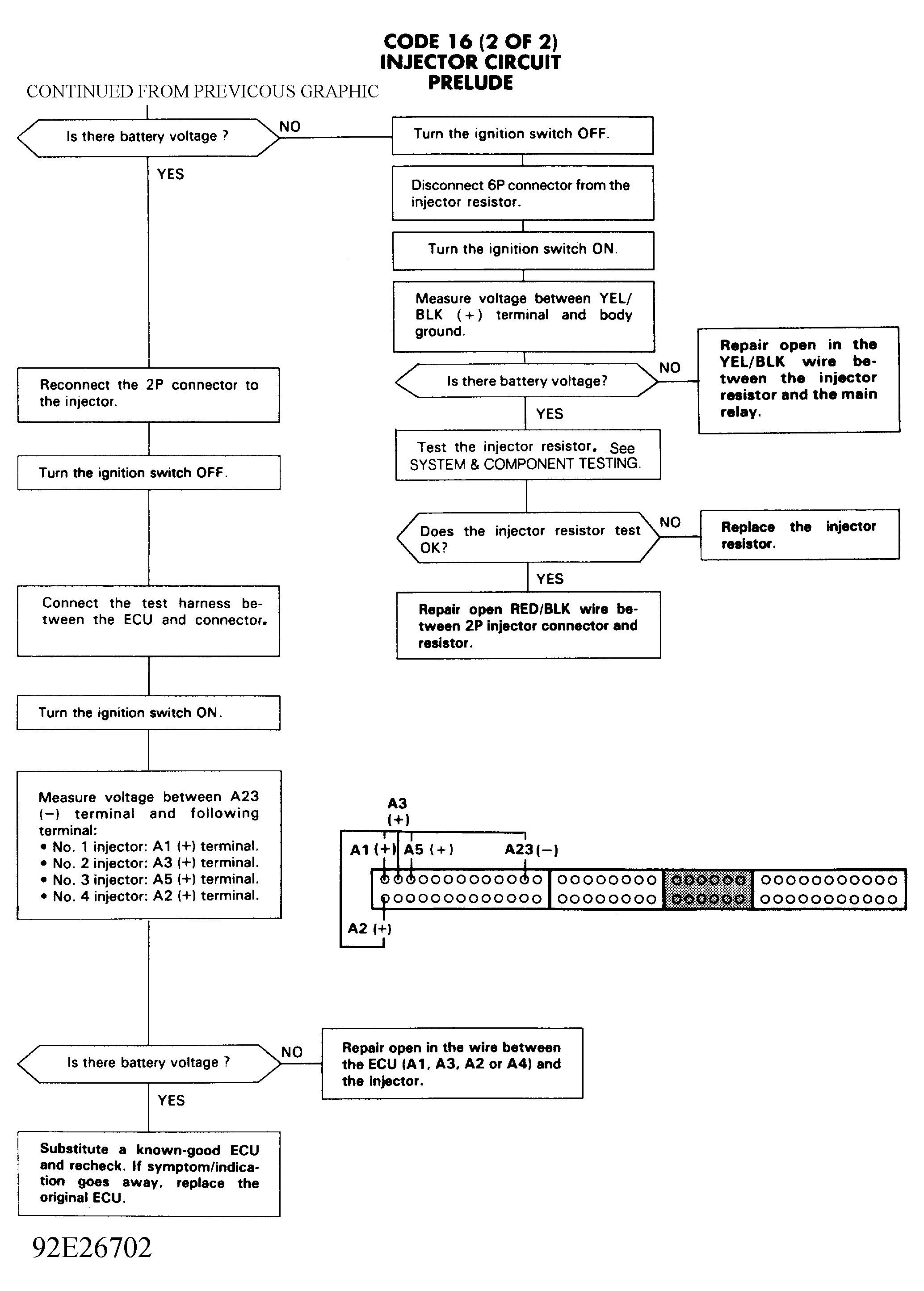

Fig 2: Code 16 Chart (2 Of 2) - Injector Circuit
