Code 23 - Knock Sensor Circuit

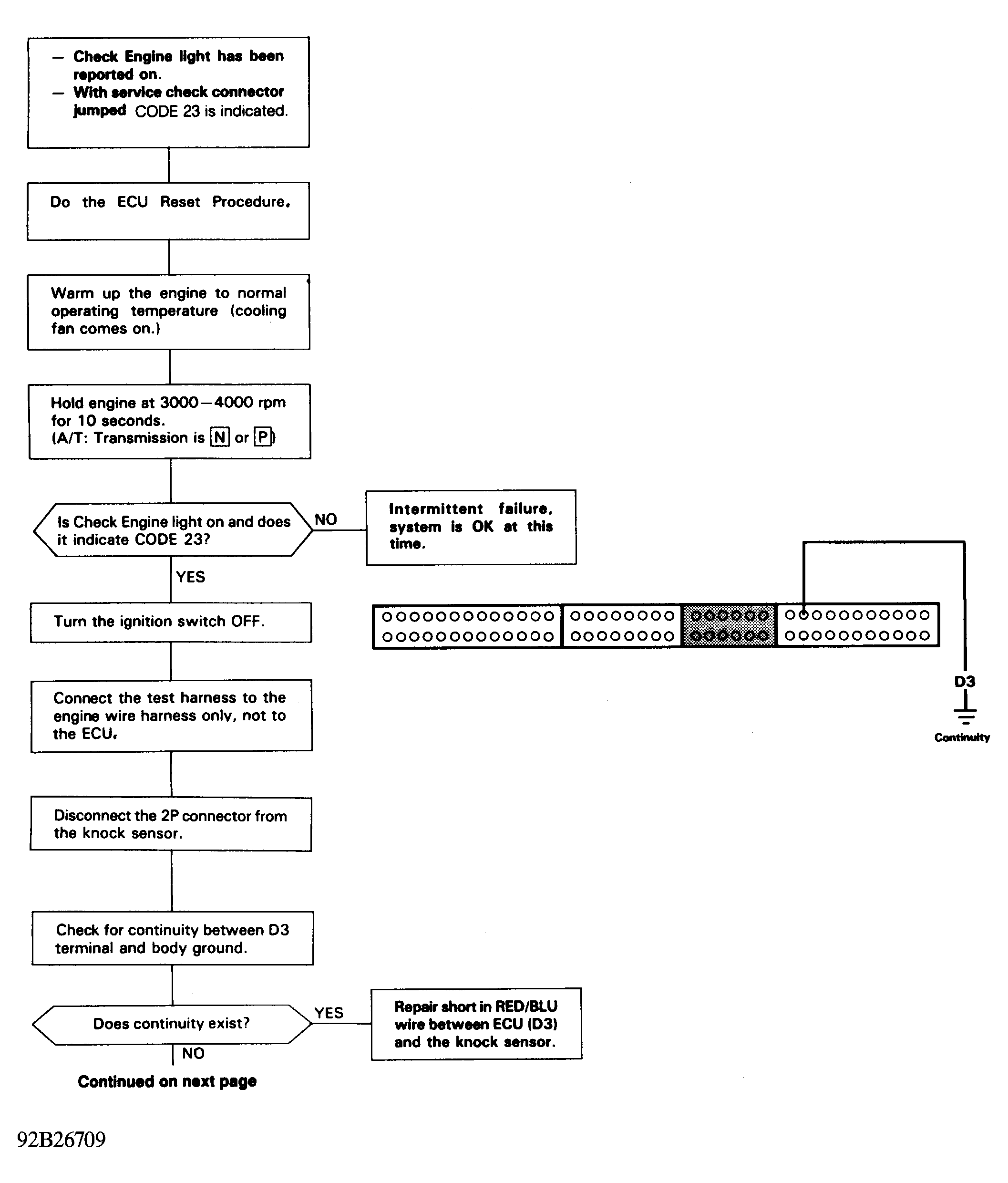

Fig 1: Code 23 Chart (1 Of 2) - Knock Sensor Circuit

G92B26709

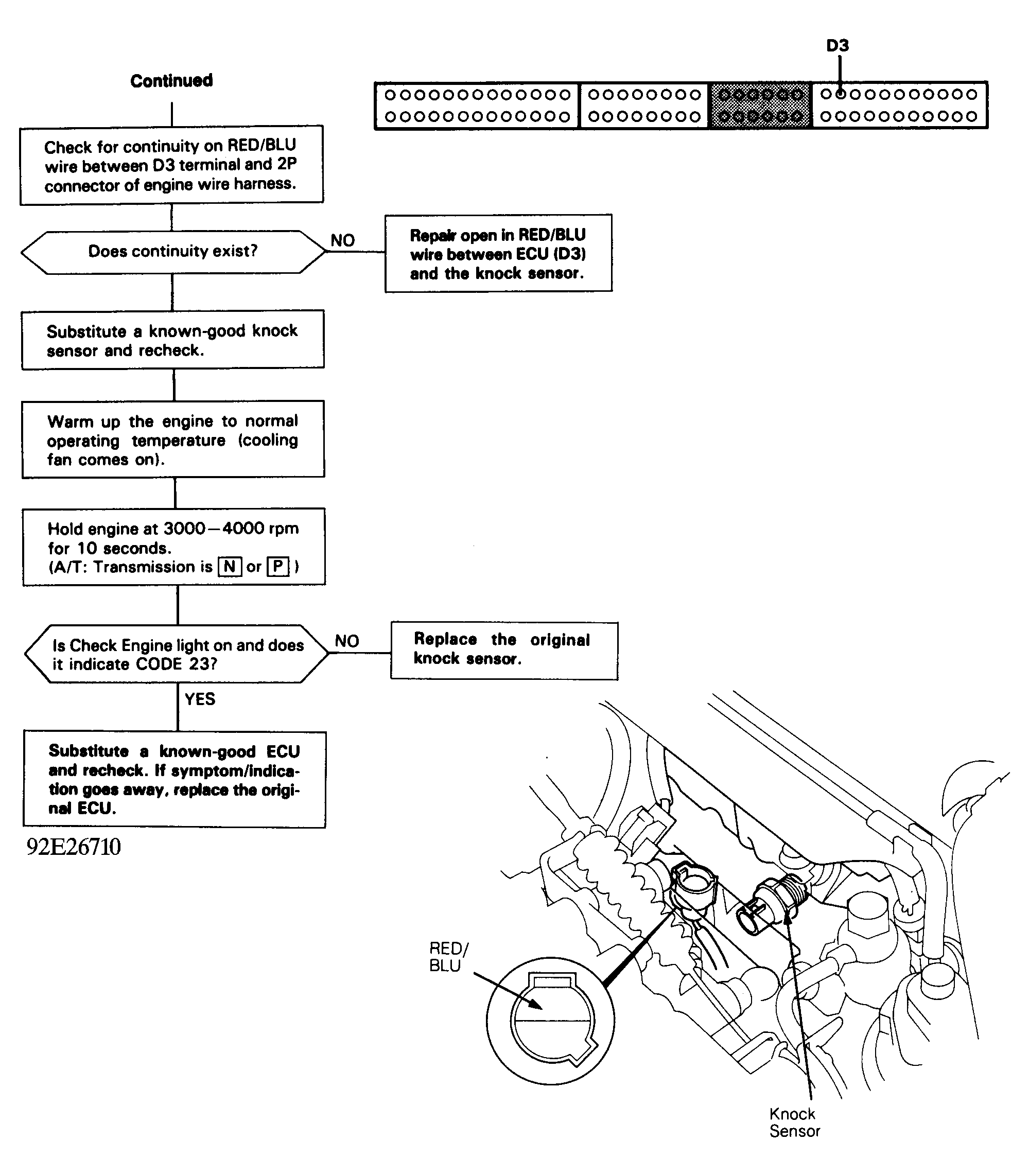

Fig 2: Code 23 Chart (2 Of 2) - Knock Sensor Circuit

G92E26710
