Code 5 - Map Sensor (Mechanical)

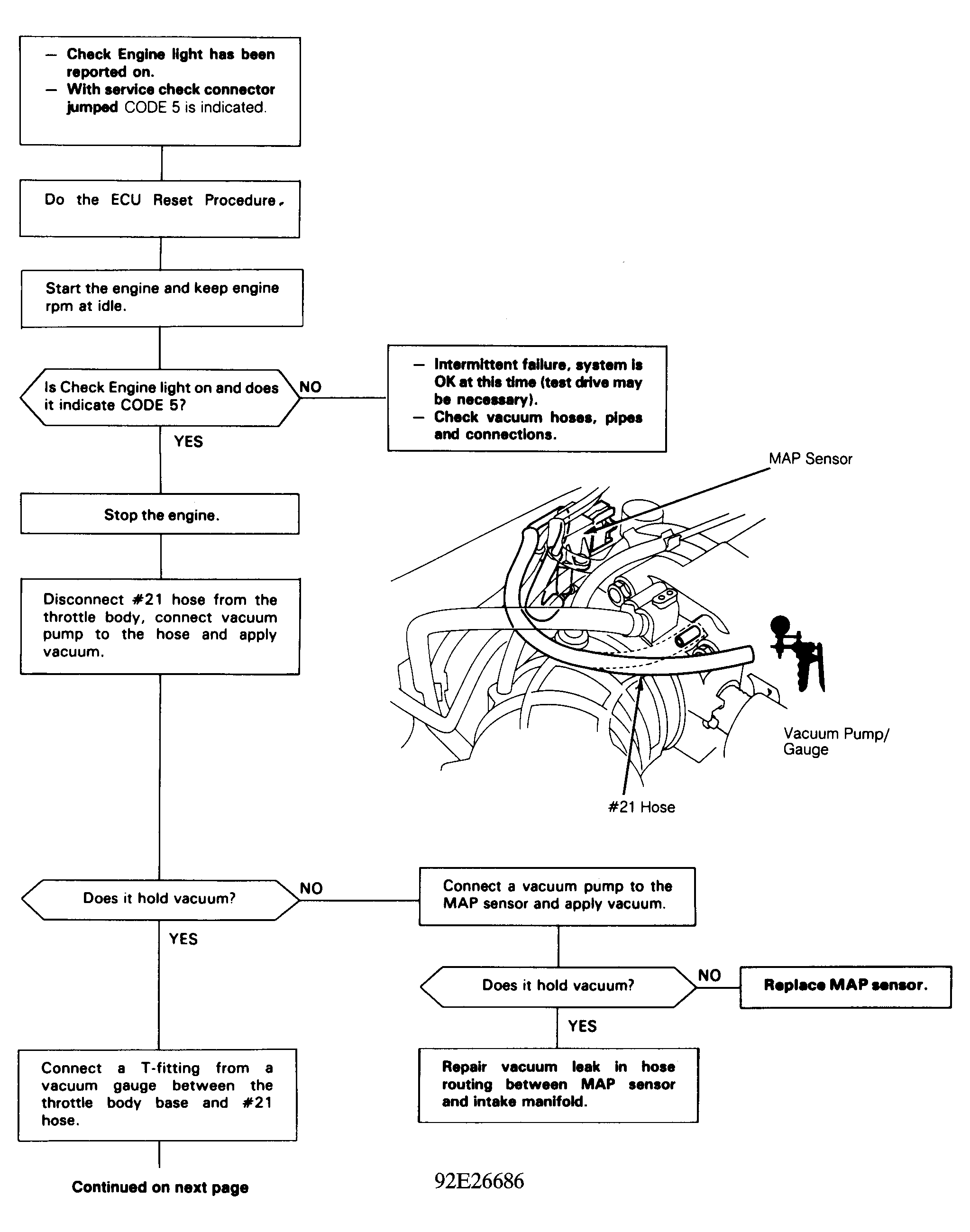

Fig 1: Code 5 Chart (1 Of 2) - MAP Sensor (Mechanical)

G92E26686

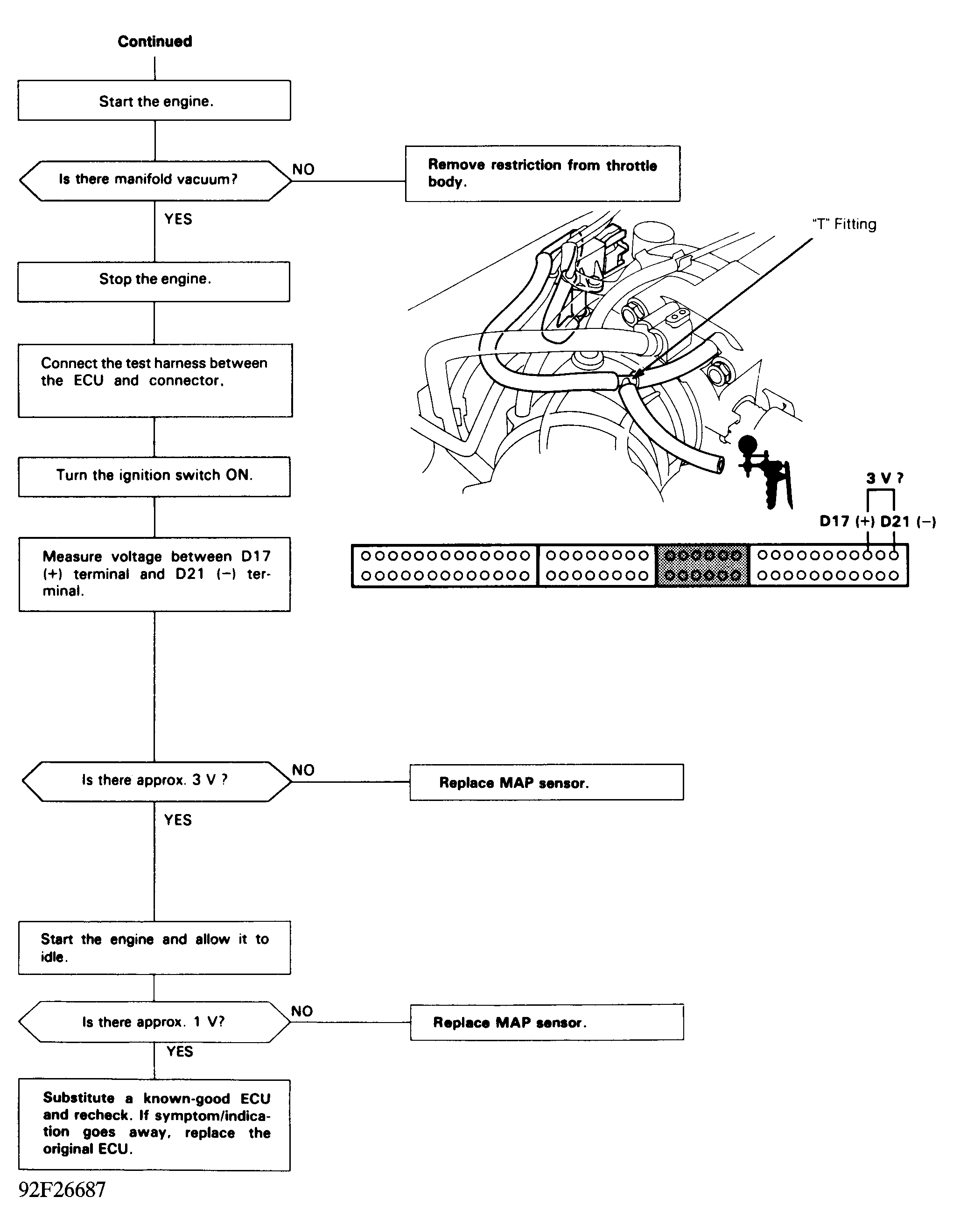

Fig 2: Code 5 Chart (2 Of 2) - MAP Sensor (Mechanical)

G92F26687
