Code 14 - Electric Air Control Valve (EACV) System
Code 14 - Electric Air Control Valve (EACV) System

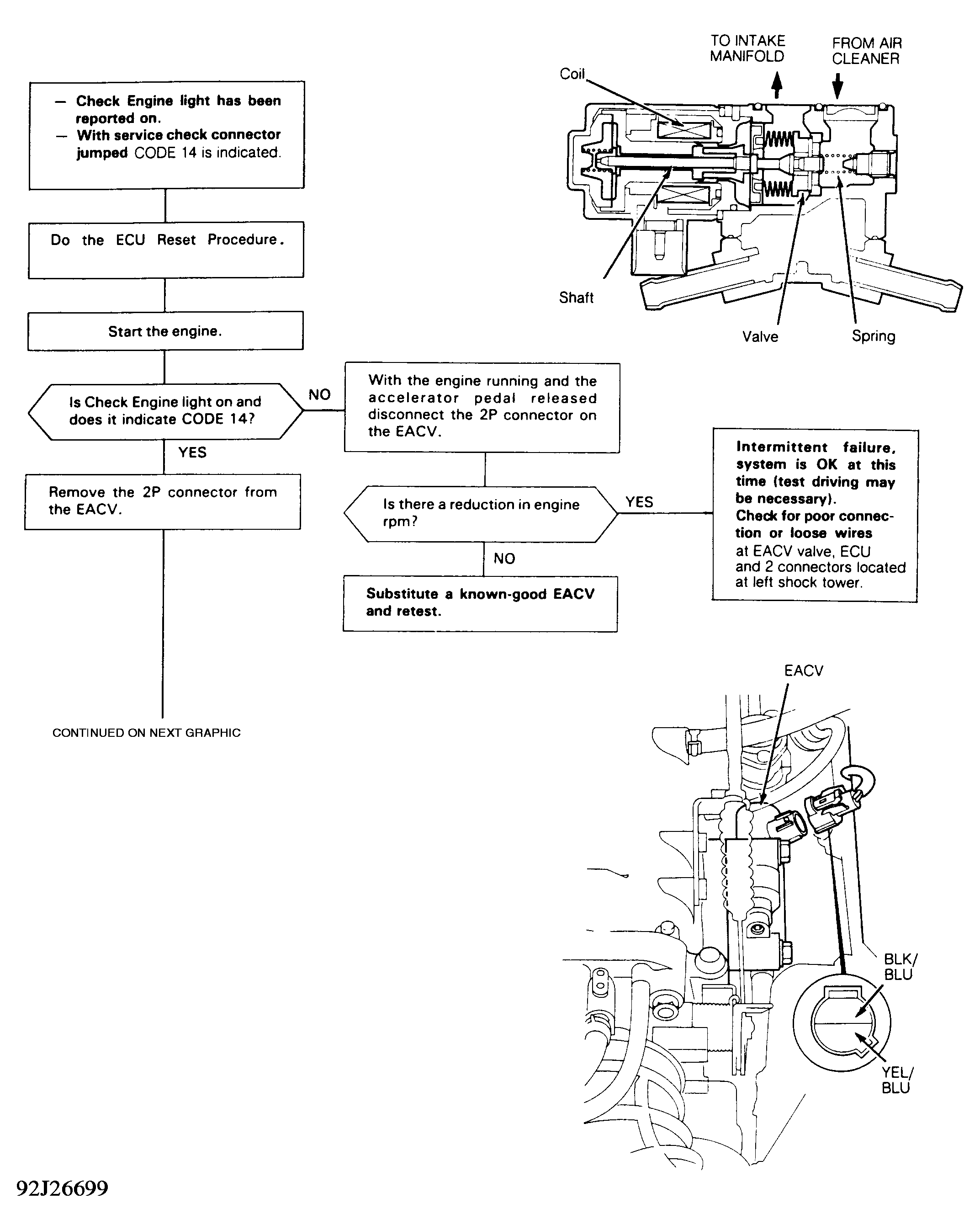

Fig 1: Code 14 Chart - (1 Of 2) Electric Air Control Valve (EACV) System

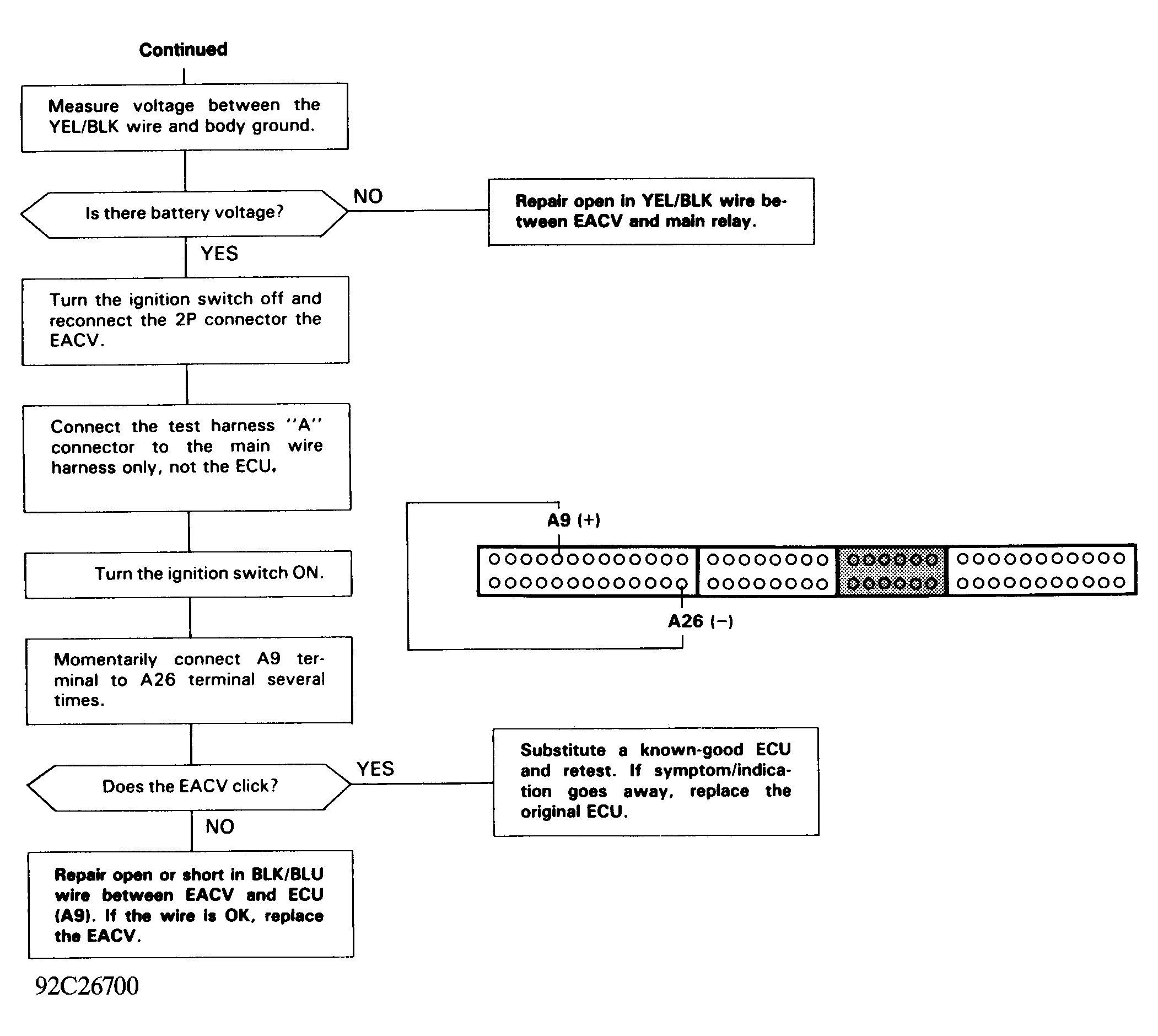

Fig 2: Code 14 Chart - (2 Of 2) Electric Air Control Valve (EACV) System
