Code 16 - Fuel Injectors

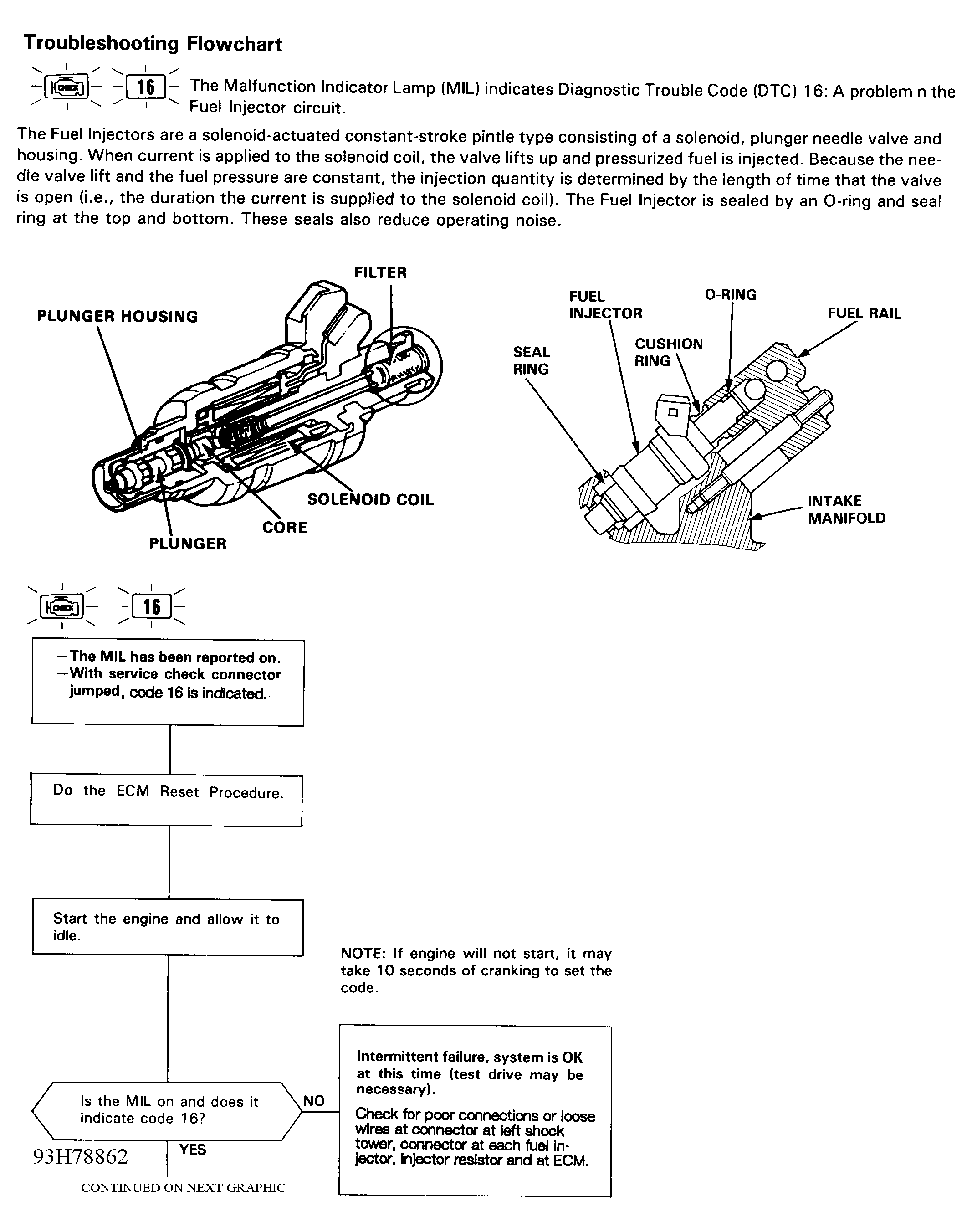

Fig 1: Code 16 Flowchart, Fuel Injectors (1 of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

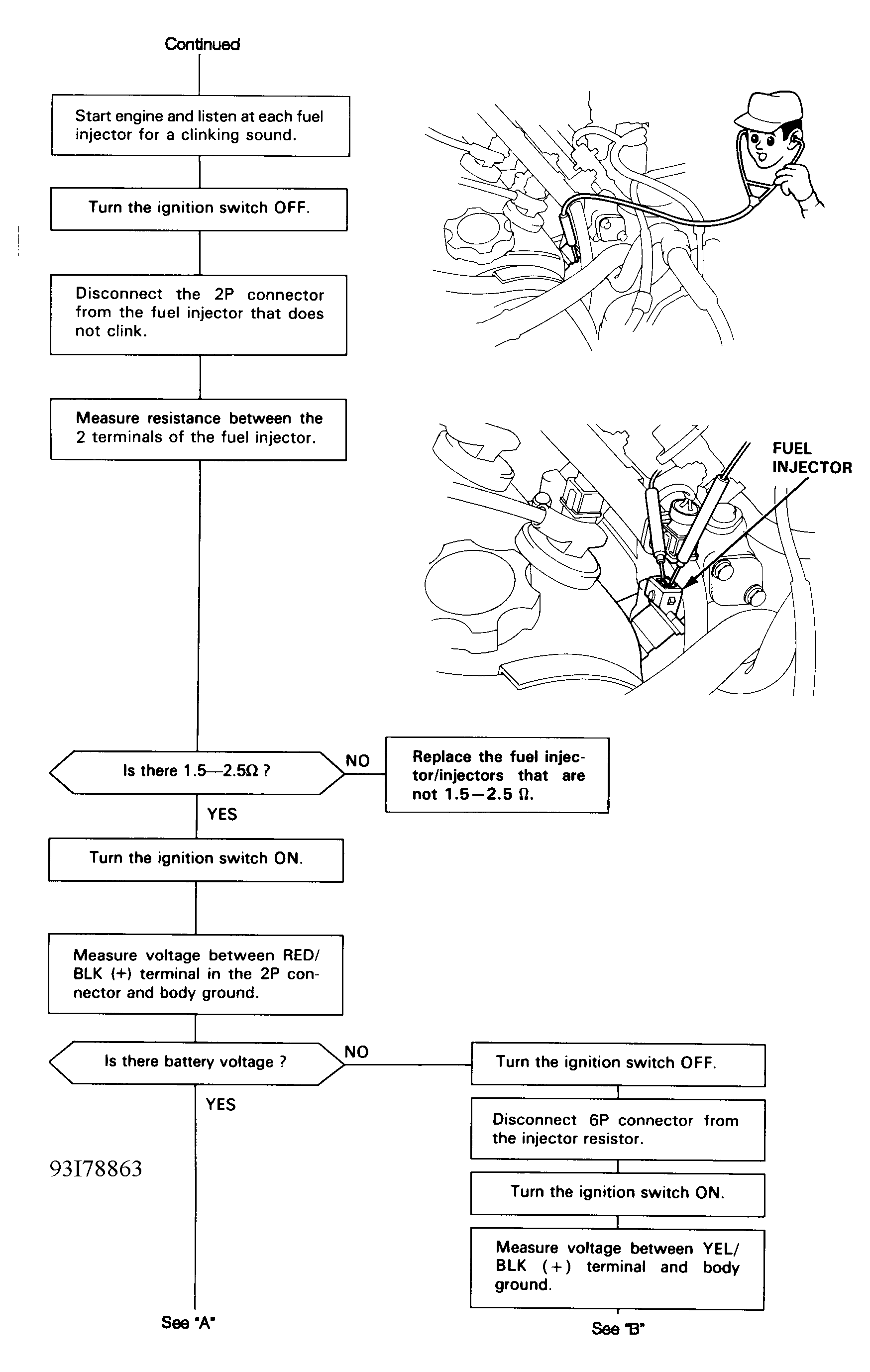

Fig 2: Code 16 Flowchart, Fuel Injectors (2 of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

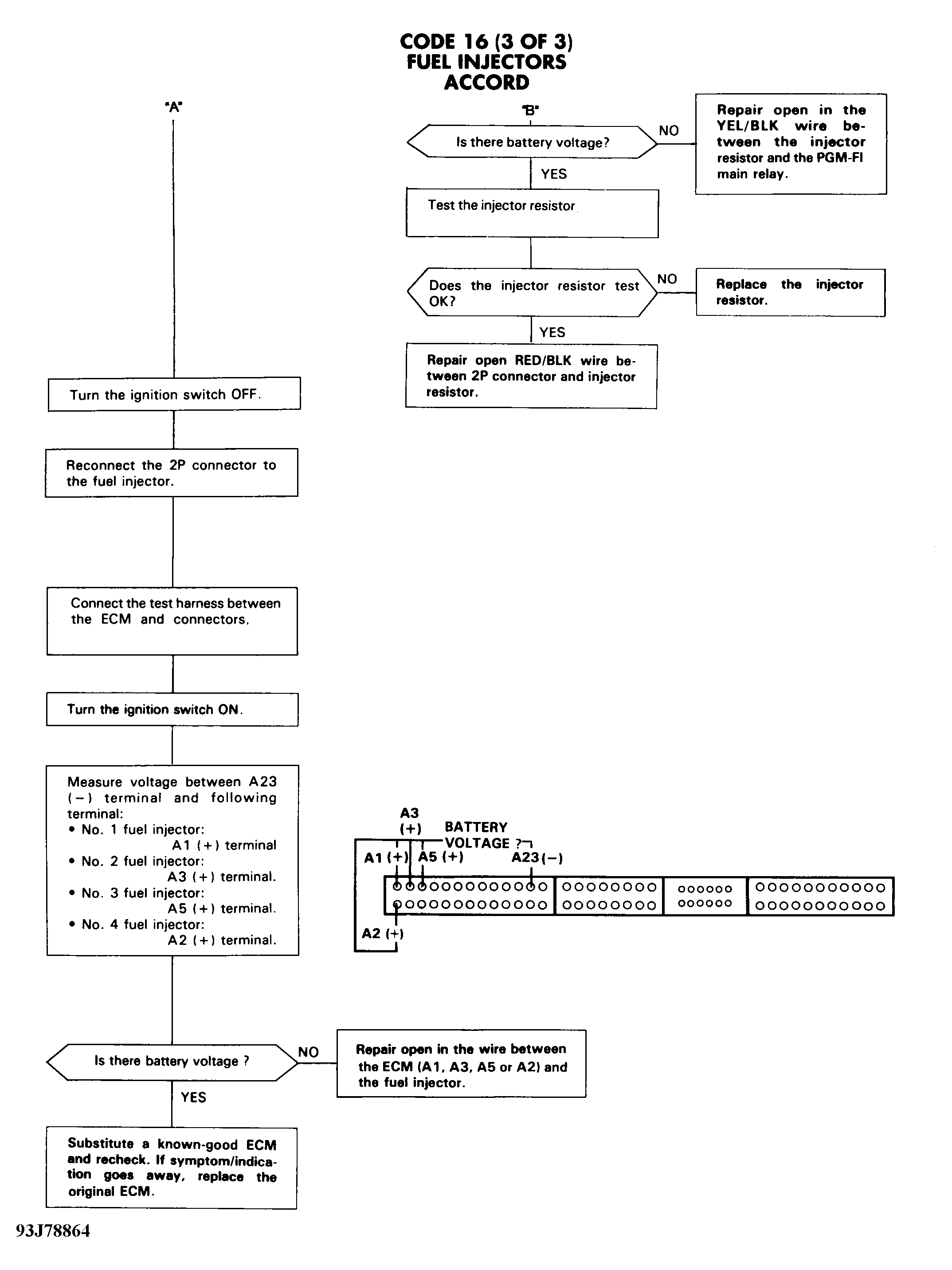

Fig 3: Code 16 Flowchart, Fuel Injectors (3 of 3
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
