Code 12 - EGR System
Code 12 - EGR System

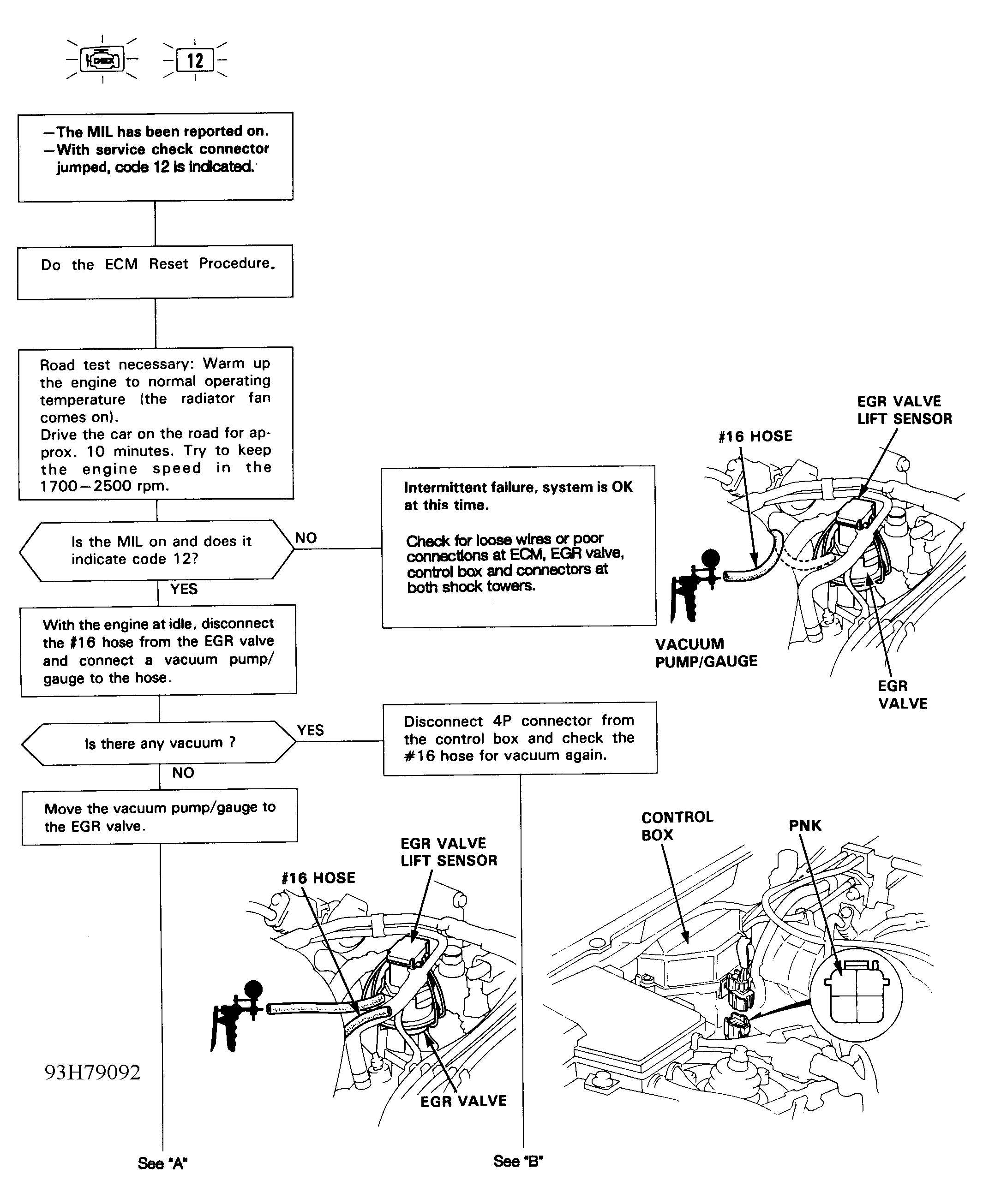

Fig 1: Code 12 Flowchart, EGR System (1 of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

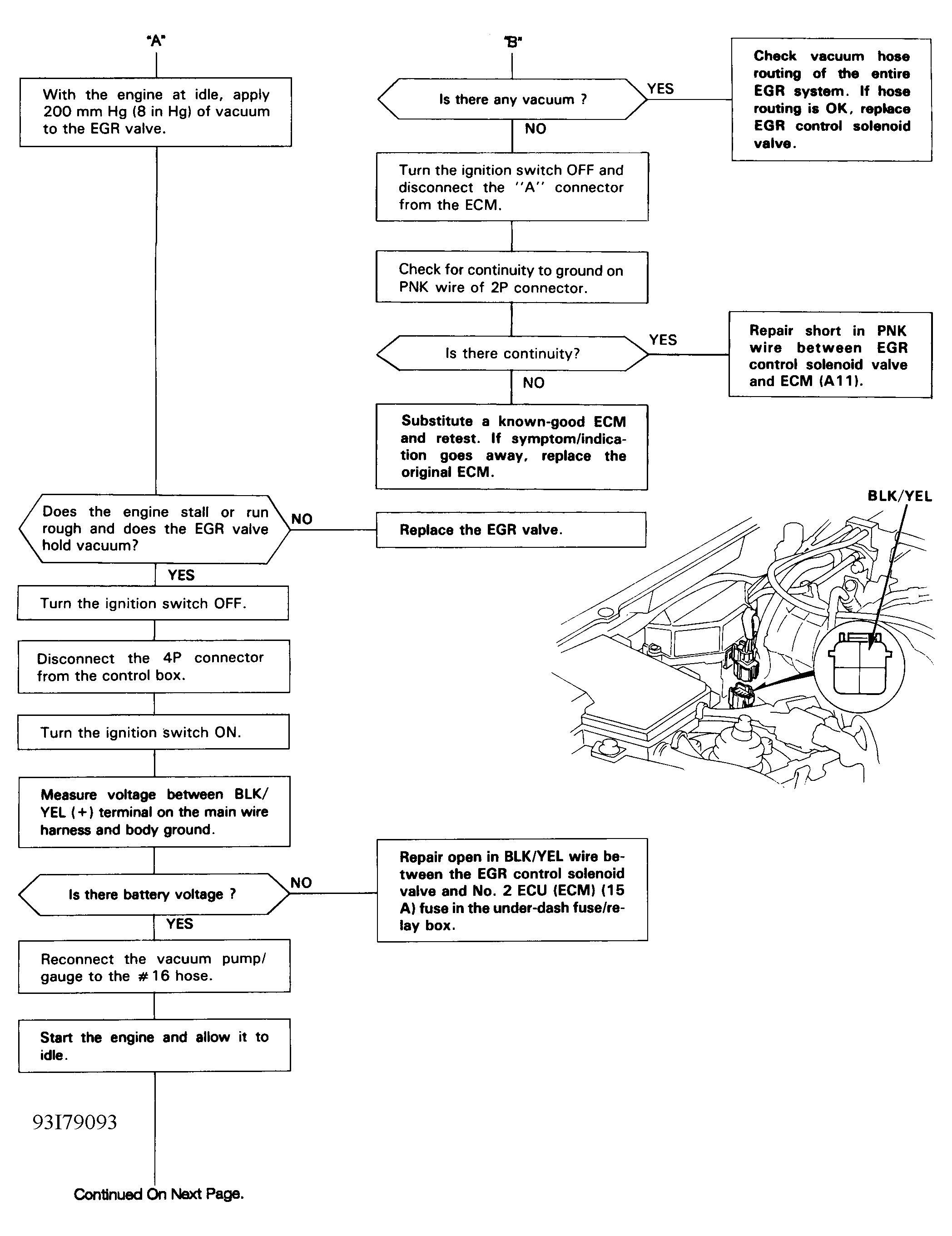

Fig 2: Code 12 Flowchart, EGR System (2 of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

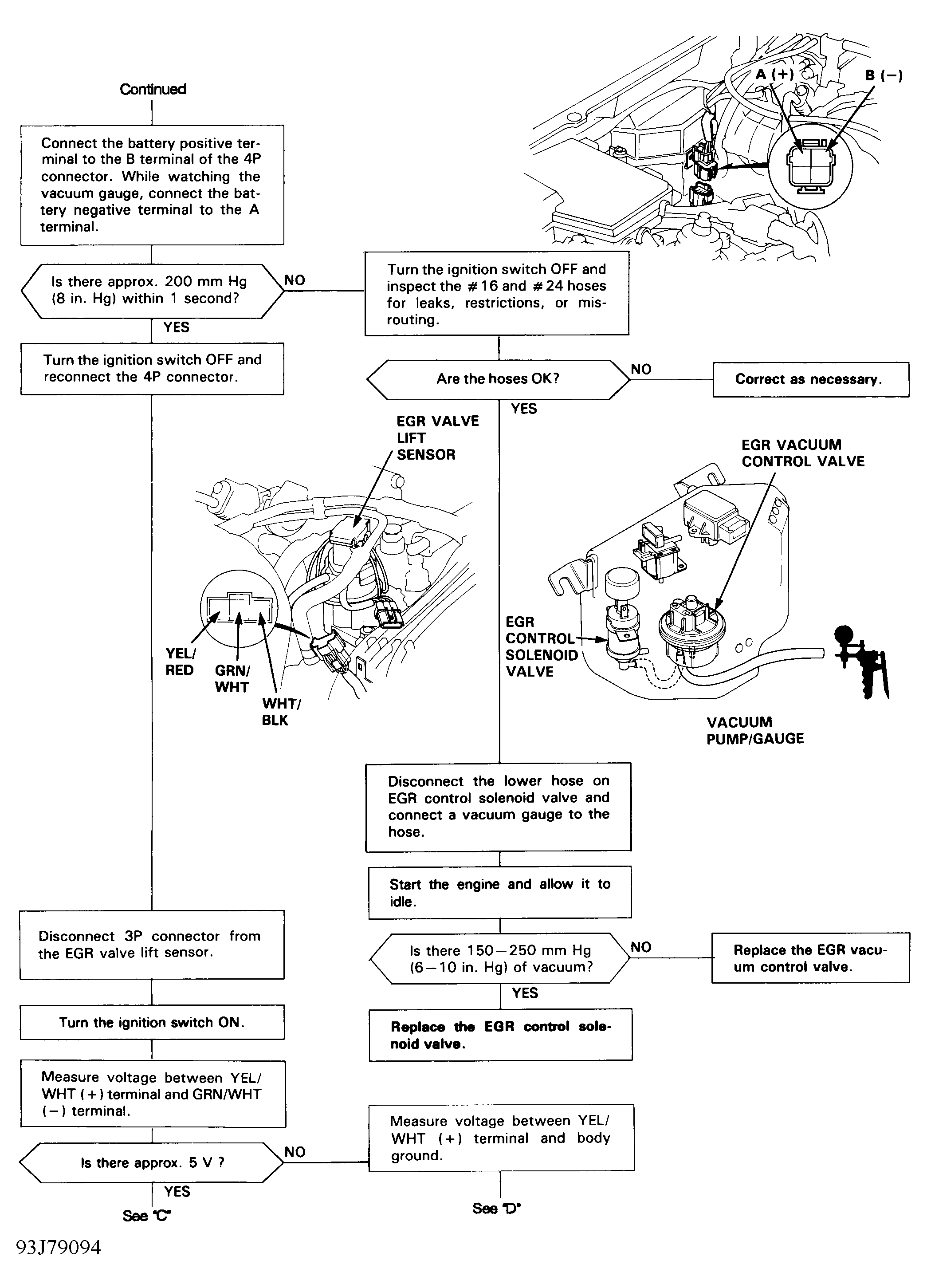

Fig 3: Code 12 Flowchart, EGR System (3 of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

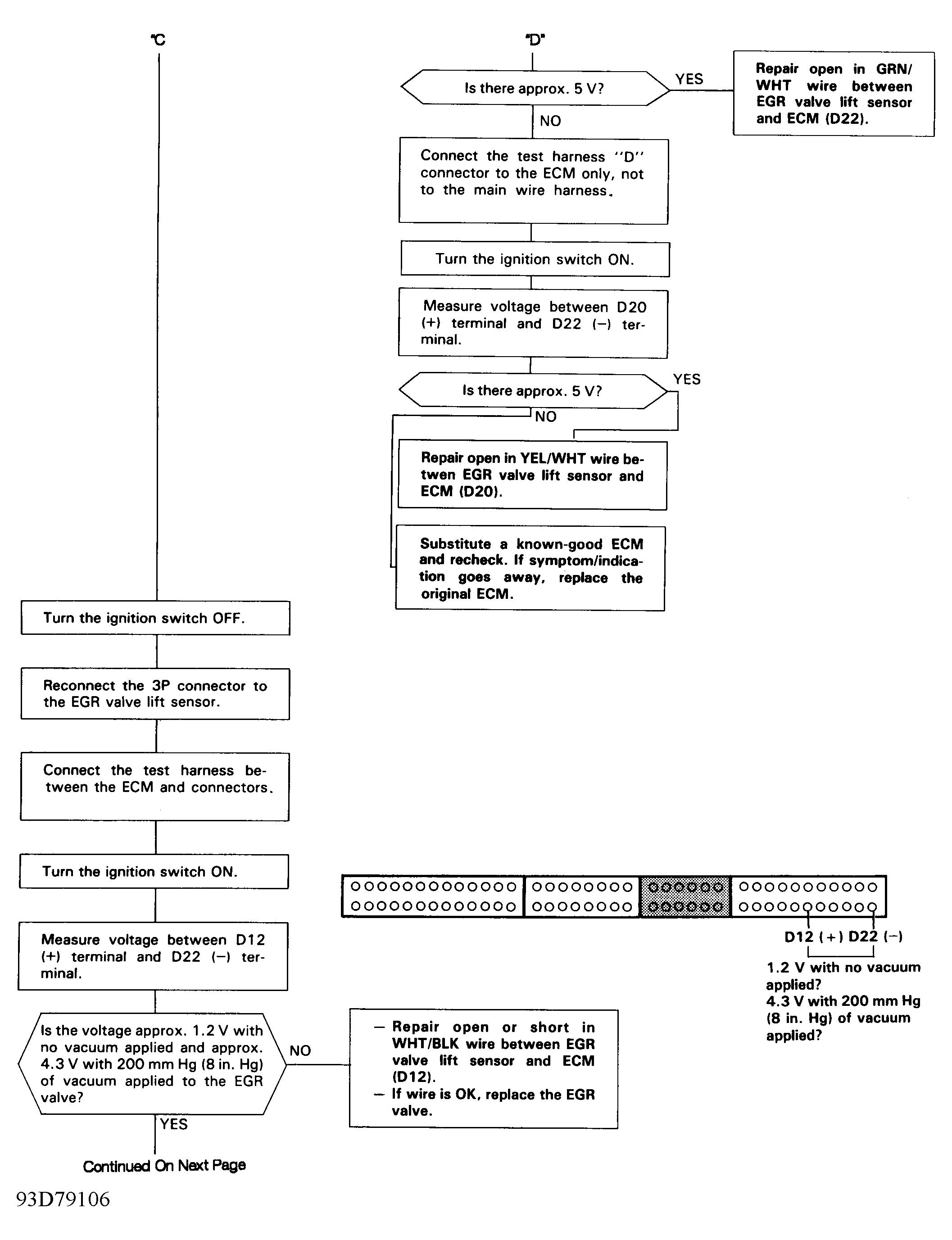

Fig 4: Code 12 Flowchart, EGR System (4 of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

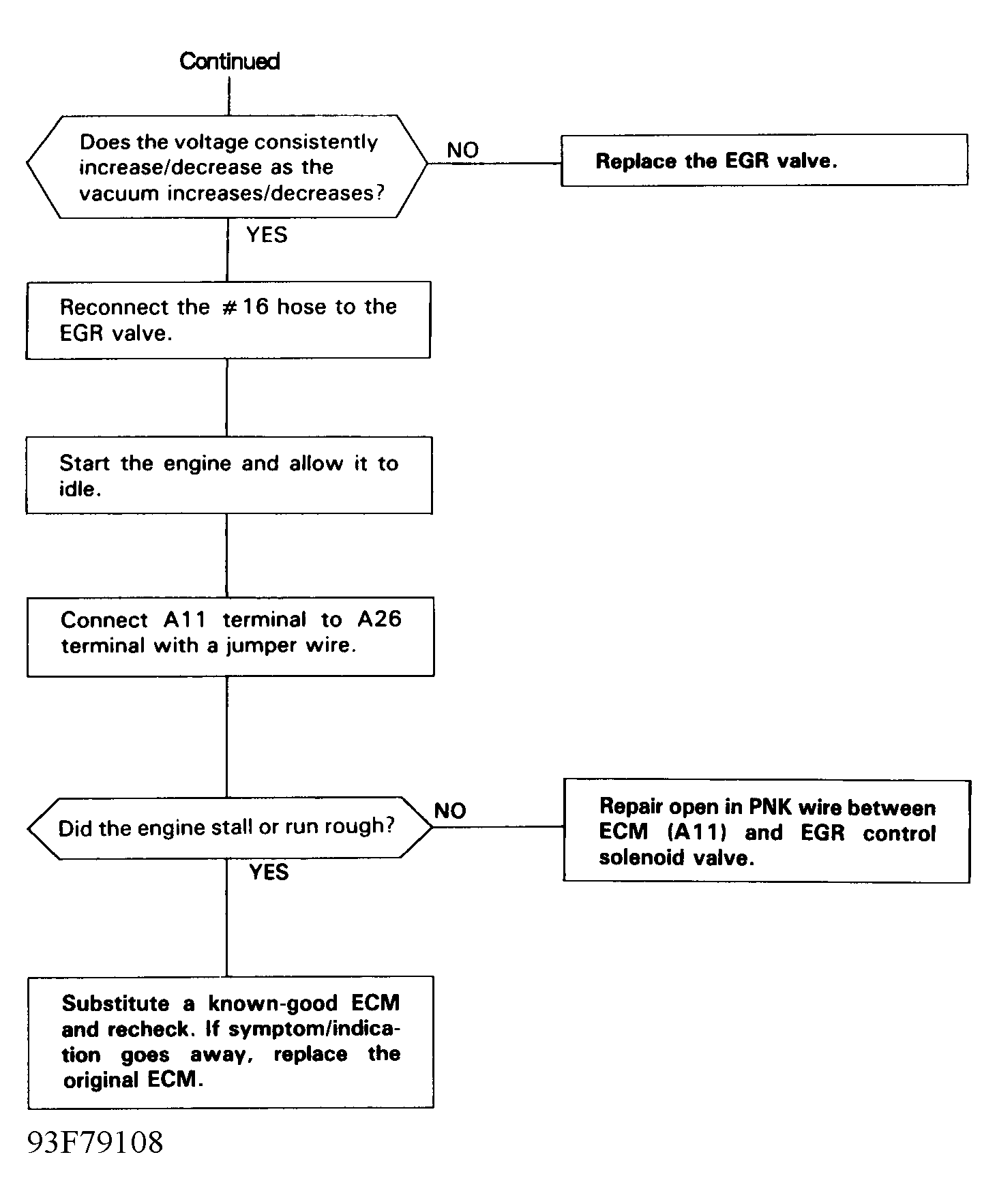

Fig 5: Code 12 Flowchart, EGR System (5 of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
