Code 15 - Ignition Output Signal

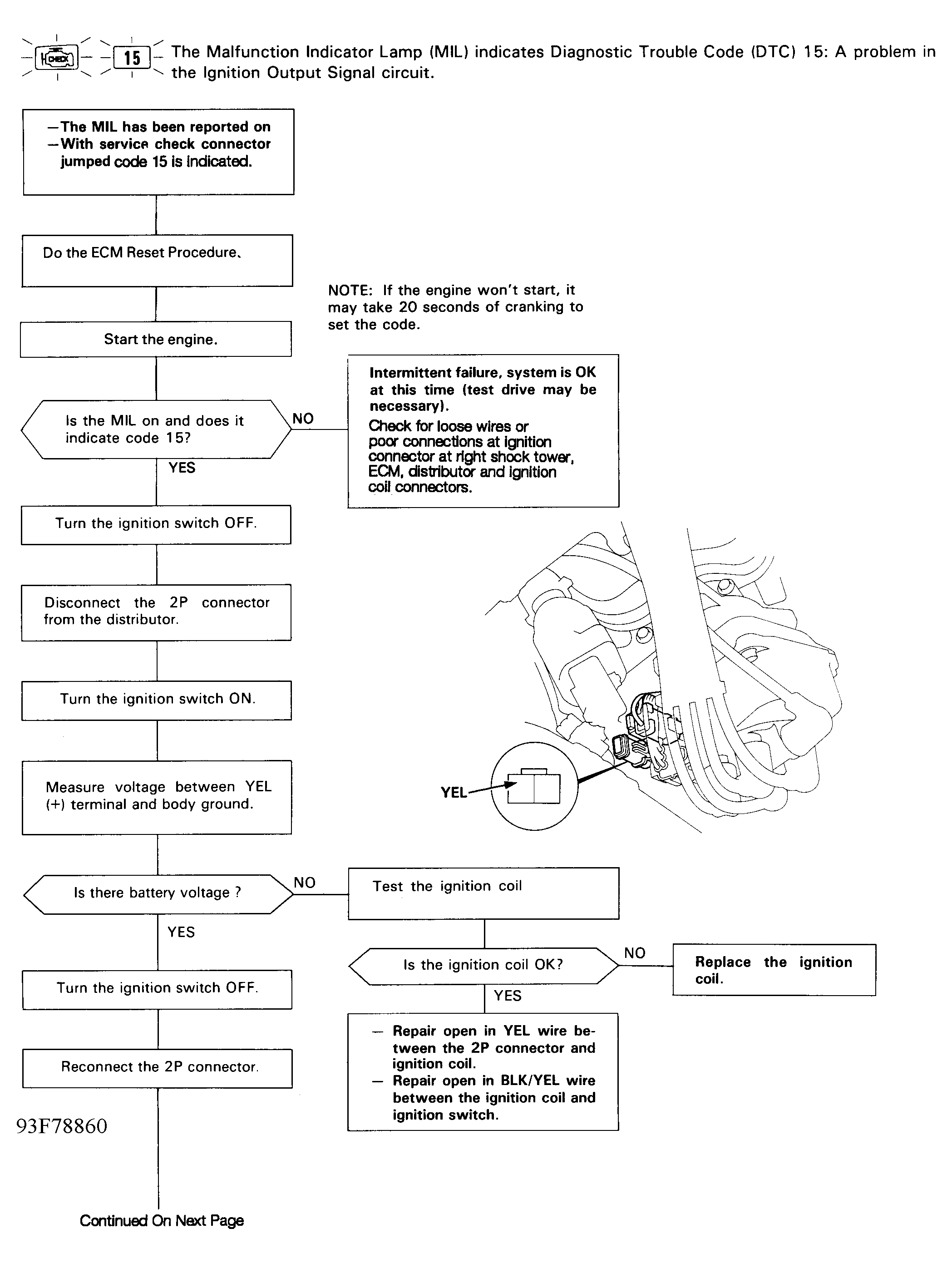

Fig 1: Code 15 Flowchart, Ignition Output Signal (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

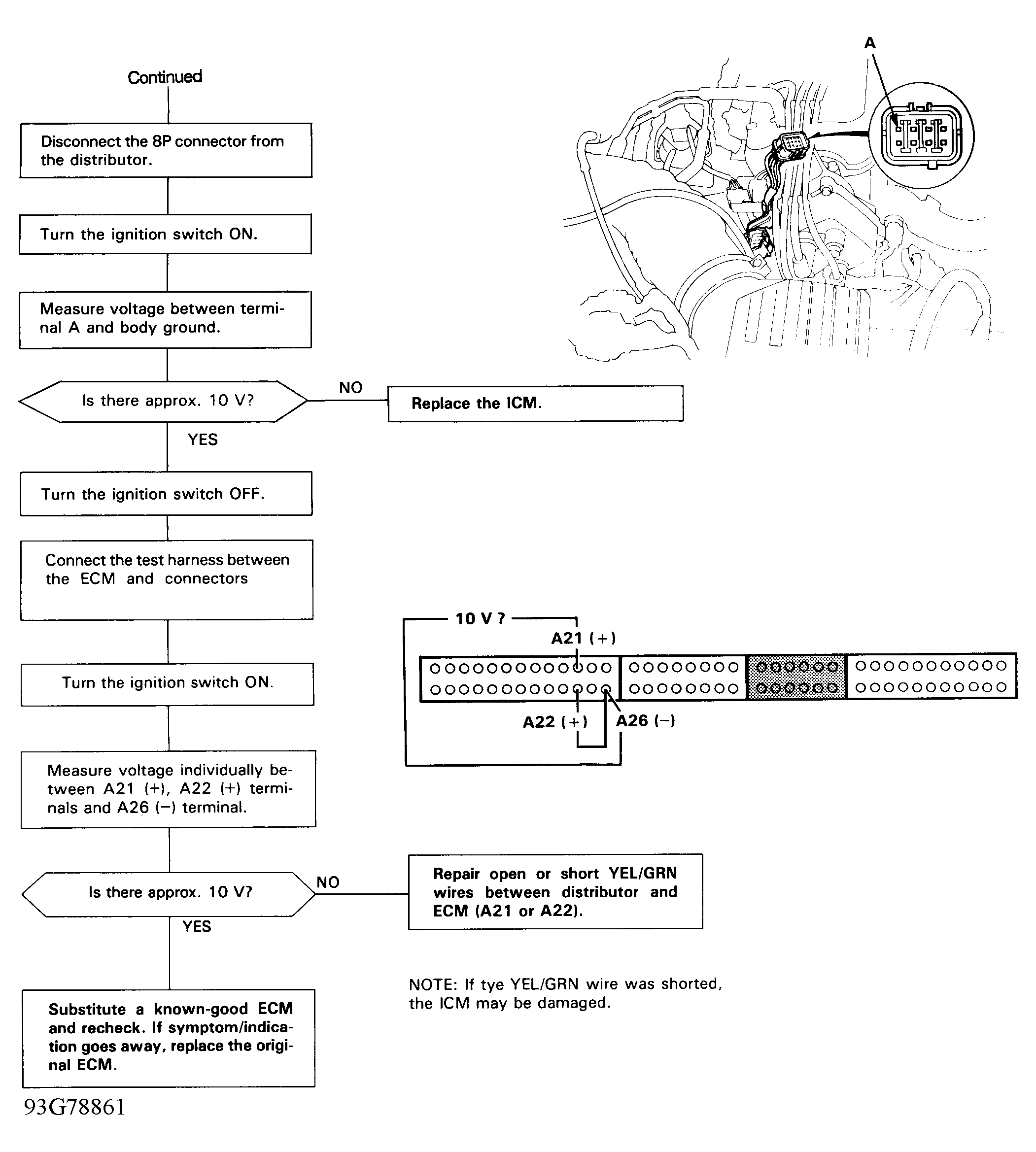

Fig 2: Code 15 Flowchart, Ignition Output Signal (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
