Code 5 - Map Sensor Circuit

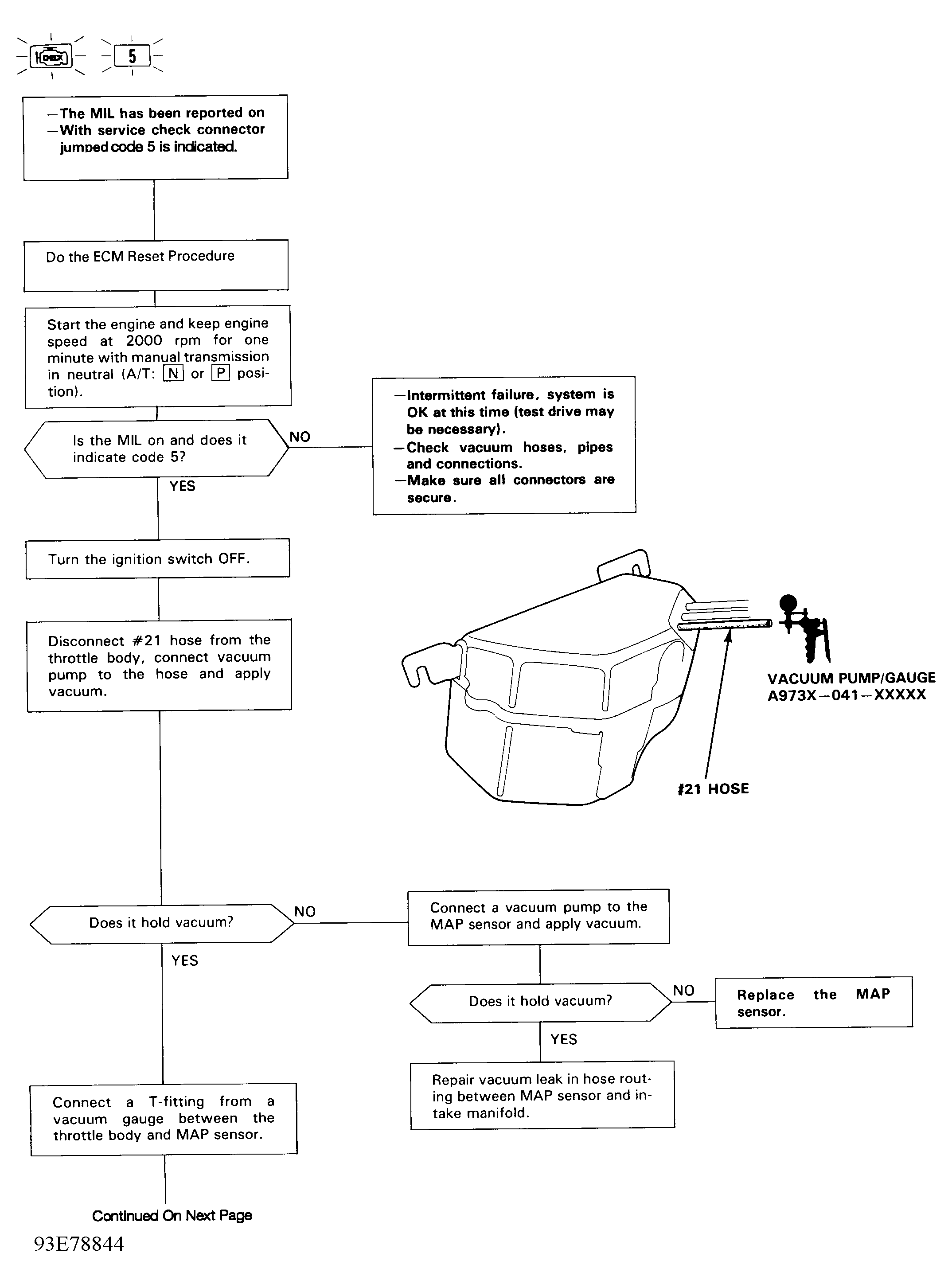

Fig 1: Code 5 Flowchart, MAP Sensor Circuit (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

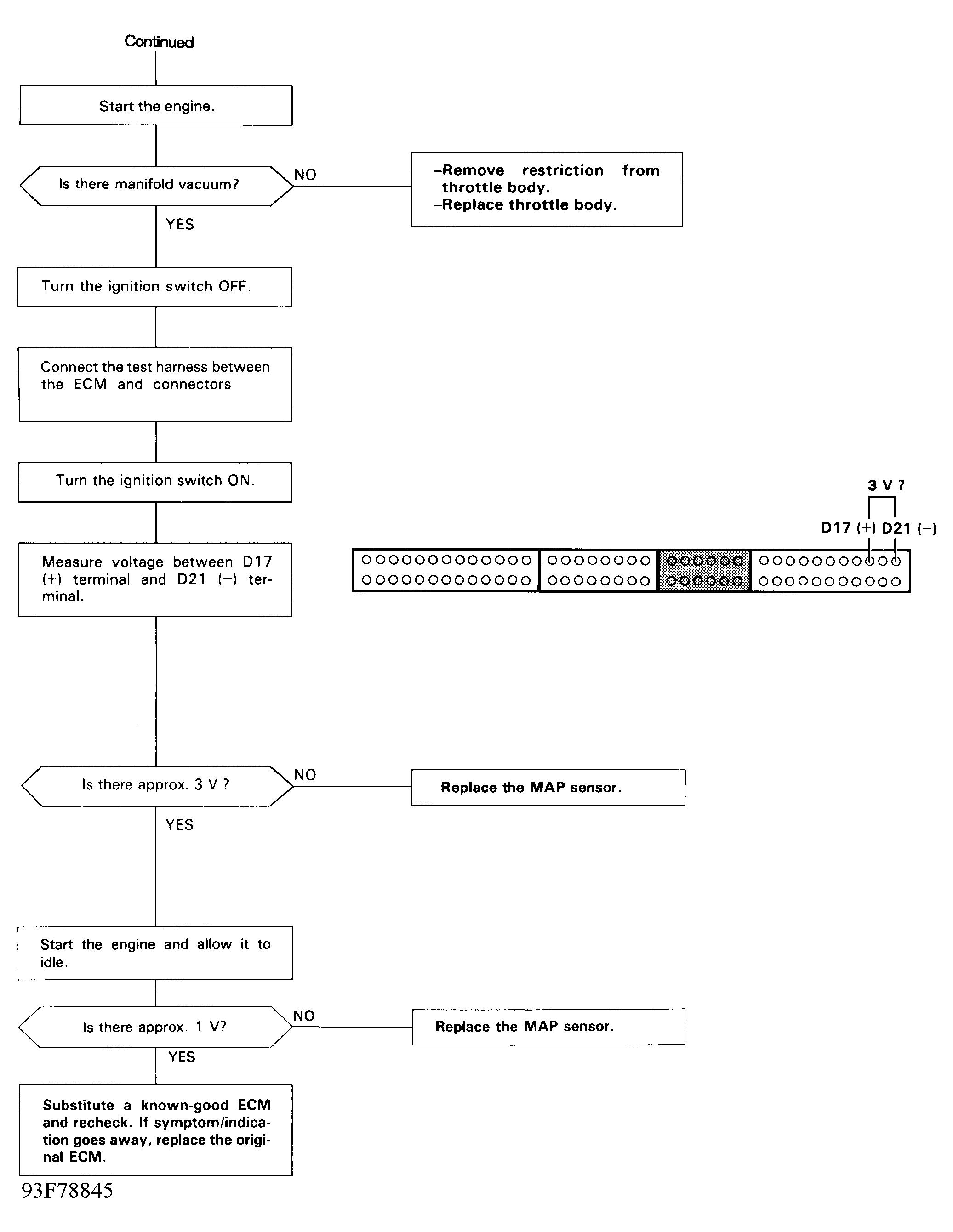

Fig 2: Code 5 Flowchart, MAP Sensor Circuit (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
