Code 16 - Fuel Injectors

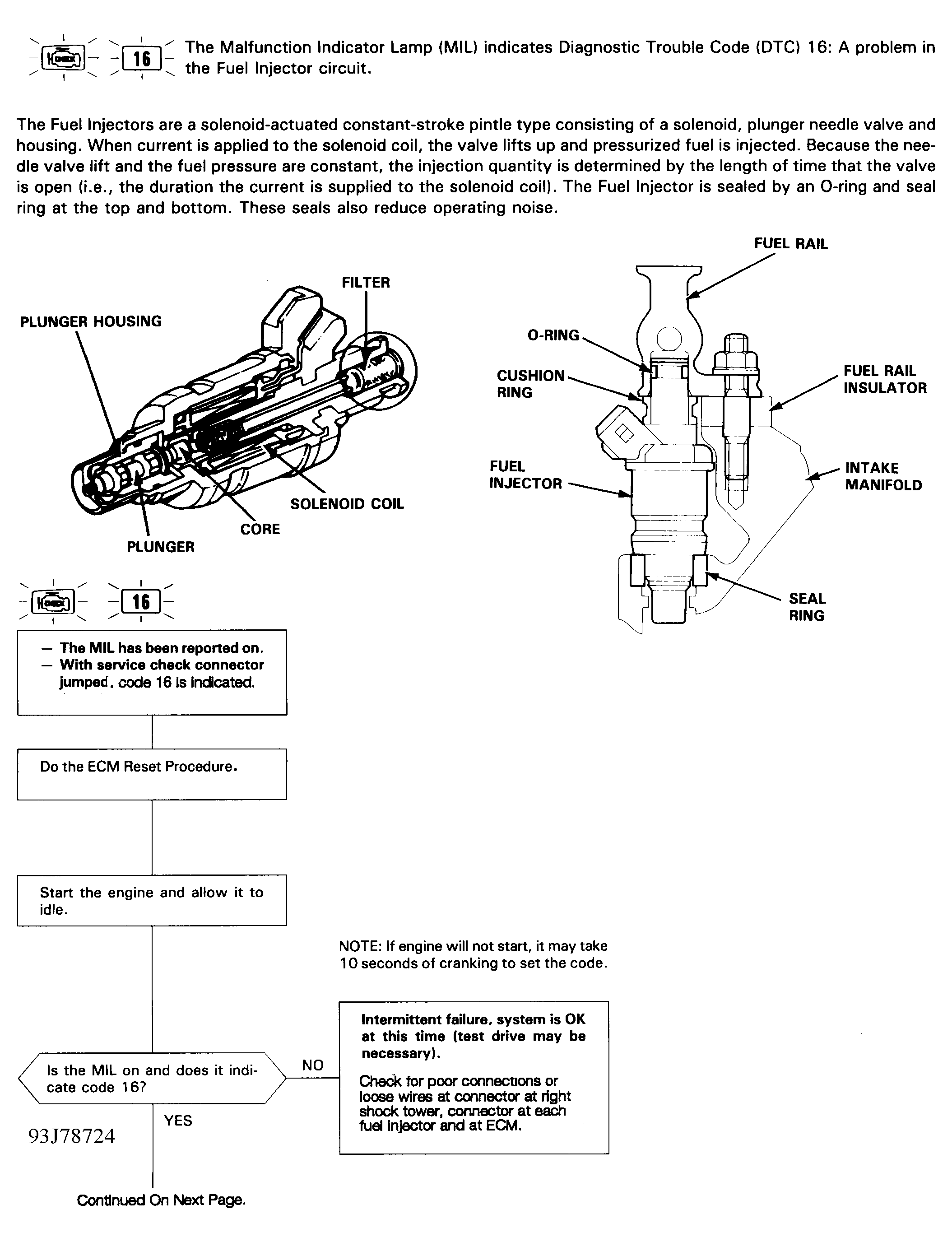

Fig 1: Code 16 Flowchart, Fuel Injectors (1 of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

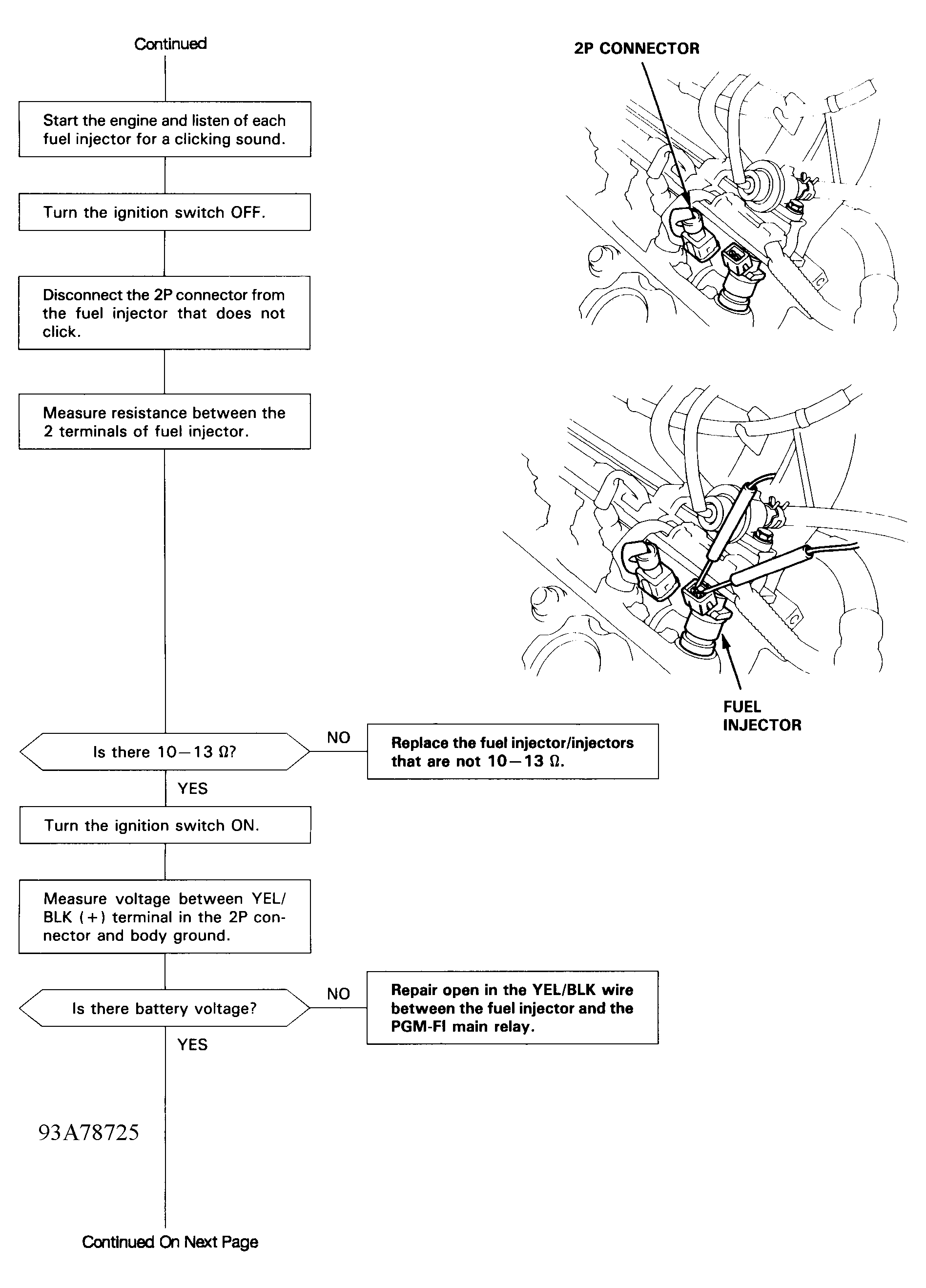

Fig 2: Code 16 Flowchart, Fuel Injectors (2 of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

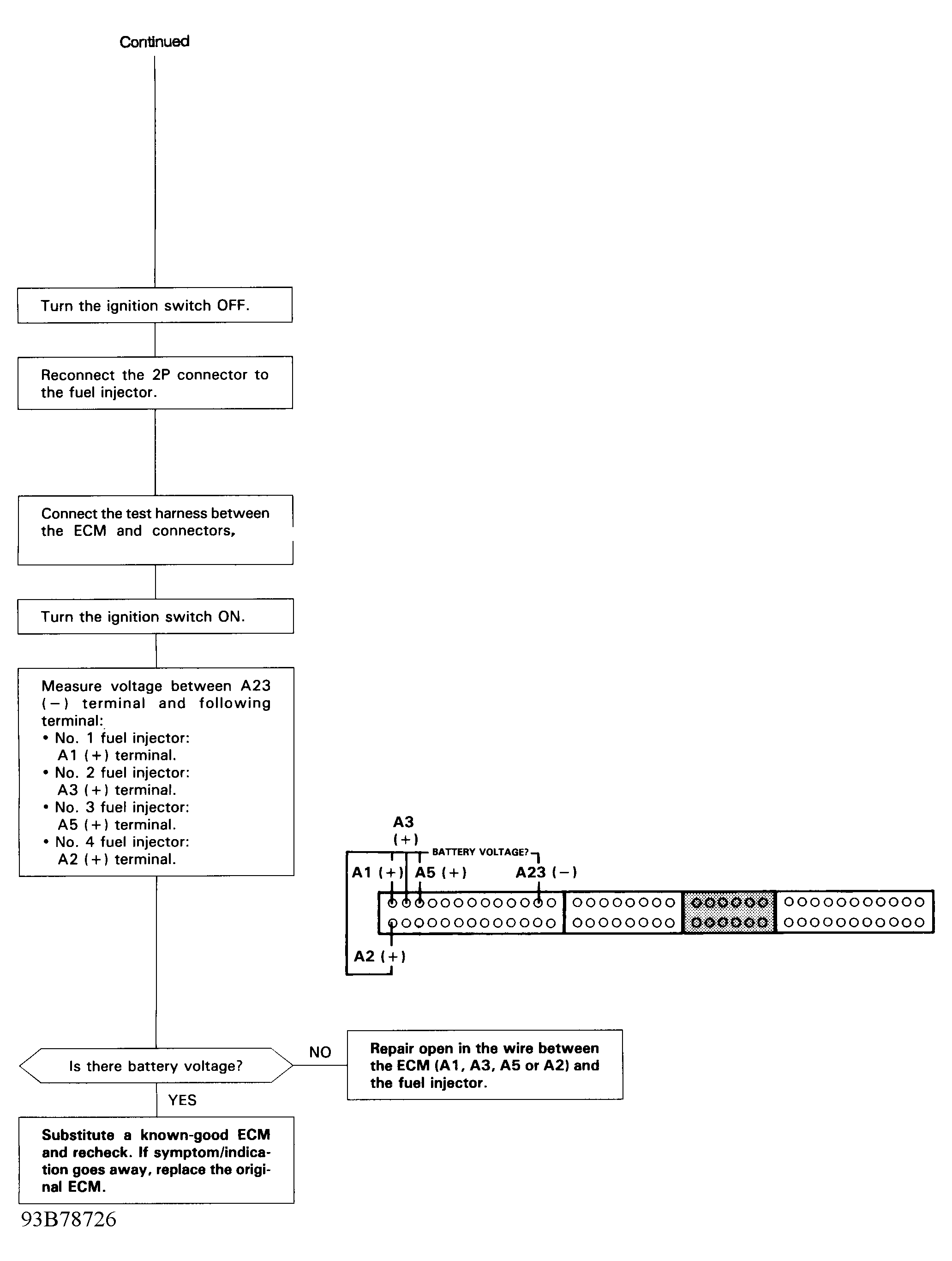

Fig 3: Code 16 Flowchart, Fuel Injectors (3 of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
