Code 1 Pump Motor Overrun
Code 1 Pump Motor Overrun

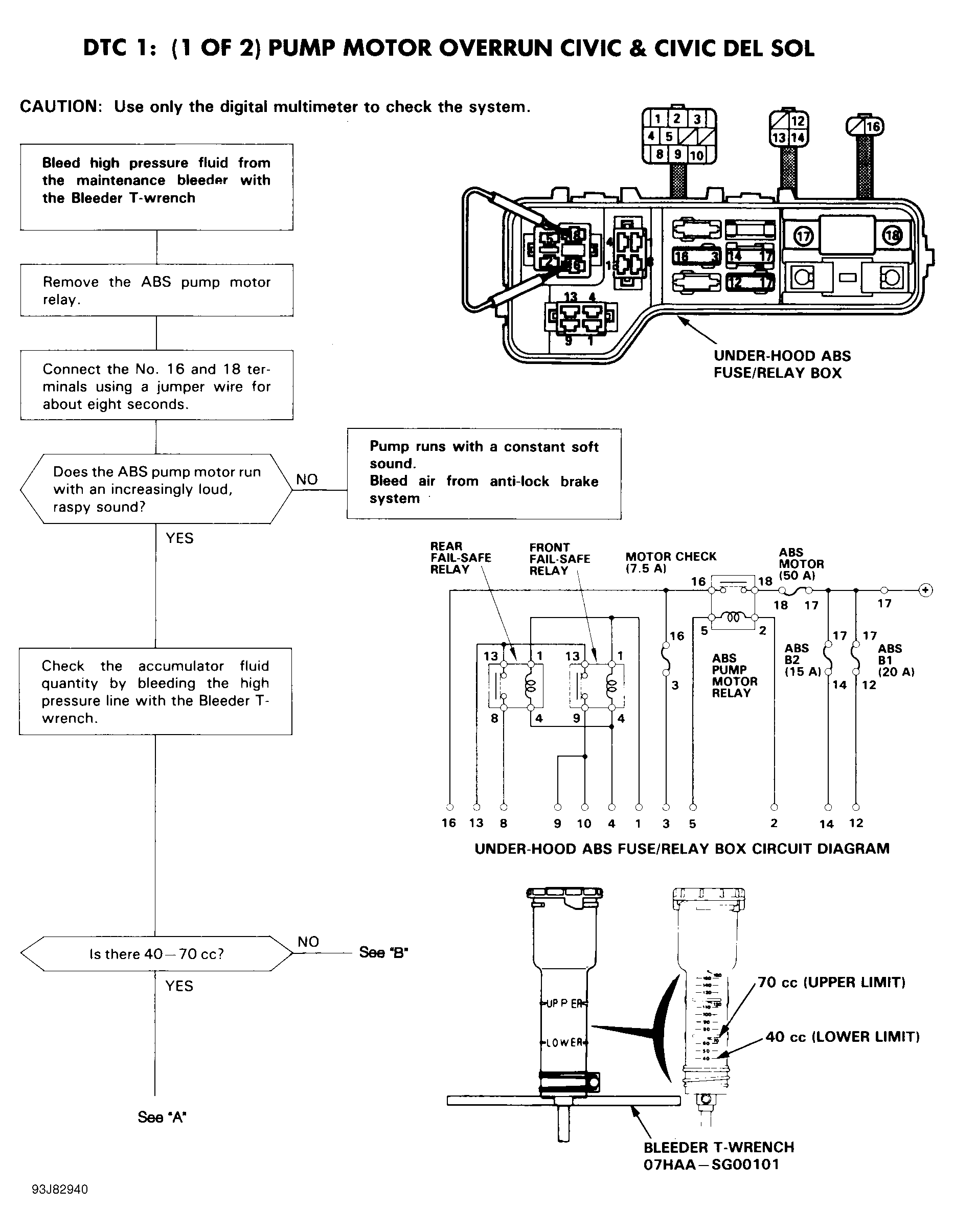

Fig 1: Code 1 Flow Chart (1 Of 2), Pump Motor Overrun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

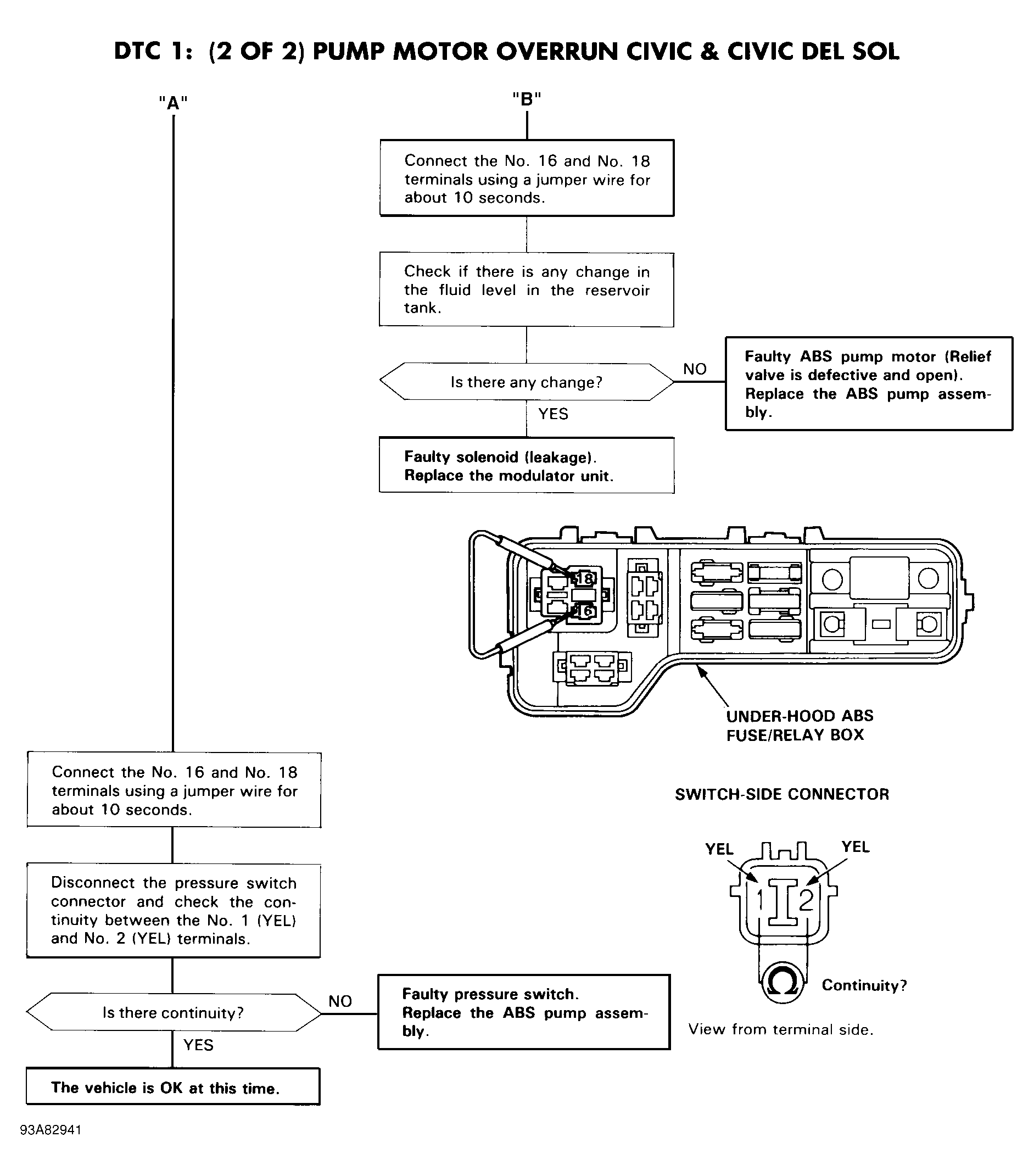

Fig 2: Code 1 Flow Chart (2 Of 2), Pump Motor Overrun
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
