Code 19 - Lock-Up Control Solenoid Valve

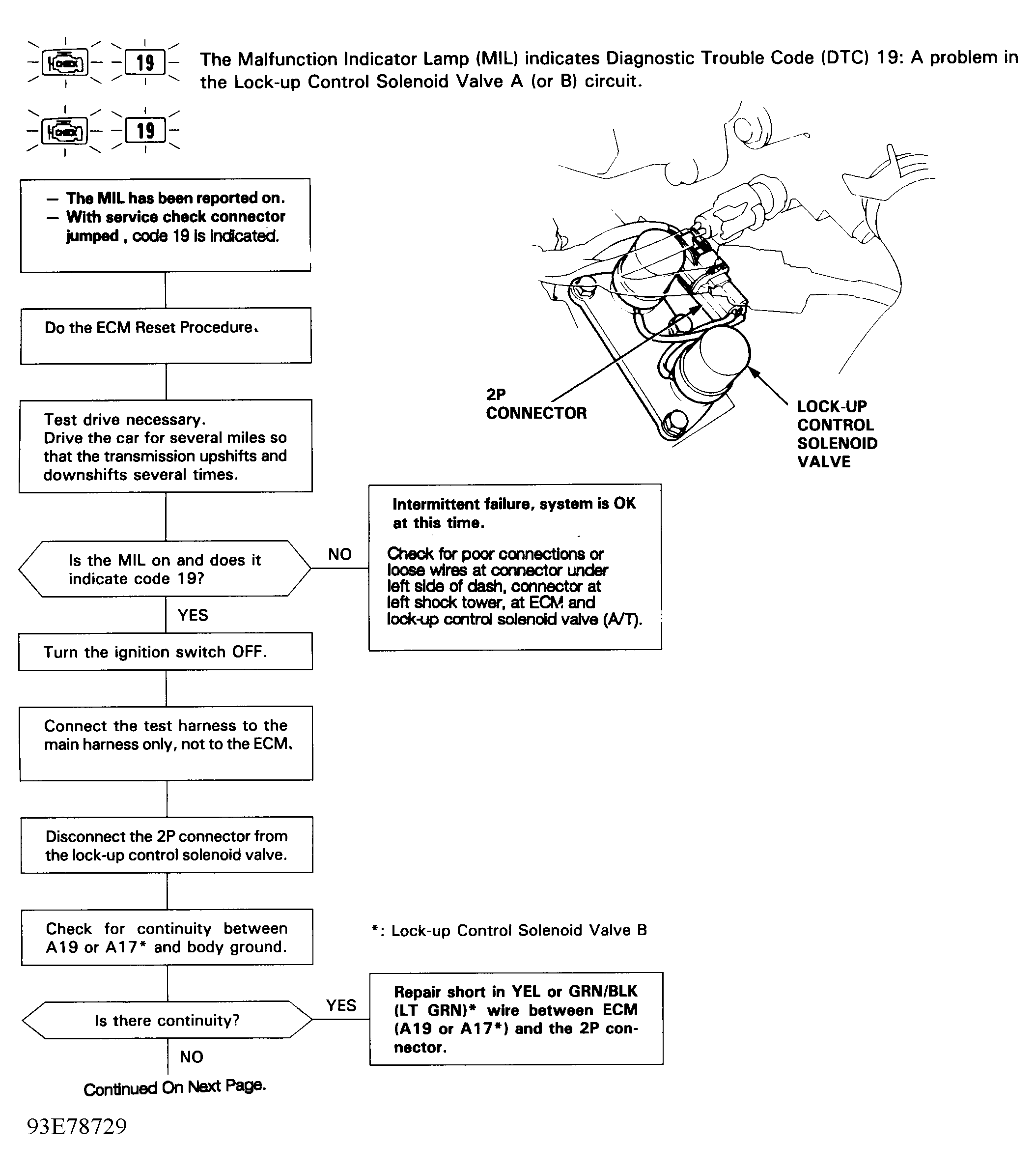

Fig 1: Code 19 Flowchart, Lock-Up Control Solenoid Valve (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

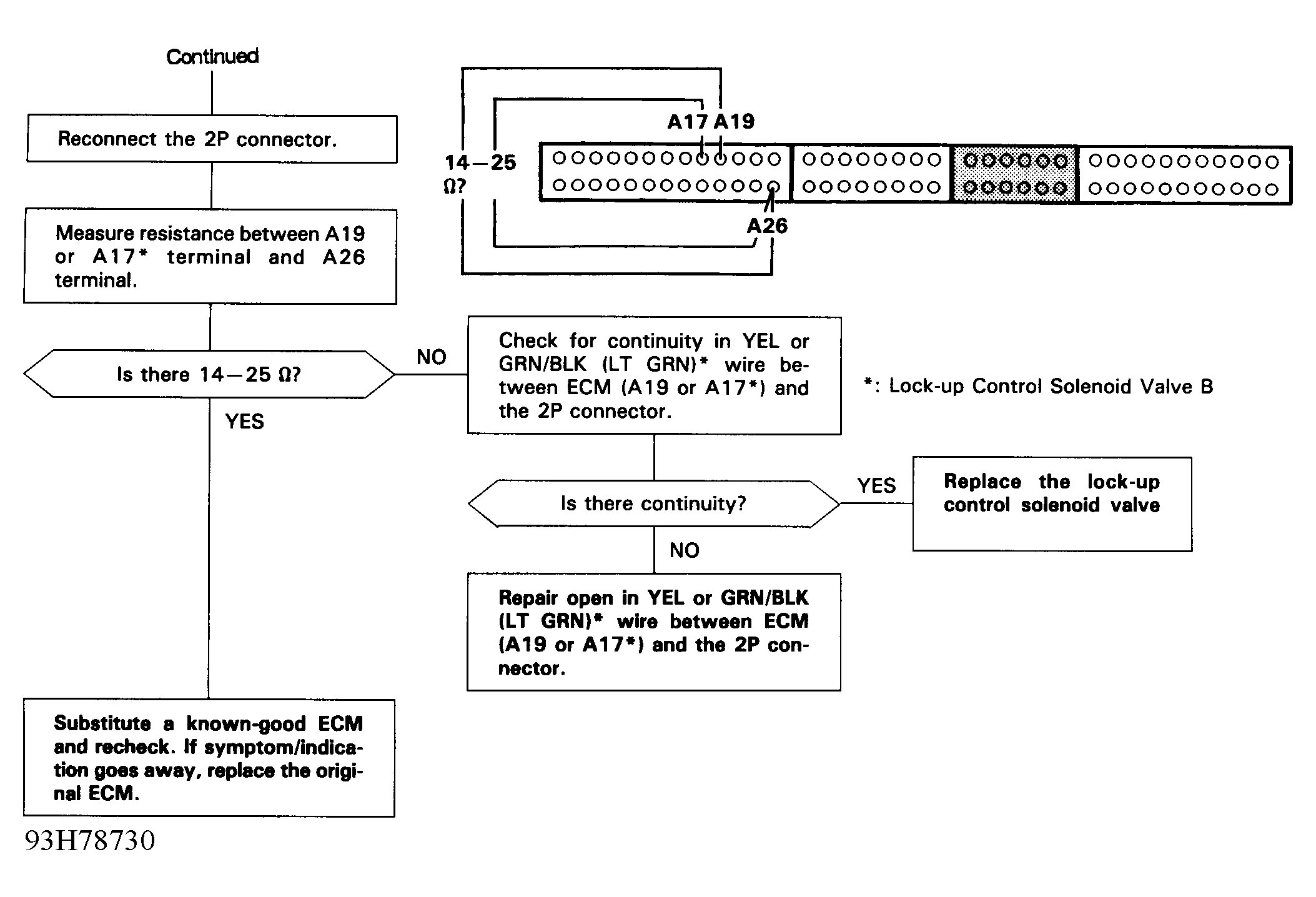

Fig 2: Code 19 Flowchart, Lock-Up Control Solenoid Valve (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
