Light-On Reminder System
Light-On Reminder System
For connector terminal identification, see
Figure
. For input test, see
Fig 1
.

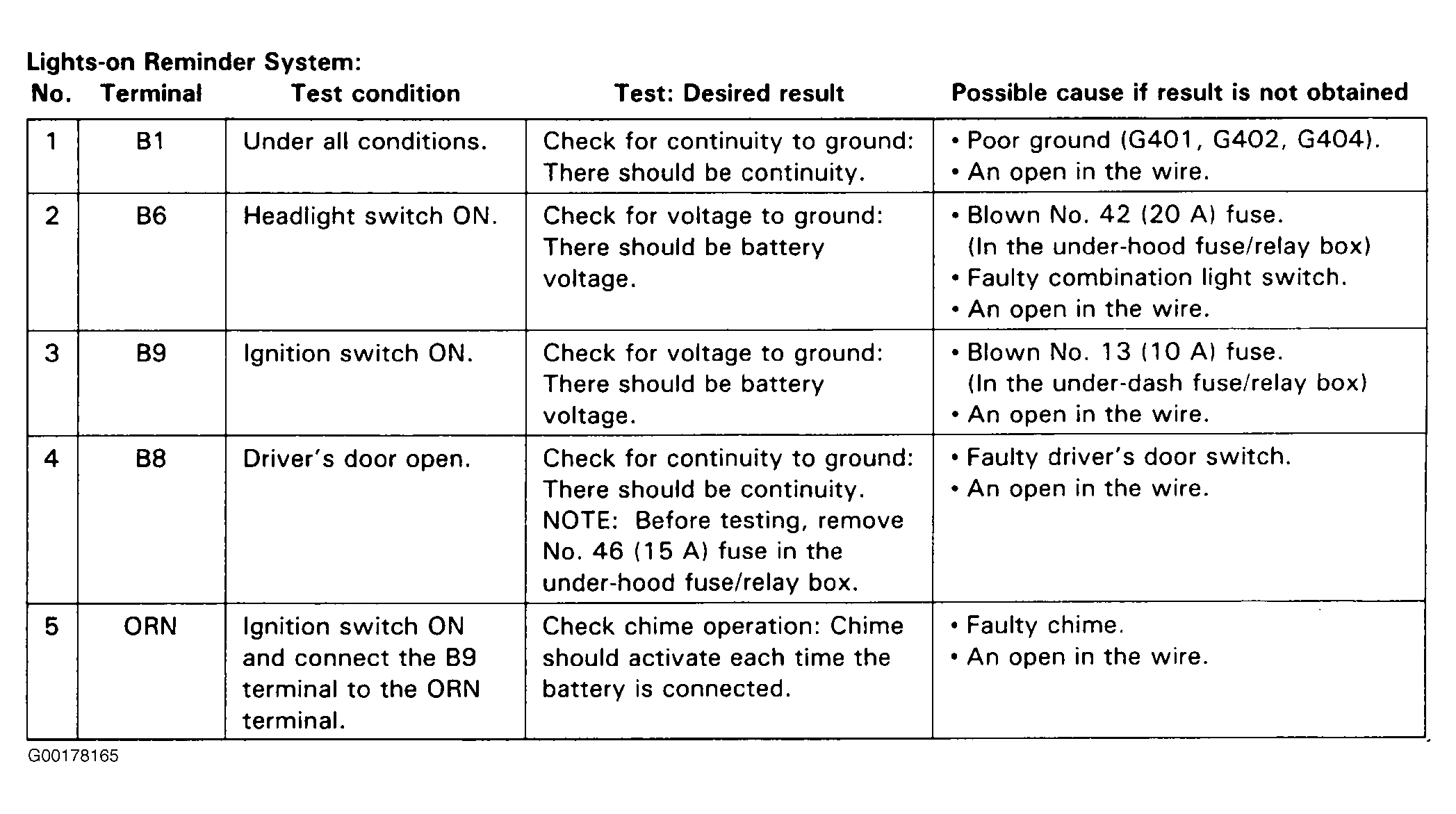

Fig 1: Lights On Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
