Component Locations

NOTE: Passenger compartment fuse/relay box may also be referred to as under-dash fuse relay box.
COMPONENT LOCATIONS

Component Location
Chime Module Under Driver's Side Of Instrument Panel. See Fig 1 .
Engine Compartment Fuse/Relay Block On Right Front Strut Tower. See Fig 2 .
Engine Oil Pressure Switch On Engine, Below Oil Filter.
Integrated Control Unit Behind Passenger Compartment Fuse/Relay Block. See Fig 3 .
Passenger Compartment Fuse/Relay Block Behind Left Kick Panel. See Fig 3 .
Seat Belt Switch In Drivers Seat Belt Buckle Assembly.
G201 Passenger's Front Corner Of Engine Compartment. See Fig 4 .
G301 Driver's Front Corner Of Engine Compartment. See Fig 5 .
G401 Behind Passenger's Side Of Instrument Panel. See Fig 6 .
G402 Under Center Of Instrument Panel. See Fig 6 .
G522 Behind Driver's Side Rear Quarter Trim Panel. See Fig 7 .
Fig 1: Locating Chime Module
G00078238Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating Engine Compartment Fuse/Relay Block
G93H27562Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Locating Passenger Compartment Fuse/Relay Block & Integrated Control Unit
G93F27560Courtesy of AMERICAN HONDA MOTOR CO., INC.

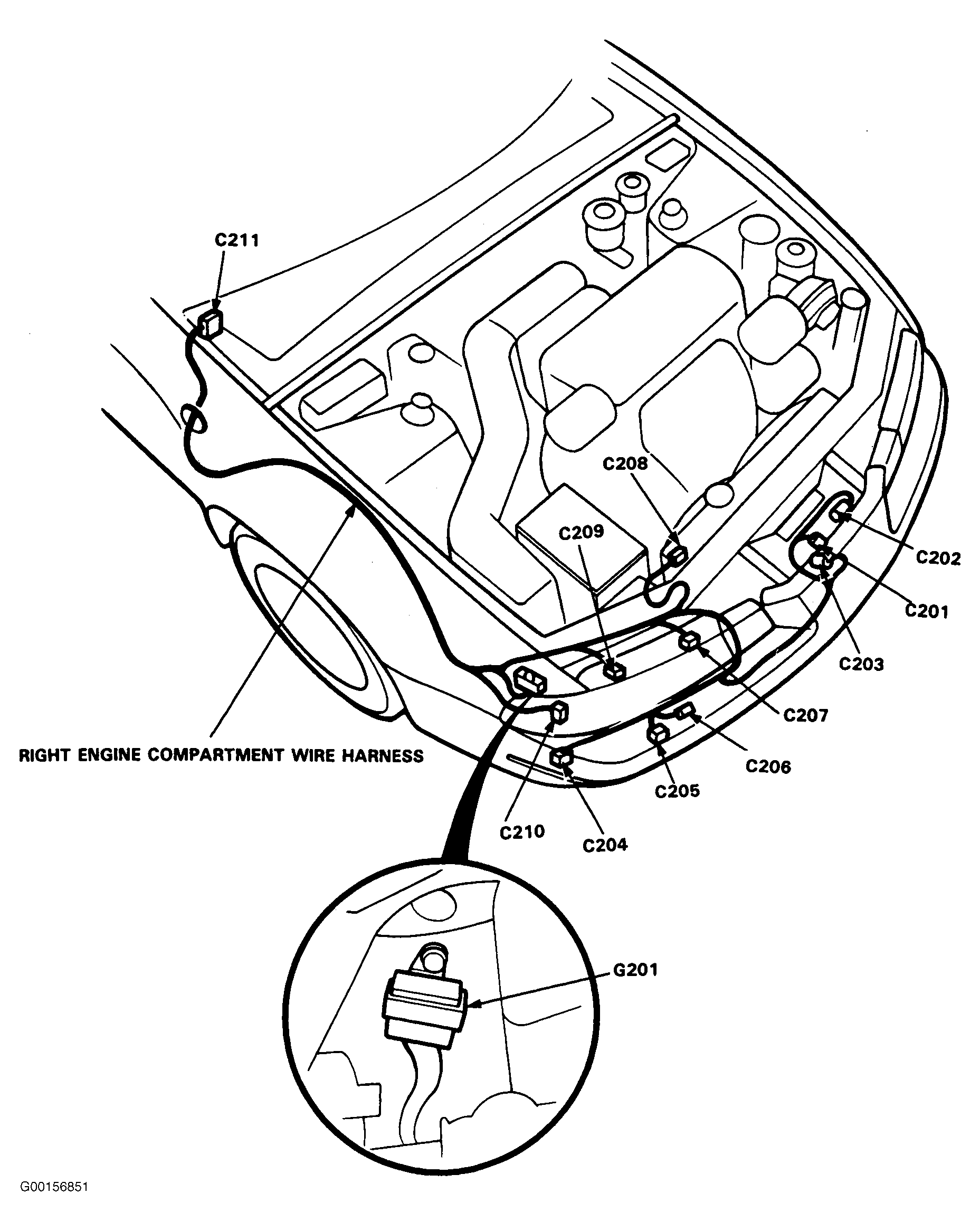

Fig 4: Locating Ground G201
G00156851Courtesy of AMERICAN HONDA MOTOR CO., INC.

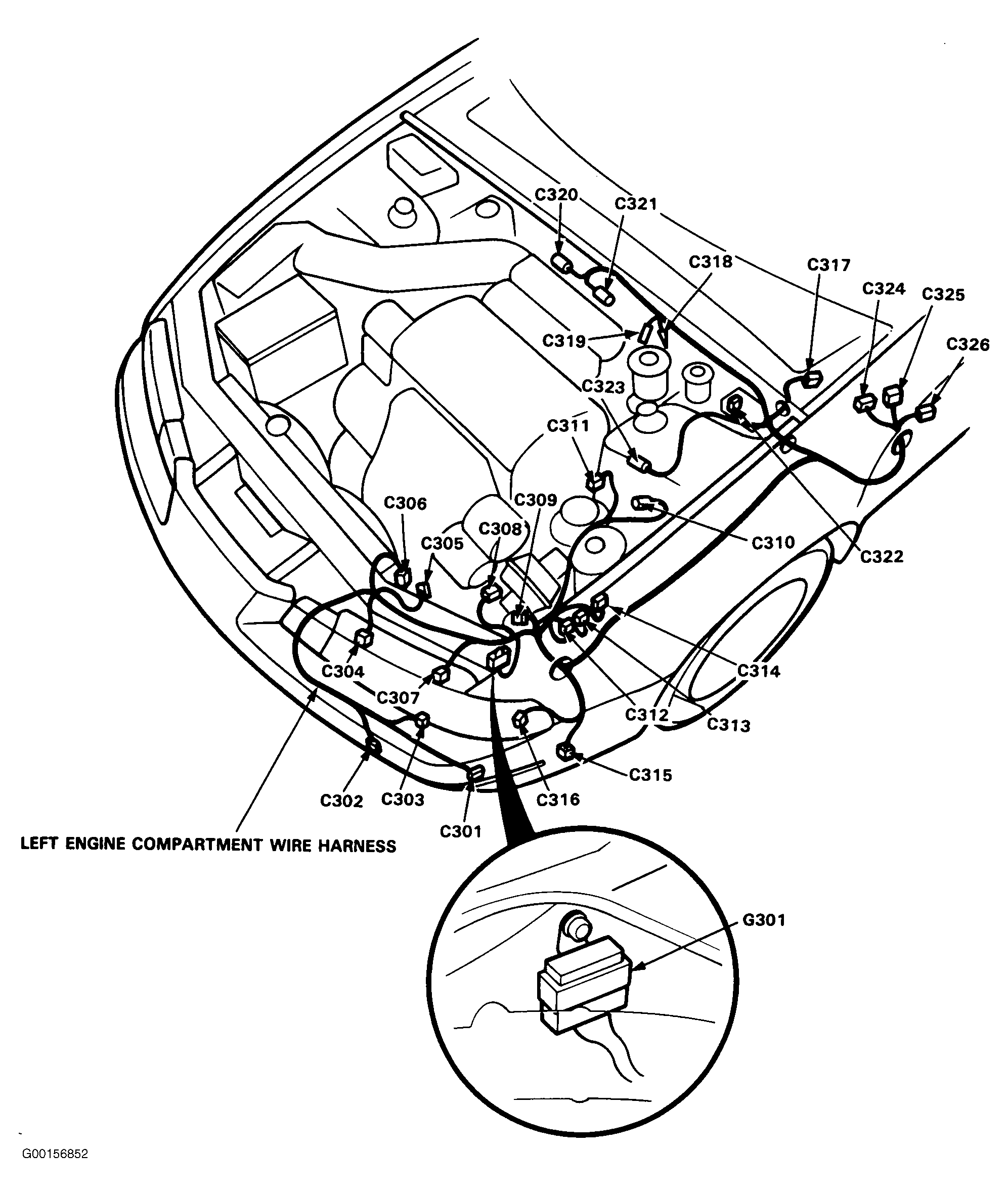

Fig 5: Locating Ground G301
G00156852Courtesy of AMERICAN HONDA MOTOR CO., INC.

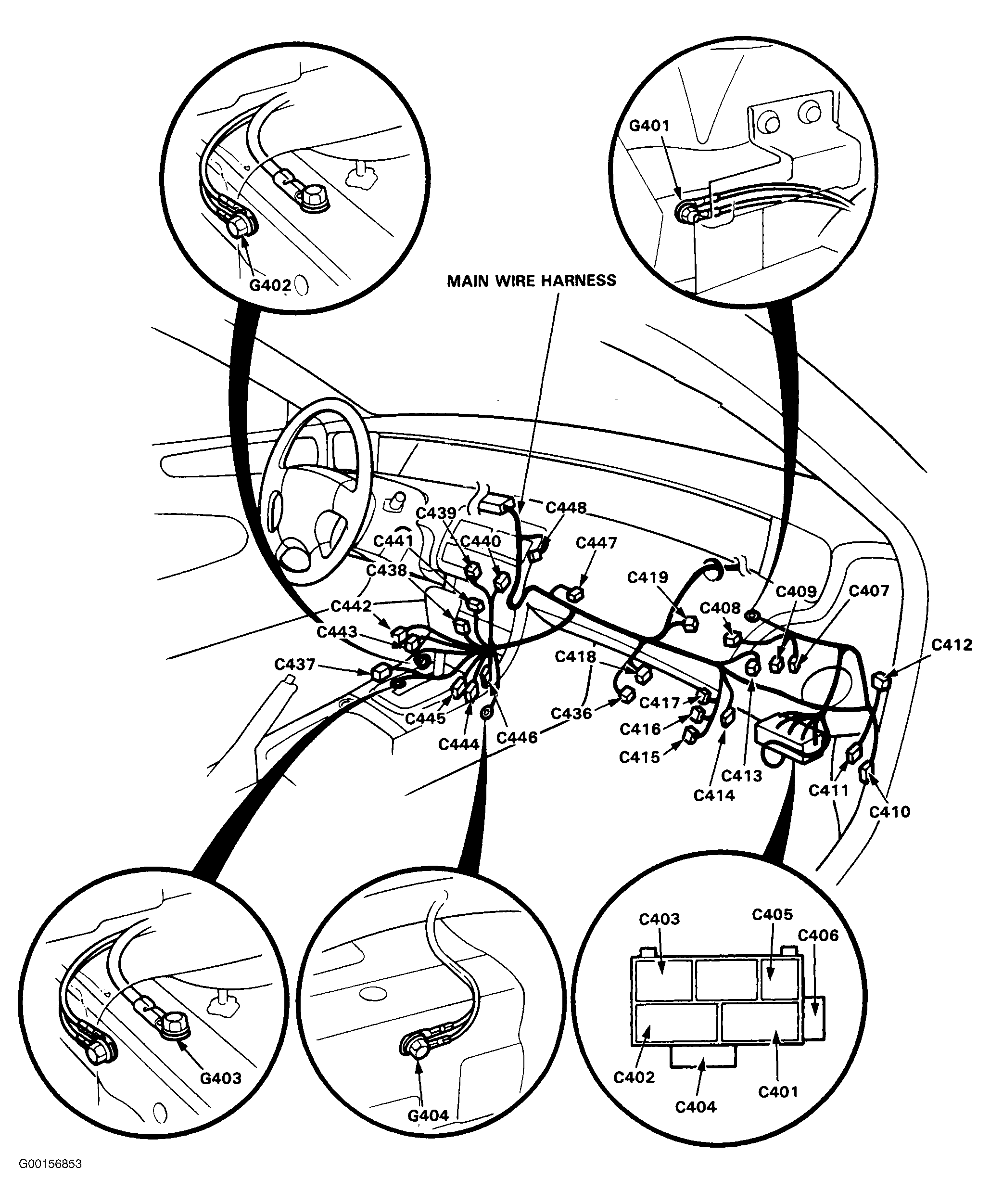

Fig 6: Locating Ground G401, G402 & G404
G00156853Courtesy of AMERICAN HONDA MOTOR CO., INC.

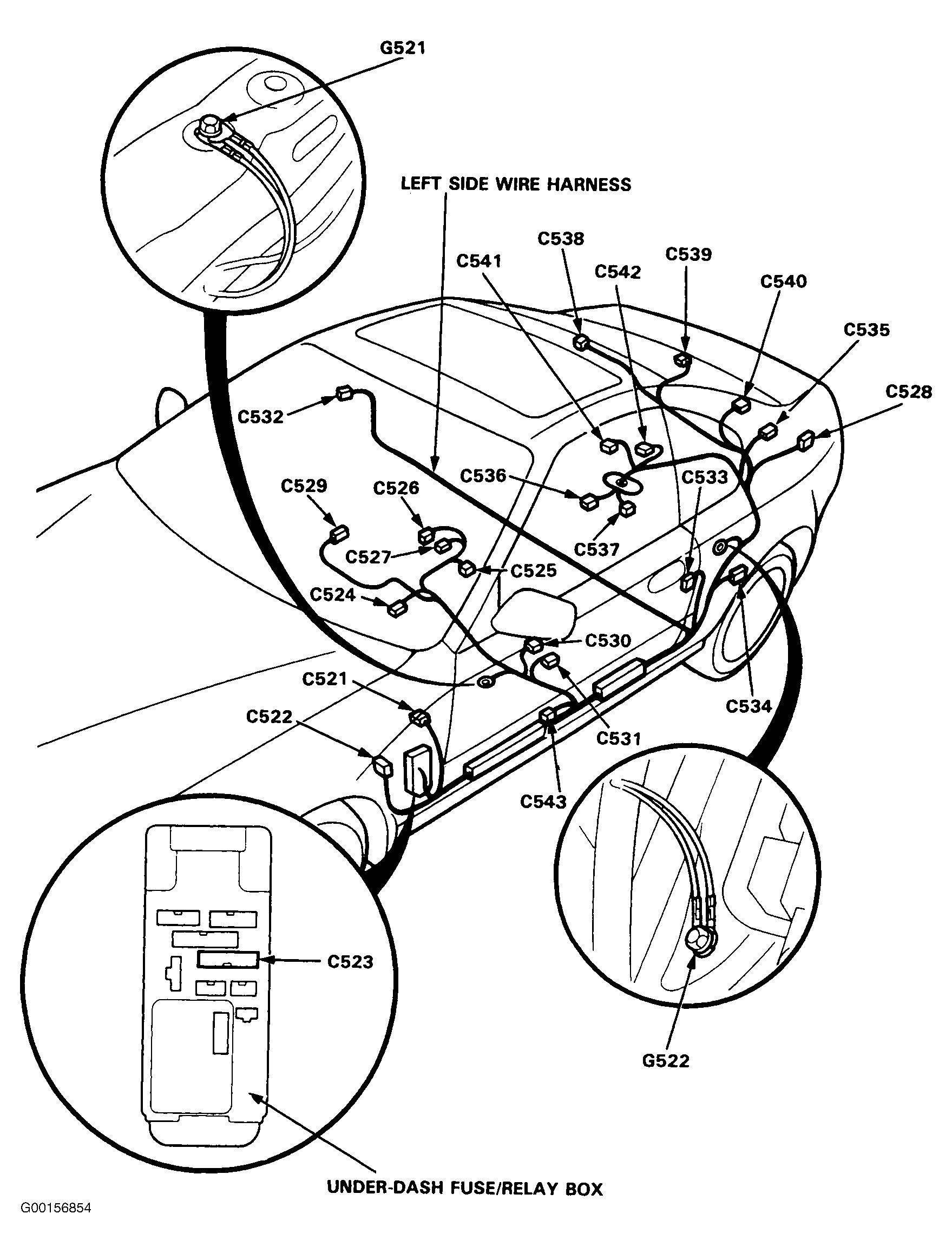

Fig 7: Locating Ground G522
G00156854Courtesy of AMERICAN HONDA MOTOR CO., INC.
