Ignition Key Light

  1. Remove the steering column lower cover.
  2. Remove the bulb/socket from the key light case by turning the socket 45°. See Fig 1 .
  3. To Install, reverse removal procedures.

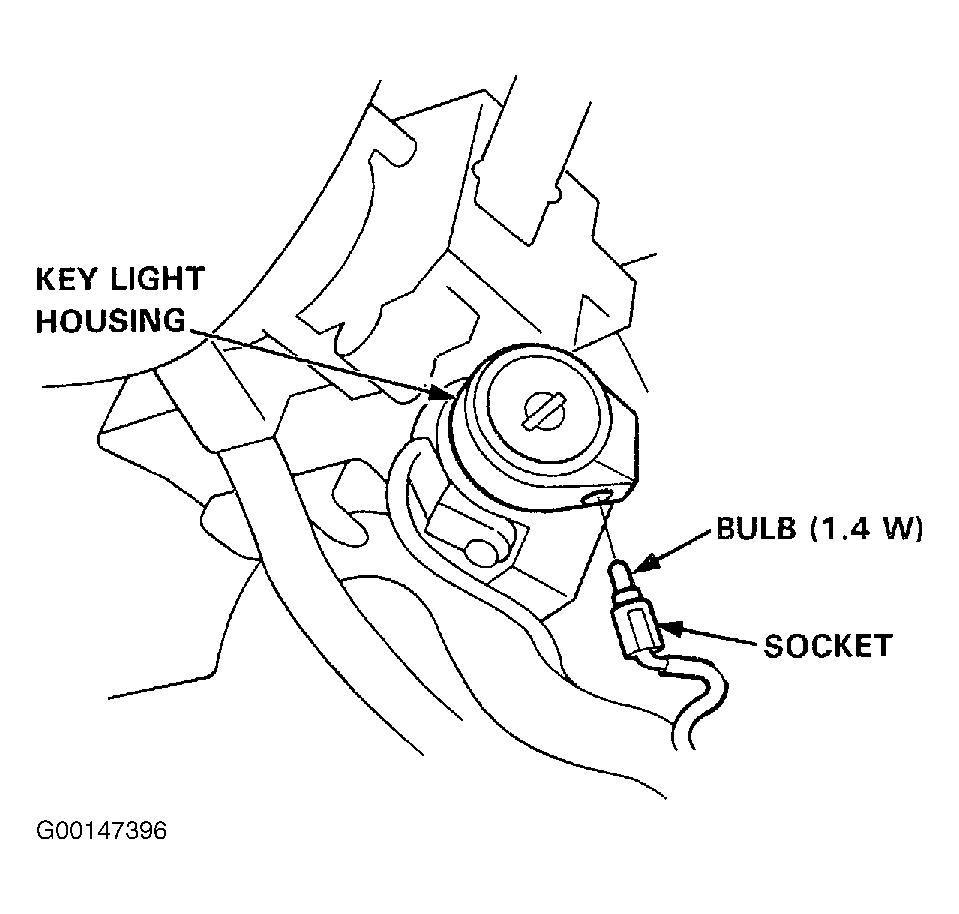

Fig 1: Removing & Installing Ignition Key Light
G00147396Courtesy of AMERICAN HONDA MOTOR CO., INC.
