Abs Self-Diagnostic Flow Charts
›
Code 1-4 Pressure Switch Circuit
Code 1-4 Pressure Switch Circuit

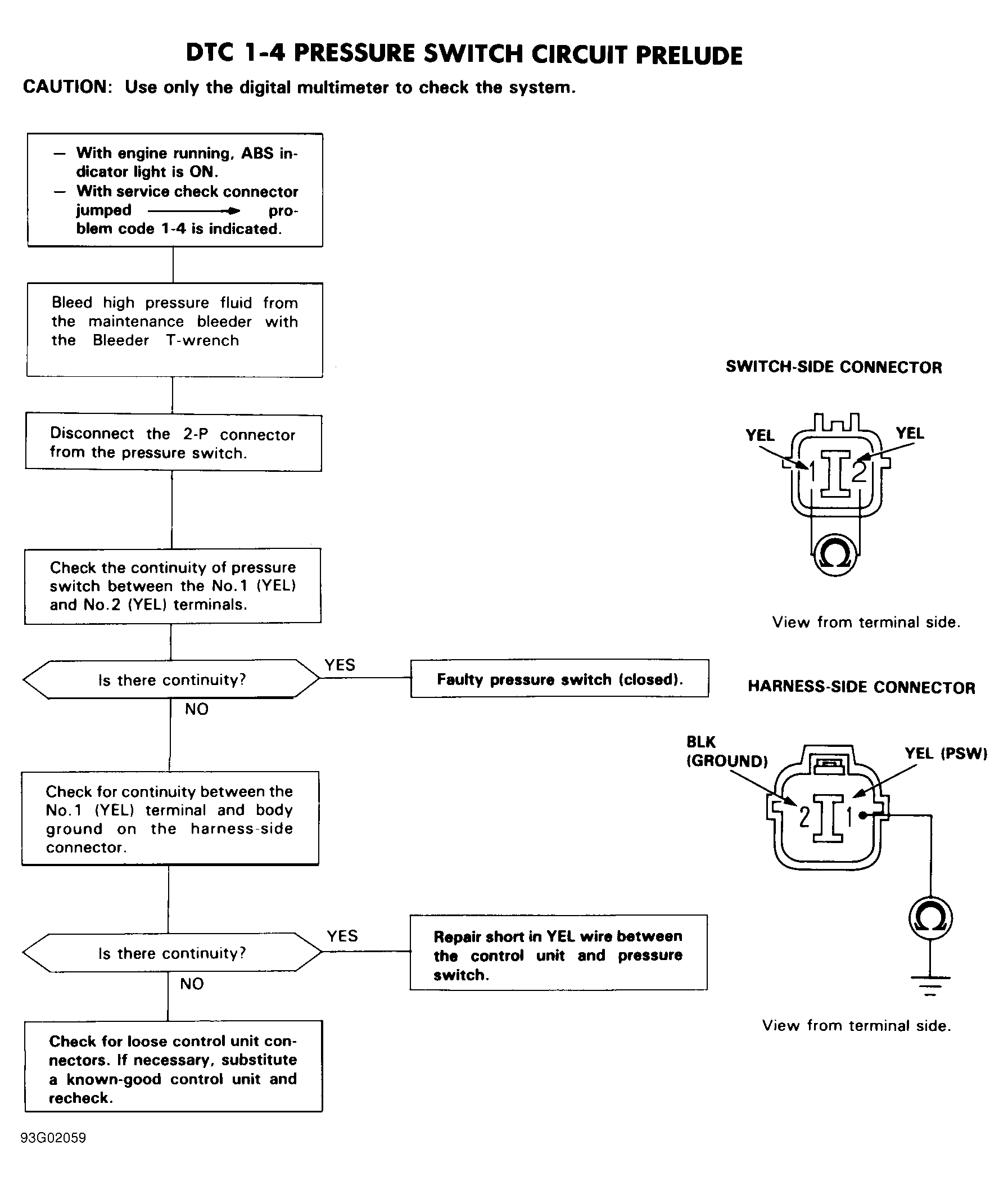

Fig 1: Code 1-4 Flow Chart, Pressure Switch Circuit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
