Retrieving Trouble Codes

Turn ignition on (without engine running). Ensure ABS warning light comes on. Start engine, and observe ABS warning light. If warning light goes out, no trouble codes exist.
If ABS warning light stays on, turn ignition off. Remove access cover on drivers-side of center console to locate 2-pin connector. See Fig 1 . Install jumper wire or service connector between pins on 2-pin connector. Turn ignition on (without engine running). Record blinking ABS warning light sequence. See Fig 2 .
After ignition is turned on, ABS warning light will turn on for one second, then pause for 2 seconds before blinking first code. First code number indicates main code and second code number indicates sub code. Three codes can be set at once. To recheck sequence, turn ignition off for a few seconds, and then turn it on again. After trouble codes have been retrieved, conduct appropriate test procedures outlined in flow charts. See ABS SELF-DIAGNOSTIC FLOW CHARTS.

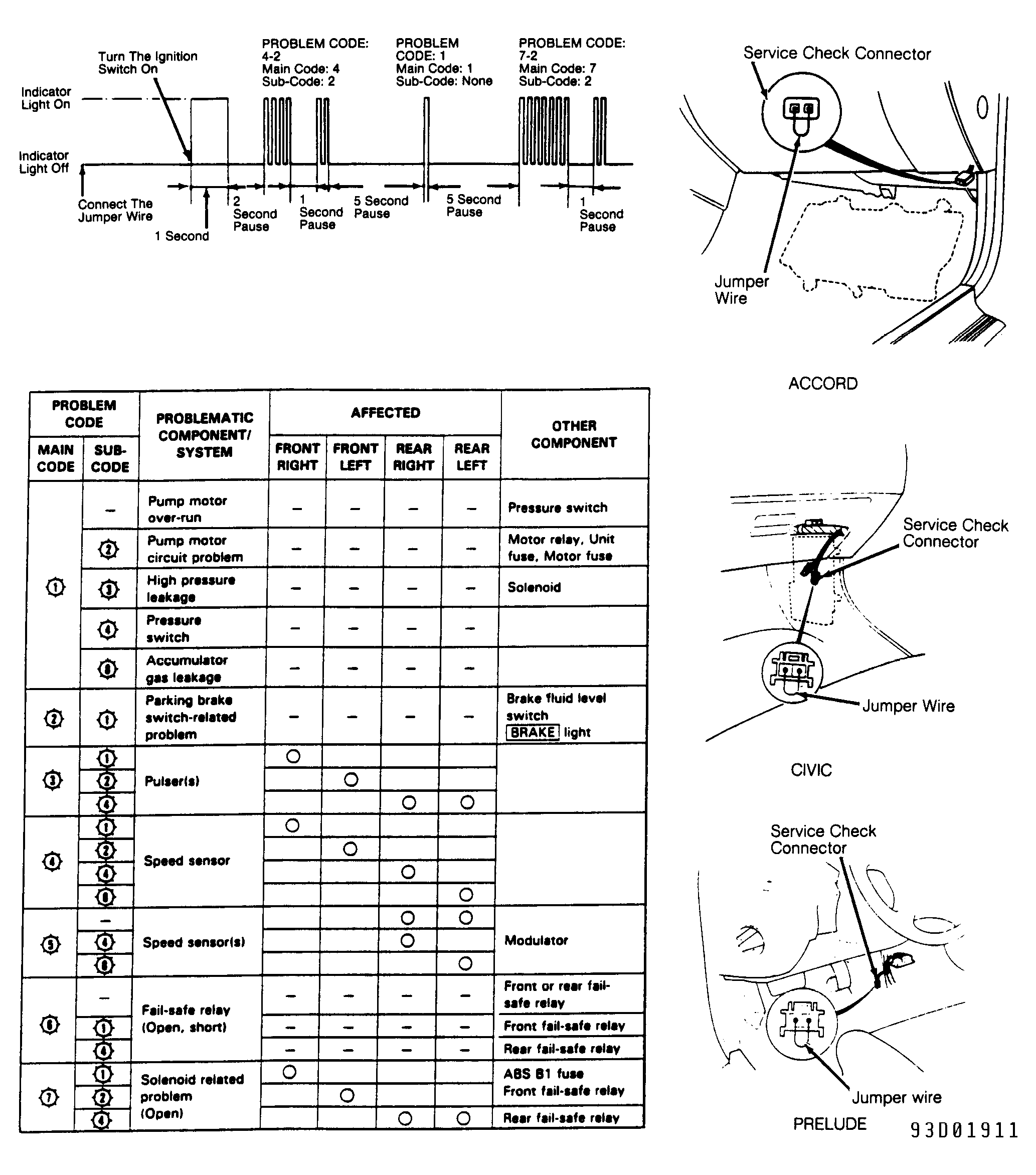

Fig 1: Identifying Service Check Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Self-Diagnostics & Trouble Code Diagnosis Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
