Code 16 - Fuel Injectors

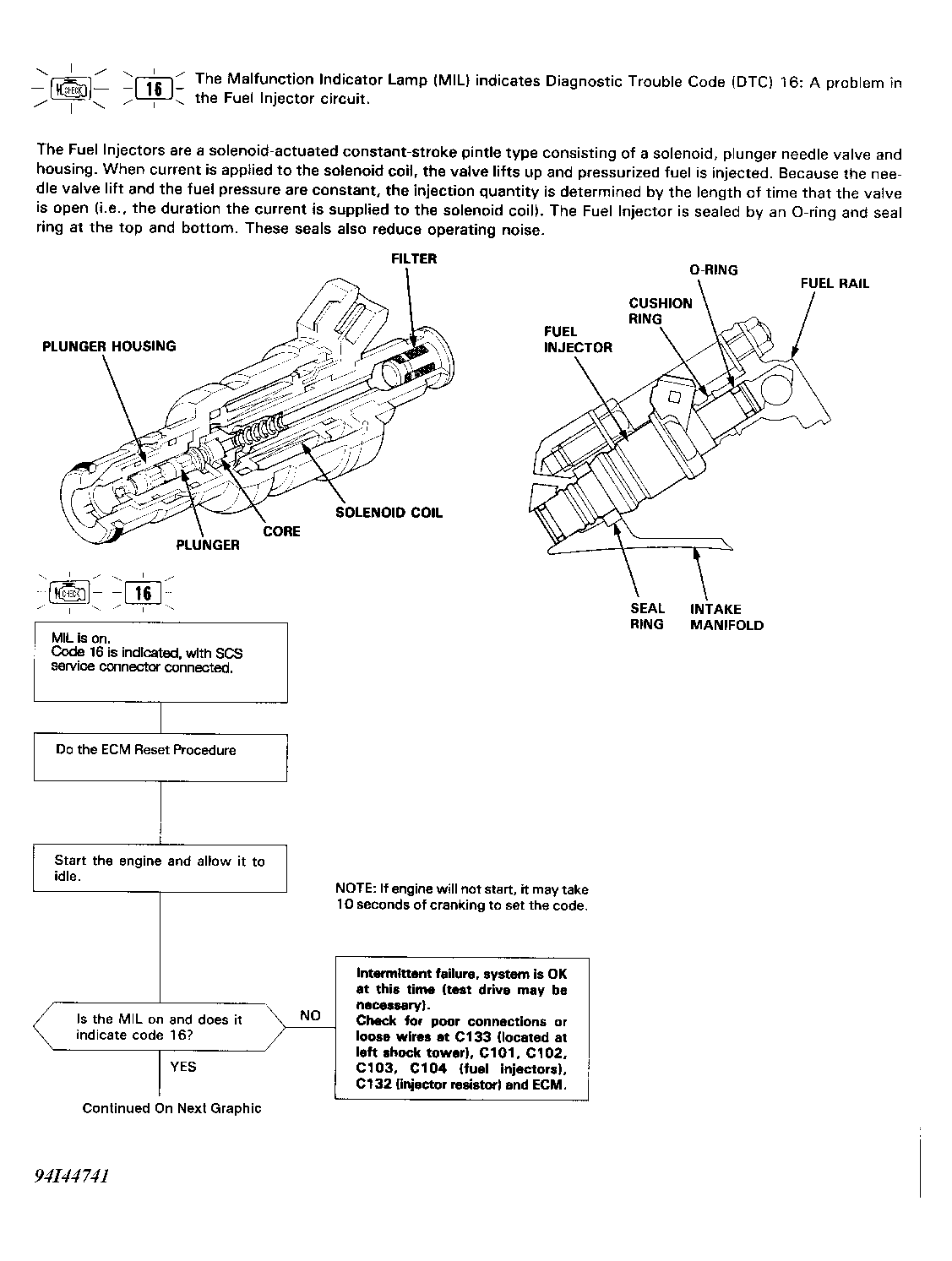

Fig 1: Code 16 Flow Chart (1 of 3) Fuel Injectors

G94I44741

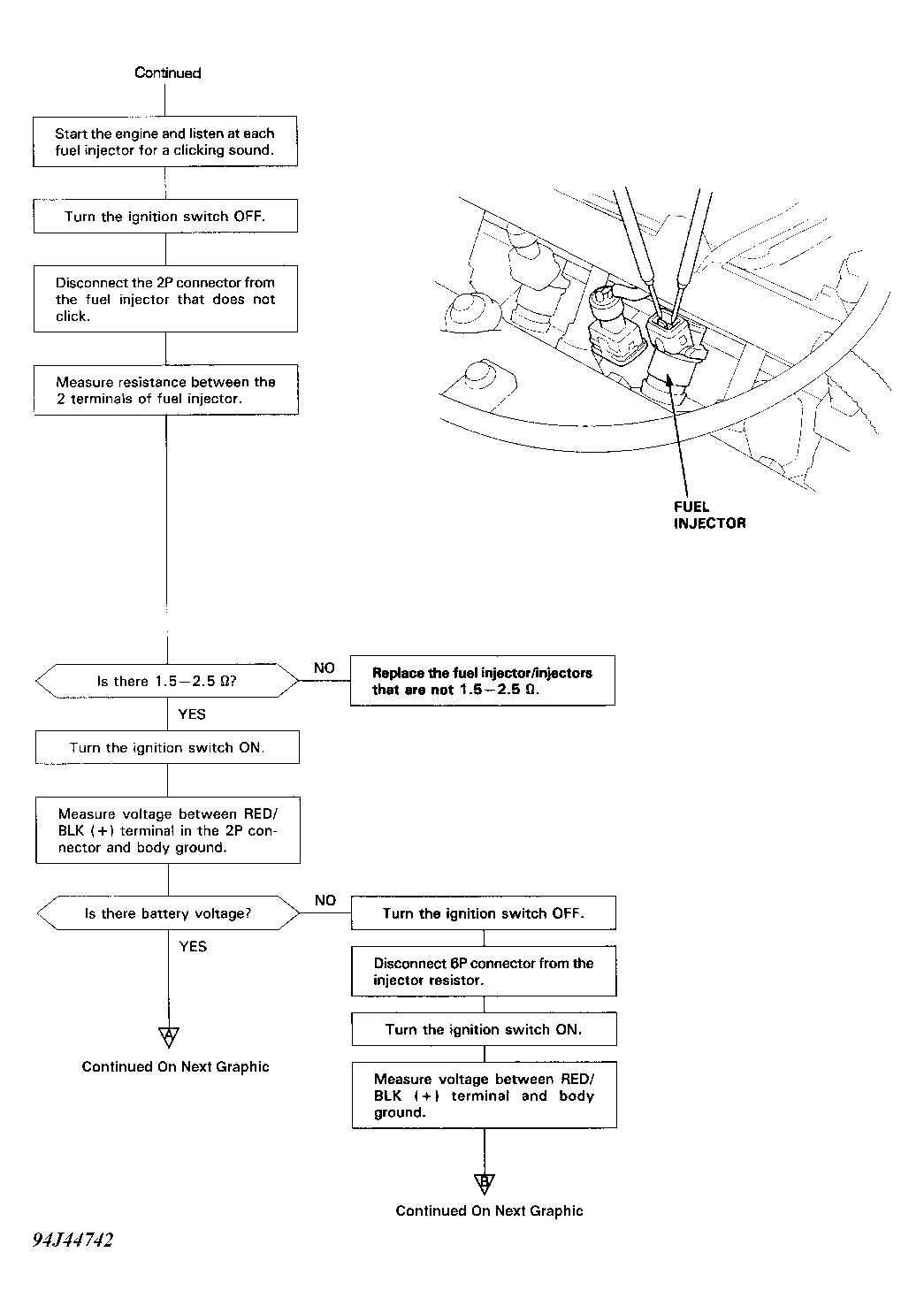

Fig 2: Code 16 Flow Chart (2 of 3) Fuel Injectors

G94J44742

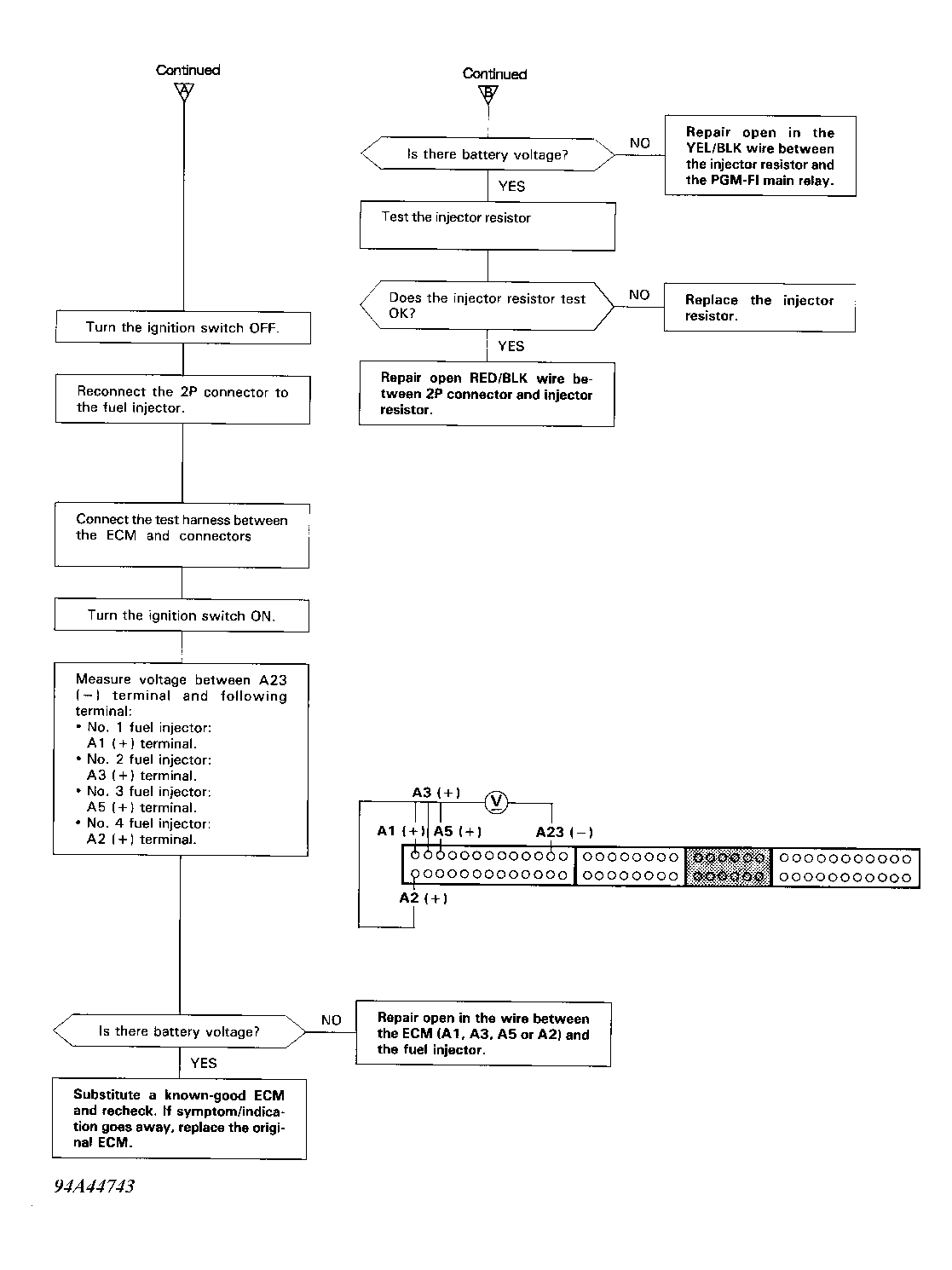

Fig 3: Code 16 Flow Chart (3 of 3) Fuel Injectors

G94A44743
