Code 22 - VTEC Pressure Switch

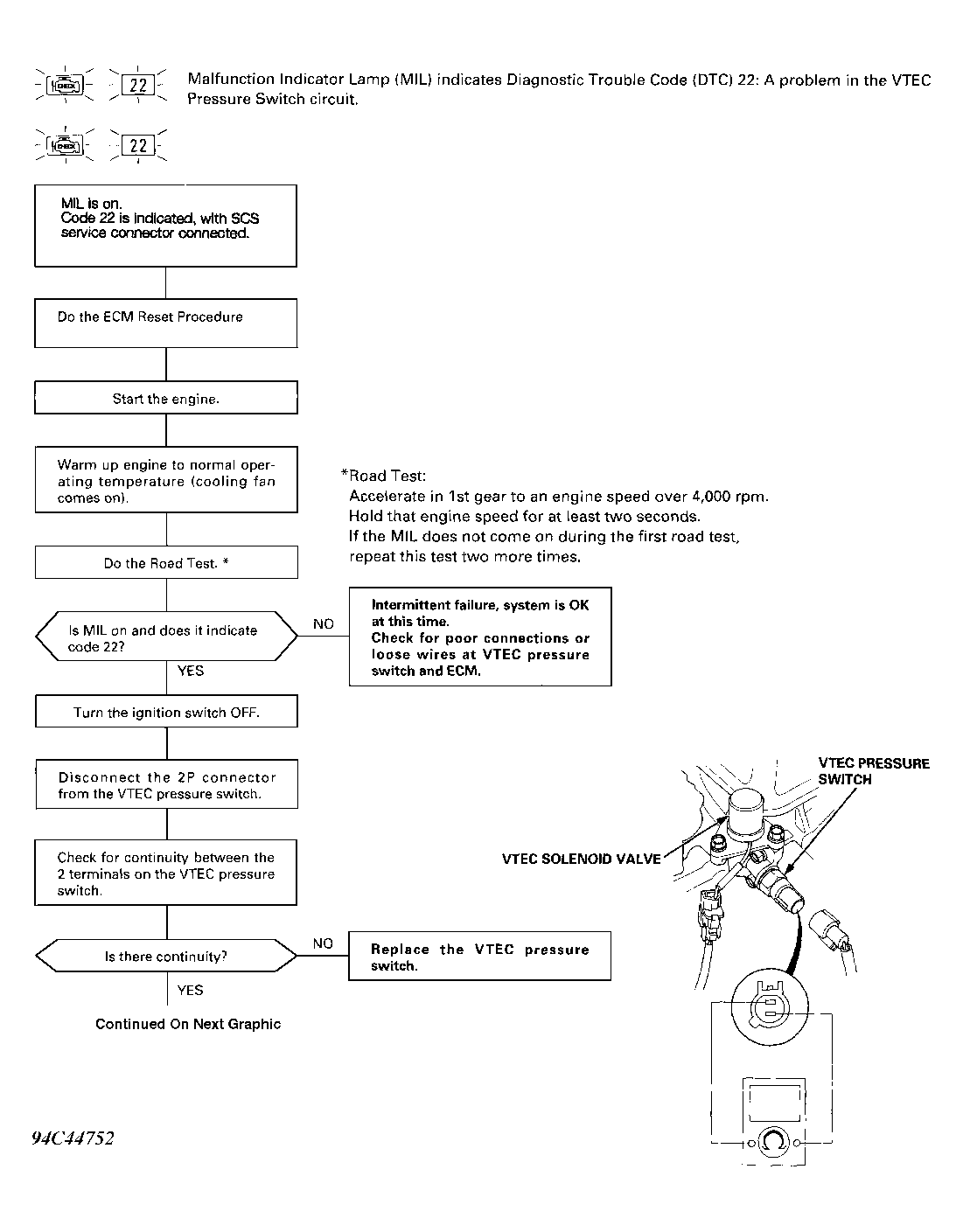

Fig 1: Code 22 Flow Chart (1 of 3) VTEC Pressure Switch

G94C44752

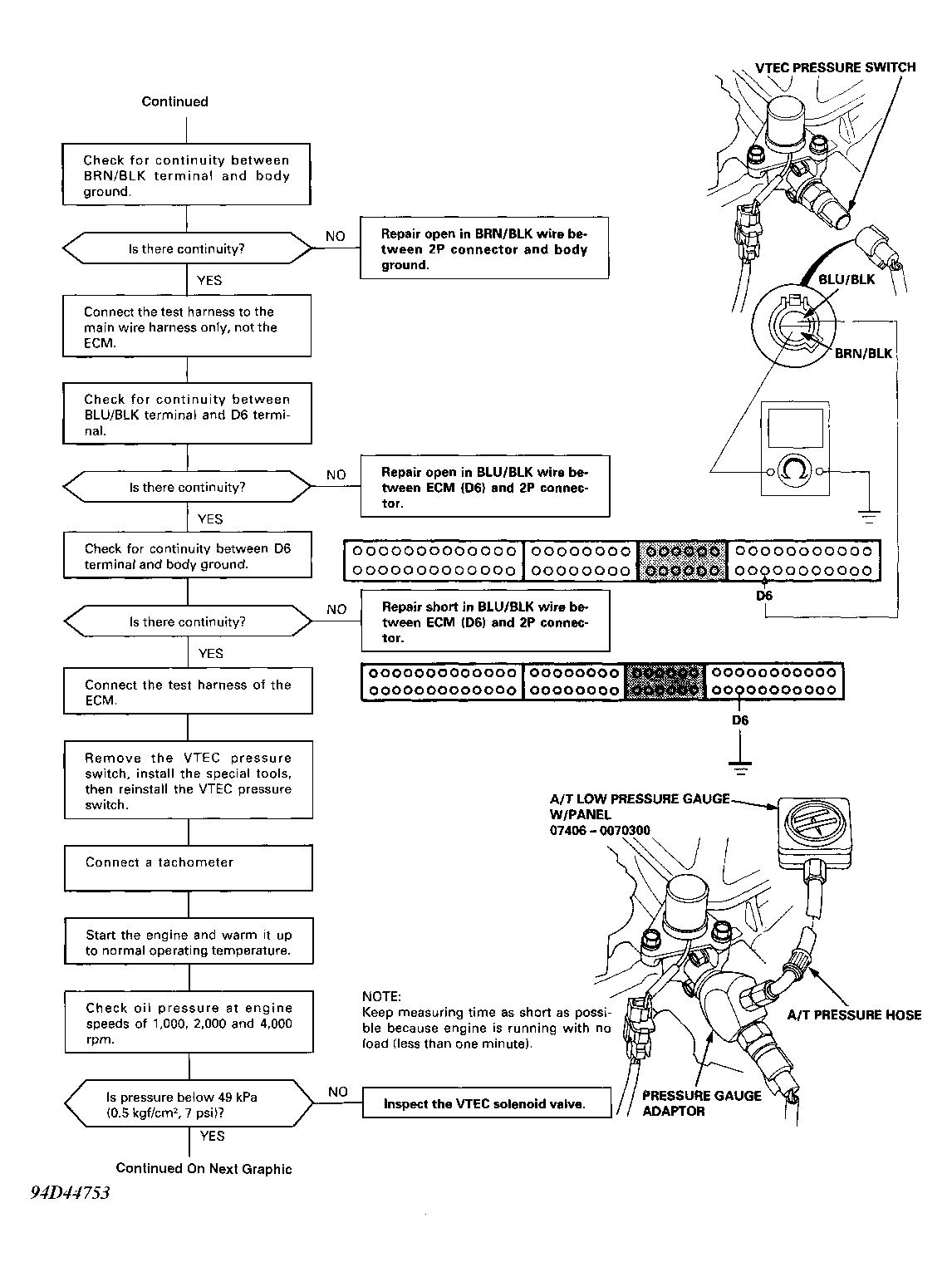

Fig 2: Code 22 Flow Chart (2 of 3) VTEC Pressure Switch

G94D44753

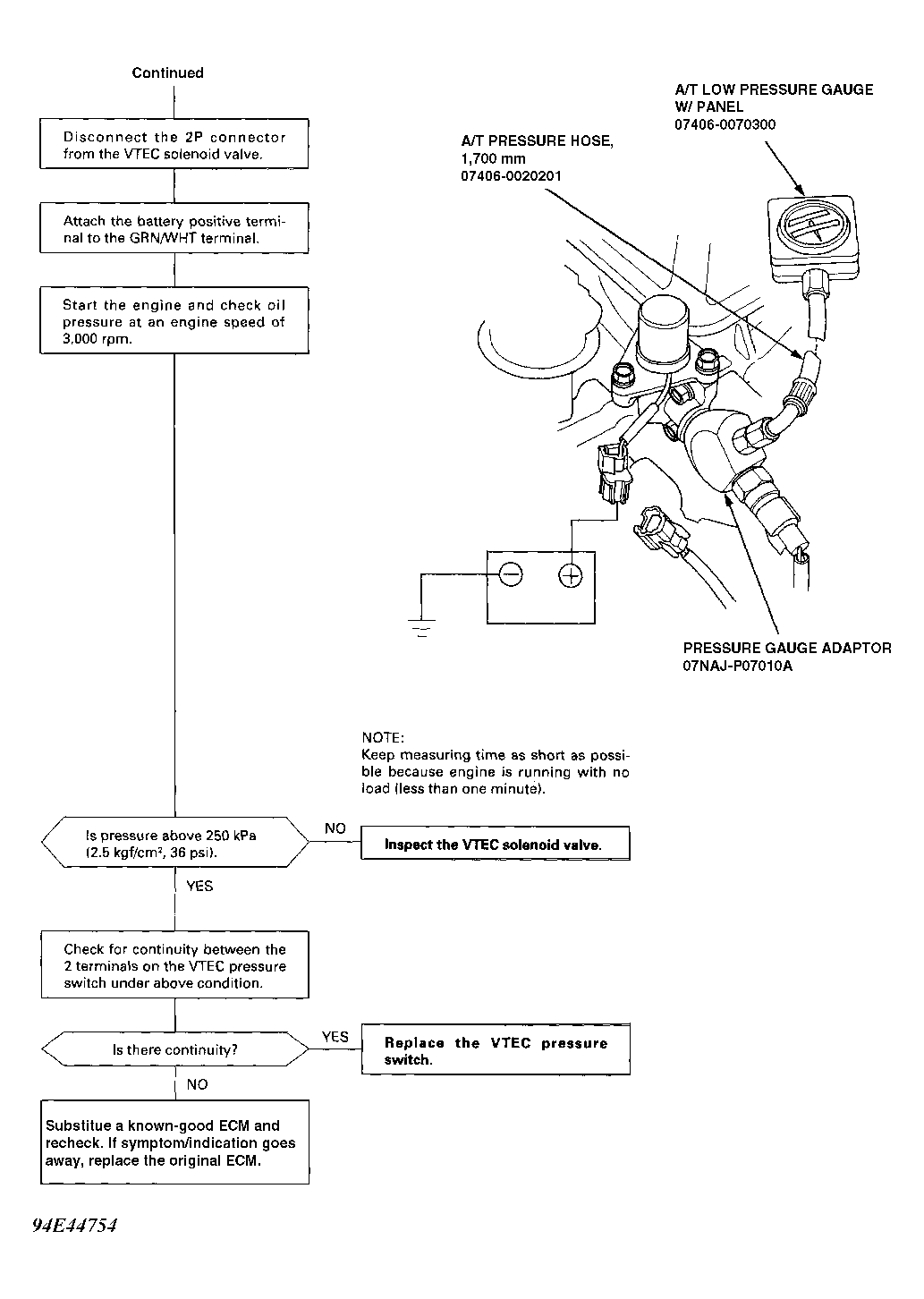

Fig 3: Code 22 Flow Chart (3 of 3) VTEC Pressure Switch

G94E44754
